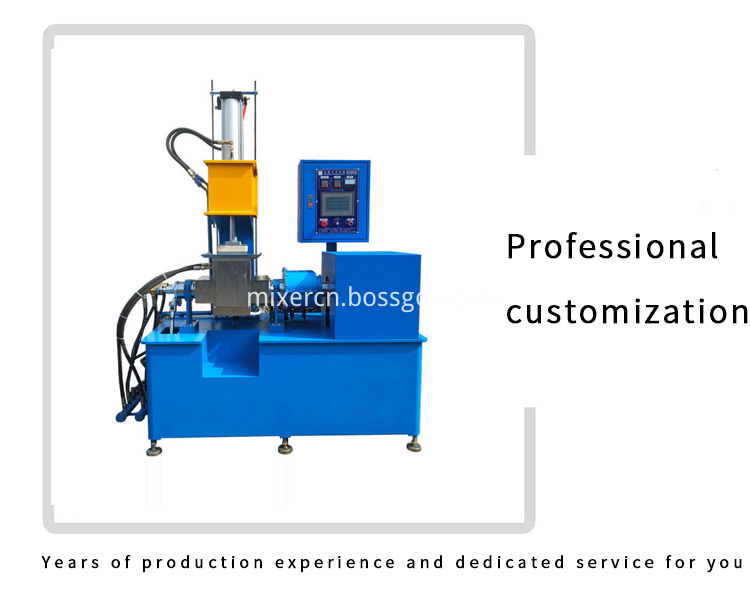

ZG-3L Laboratory Small Internal Mixer
Product application: Used for rubber molding and mixing. Mixing of chemical industrial raw materials: Mixing of various cable materials, color masterbatches, EVA, PVC, carbon black, low smoke and no barrier materials, TPR, cable heat shrink tubes, high calcium filling engineering materials, and other chemical raw materials.
2. Main motor: AC motor with a power of 7.5 kW
3. Reducer: The base and frame are made of low-carbon steel structure, with a forced lubrication circulation system;
4. Rotor: Double edged, synchronous rotor structure (can also be designed and manufactured according to the rotor structure diagram provided by the user), with a front and rear rotor speed ratio of 1:1.20 or ST synchronous rotor specific parameters can be customized according to customer needs, cast steel quenching and tempering hardening treatment, and surface hard chromium plating; The bearing is a ball shaft roller bearing; Bearing lubricating oil bath; Rotor speed: 3L: 36 rpm Specific speed can be customized according to customer needs
5. Face wall: steel structure, drilling and heating, internal surface hardening and hard chromium plating treatment;
6. Support: Steel structure, with internal surface hardened and hard chromium plated treatment;
7. Top bolt: cylinder driven, surface plated with hard chromium
8. End face seal: The sealing ring material is high wear-resistant material, self-lubricating bearing, and hinge spring pressure top seal
9. Feeding hopper: manual operation
10. Control mode: manual or semi-automatic operation; Mixer temperature: tap water - room temperature -300 ° C is the standard temperature. I have done it before, reaching a temperature of 650 ° C
Mechanical body
11. The base frame is welded with profile steel and steel plates, and processed into
12. The middle groove of the mixing chamber is made of wear-resistant alloy steel and the side wall is welded with medium carbon steel plate and processed
13. Alloy steel is used for the axis and blades of the mixing shaft
14. The bearing seat is made of ZG20 steel, and the bearing is made of roller bearings
15. Feeding device This mechanical design is a front feeding device, and the pressure can be adjusted according to the user's specified gas valve
16. The anti leakage device adopts a mechanical shaft seal at the side end of the mixing shaft for tightening, and the anti leakage structure has been awarded a certificate
The company's products not only have a high market share in the domestic market, but also in universities, colleges, laboratories and research institutes in all parts of the country, provinces, cities and towns in Chinese Mainland, Guangdong, Jiangxi, Jiangsu, Zhejiang, Shandong, Hunan, Hubei, Henan, Hebei, Sichuan, Beijing, Shanghai, Tianjin, Liaoning, Xinjiang, Taiwan, Mexico, Malaysia, Indonesia, Southeast Asia, the Middle East and other parts of the world, Our first-class products and professional manufacturing techniques have been highly praised by the vast number of new and old customers who have used our products.
Small internal mixer: 0.05L0.1L0.2L0.3L0.5L1L2L3L5L8L10L15L20L25L35L Internal mixer desktop, pressurized, flipped, open close, clutch, closed, electrically heated water cooled laboratory internal mixer, vacuum internal mixer, metal ceramic powder internal mixer, internal mixer granulator integrated machine
Small open mill: 2 inches, 3 inches, 4 inches, 6 inches, 7 inches, 8 inches, 9 inches, 10 inches, 12 inches, 14 inches, and 16 inches laboratory mixer functions include electric heating, water cooling, oil heating, integrated cooling and heating, automatic rubber flipping machine, rubber mixing machine, plastic mixing machine, and mixer
