3/8'' Food Grade Safe Beverage Beer Water Control Plastic Solenoid Valve 12V 24V 110V 220V

Food Grade Safe Solenoid Valve For Beer Beverage

This is food grade safe solenoid valve, 3/8'' female threaded right angle port, Ertalyte body, Silicone seal, 0 to 4 bar working pressure, 2 way normally closed, direct acting, various voltages for your choice, such as 12VDC, 24VDC, 110VAC and 220VAC, etc., widely used in food industries, like beer machinel, beverage machine, etc.

Product Features:

1. Working Medium: Water, Beverage, Beer, Liquid, etc
2. Working Pressure Range: 0 to 0.4 MPa
3. Medium Temperature Range: -10 to +80ºC
4. Port Size: 3/8''
5. Orifice Size: 7mm
6. Body Material: Ertalyte (Food Grade)
7. Seal Material: Silicone
8. Function: 2 Way Normally Closed
9. Operation: Direct Acting
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
11. Application Example: Beer Machine, Beverage Machine

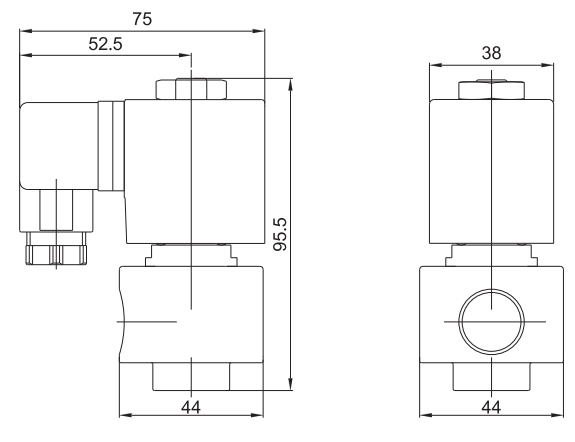

Technical Data:

Our Production:

FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of applications.

Question 2: How can you tell if your solenoid is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, orifice size, temperature, pressure, voltage, response time and certification required for your application.
