High pressure forming machine
2 year ago

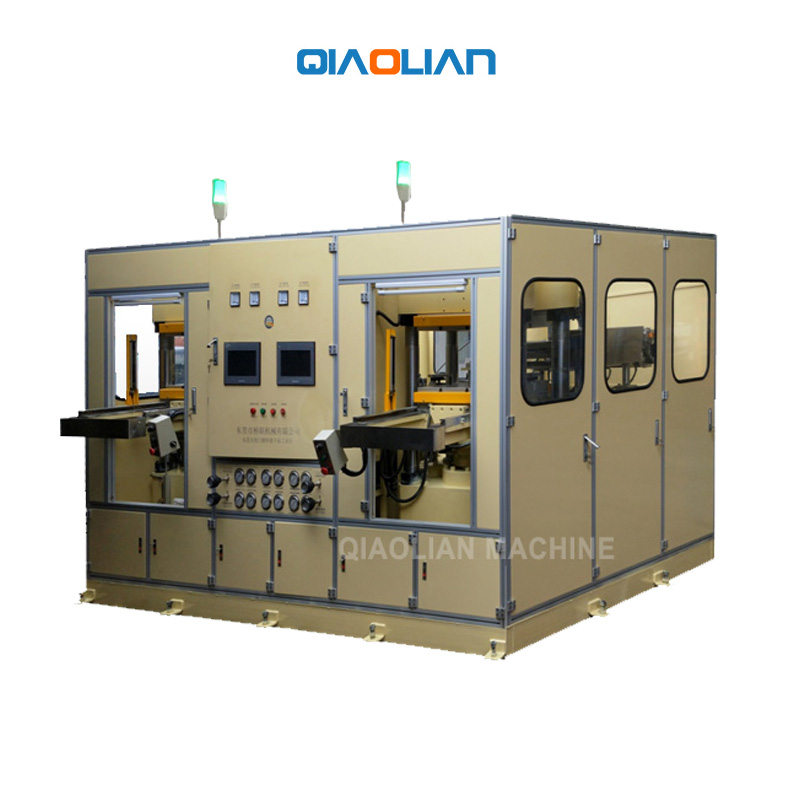

PC Sheet High Pressure Forming Machine
Vacuform Machine Applications
1. Applicable materials: Composite sheet (thin film) 3D forming field, such as PC sheet, PC+PMMA sheet, PMMA sheet, etc.
2. Scope of application: Ultra-thin electronic accessories (3D mobile phone back cover panel/panel), touch screen of electronic products, industrial nameplate/panel, 3D hollow
dashboard, electronic products windows, electronic shell, automobile touch screen and other fields.
Advantages of Vacuum Former Equipment：：
1. Control system: PLC + double touch control system;
2. Main structure: The main force-bearing structural parts are cast with ductile iron and have good rigidity.
3. Flatness: The upper and lower hot plates are hardened by nitriding, and the surface is high wear-resistant in India.
4. Baking system: The sheet heating system adopts imported IR infrared heating module, with precise automatic temperature compensation control of temperature module, and
adopts servo control to move in and out quickly and stably.
5. Air pressure: The range of pressure is 60-150 Kg/cm, which meets all kinds of complex 3D stretching
Technical parameters：
|
Type |
HMD-5656 | HNS-6060 | HNS-6565 |
| Air pressure | 60-150 Kg | 60-150 Kg | 80-300 Kg |
| Mold clamping force | 2000 KN | 2500 KN | 3000 KN |
| Table size | 560*560 MM | 600*600 MM | 650*650 MM |
| Hot plate heating power | 15 KW * 2 Set | 16 KW * 2 Set | 20 KW * 2 Set |
| IR heating power | 12.8 KW *2 Set | 12.8 KW *2 Set | 15 KW *2 Set |
| Open mold |
Up-down in/out mold/mechanical automatic mold opening |
||
| Main motor power | 7.5 KW *2 Set | 7.5 KW *2 Set | 7.5 KW *2 Set |
| Total power | 45KW | 56KW | 60KW |
| Total weight | about 9500 Kg | about 11000 Kg | about 13000 Kg |
| Equipment size | W3600*L2600*H2600MM | W3800*L2800*H2600MM | W36800*L3000*H2600MM |
*We reserve the right to change any design and specification without ontice.
