Product details

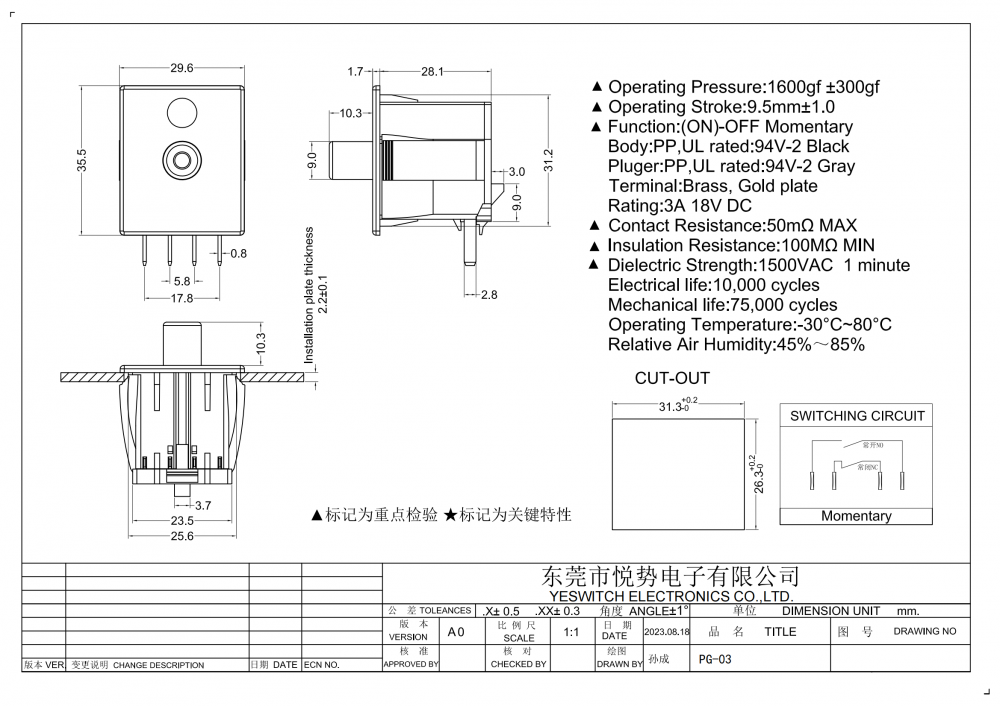

PG-03 PLUNGER SEAT SAFETY SWITCH
FOR LAWN MOWER, FORKLIF, GOLF CART, DRIVER PRESENCE ACTIVATED

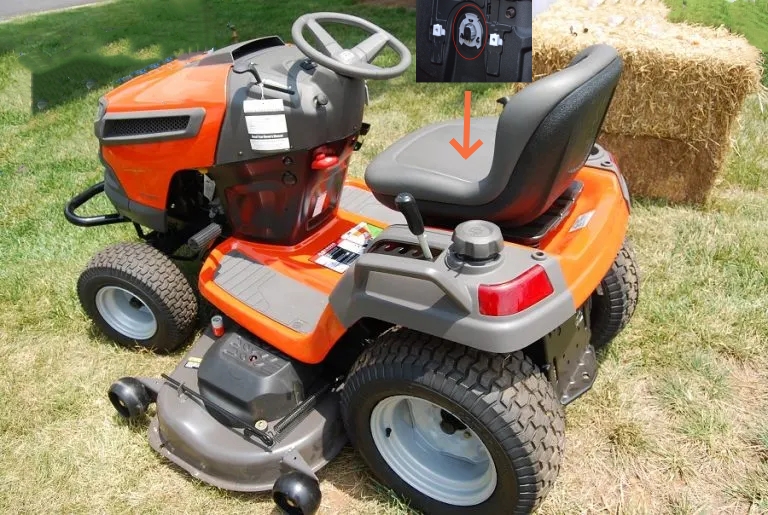

The seat switch also called push button switch is a safety device that shuts off the engine if it doesn't detect someone in the seat when the tractor starts moving.
The lawn tractor plunger seat safety switch is easy installation with superior performance and reliability.With Normally Open Normally Closed function and Double Pole terminnals,which plunger safety switch is suitable for all kind of mower switches.Plunger Seat Safety Switch For Forklift Seat

Switch Material:
Operating Pressure:1600gf±300gf
Operating Stroke:9.5mm±1.0
Function:(ON)-OFF Momentary
Body:PP,UL rated:94V-2 Black
Plunger:PP,UL rated:94V-2 Gray
Terminal:Brass,Gold plate
Rating: 5A 28V DC Riding Mower Power Switch
Contact Resistance:50mΩMAX
Insulation Resistance:100mΩMIN
Dielectric Strength:1500VAC 1 minute
Electrical life:10,000 cycles
Mechanical life:75,000 cycles
Operating Temperature:-30ºC∽80ºC
Relative Air Humidity:45%∽85%

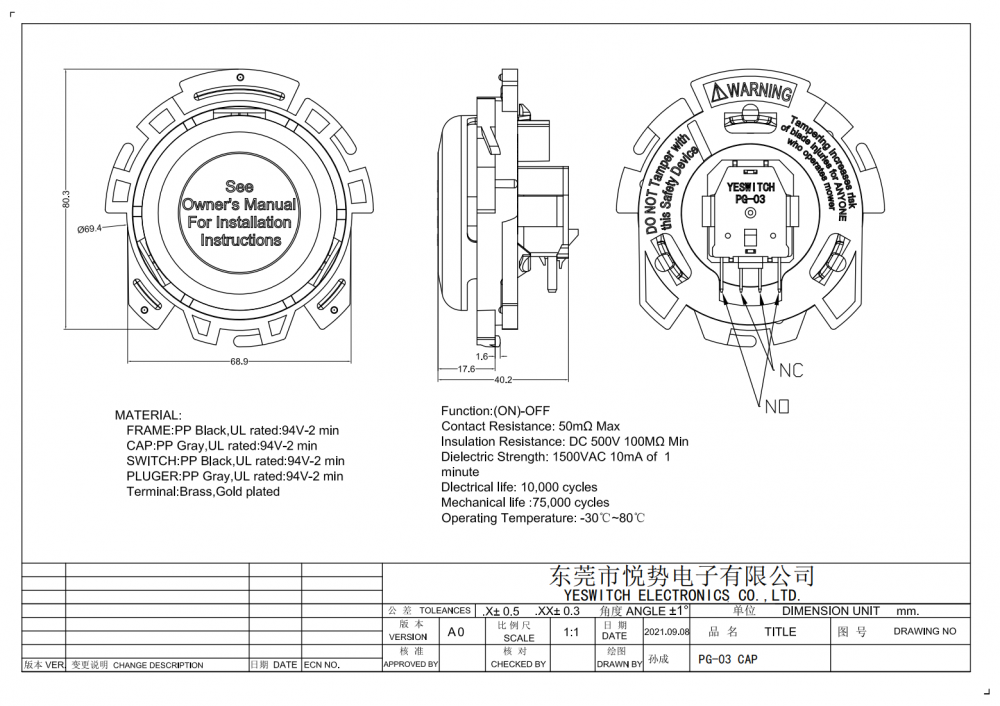

CAP MATERIAL:
FRAME:PP BlackULrated:94V-2 min
CAP:PP Black.ULrated:94V-2 min
SWITCH:PP BlackUL rated:94V-2 min
PLUGER:PP BlackUL rated:94V-2 min
Terminal:Brass,Gold plated
Function:(ON)-OFF Momentary
Contact Resistance: 50mQ Max
Insulation Resistance: DC 500V 100MQ Min
Dielectric Strength: 1500VAC 10mA of 1minute
Dlectrical life: 10,000 cvcles
Mechanical life :75.000 cycles

Operating Temperature: -30℃~80℃ Push Button Safety Switch

Pg 03 Cap
