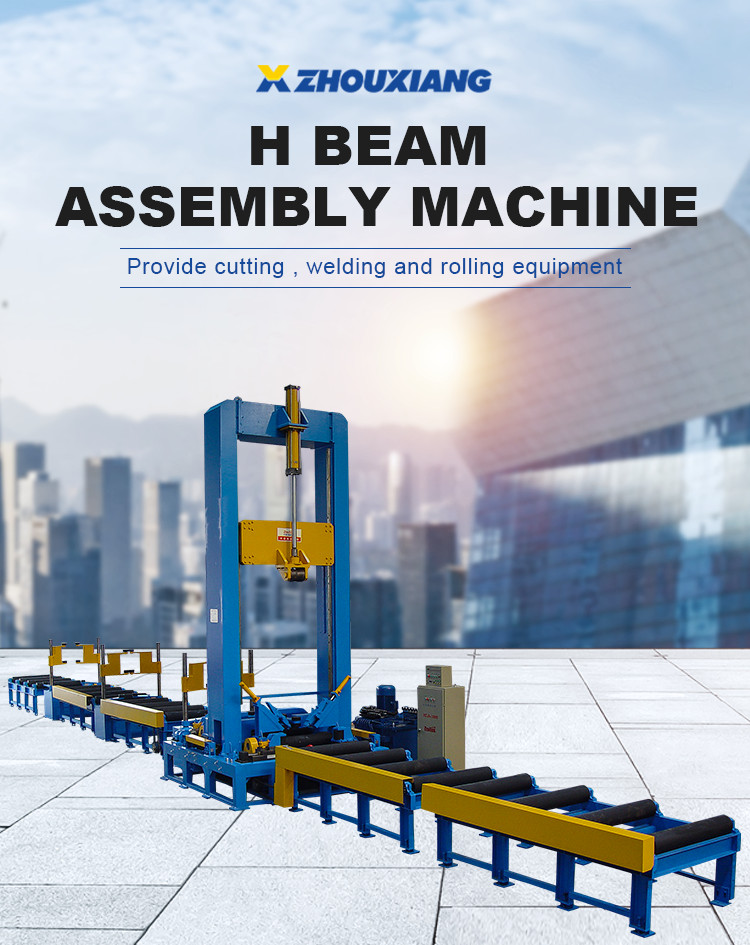

1120H-Beam Assembly machine

2 year ago

6 0 

Wuxi Zhouxiang Complete Set of Welding Equipment Co., Ltd.

3 year

Product details

Web height	200~3000mm
Web thickness	6~70mm
Flange width	200~1000mm
Flange thickness	6~80mm
Work-piece length	6000~15000mm or as user’s request
Assembly speed	0.6~6m/min
Power	Single Assembly Machine:11kW (not including welding powers) Assembly Machine matched with Heavy Duty Production Line:16.5kW (not including welding powers)
Above are our standard model, it can be designed and manufactured according to customer’s request.

Product Description

1.This heavy duty H beam assembly machine can produce H beam with larger size according to customers’requirement, the maximum size of web height can reach 3 meter.

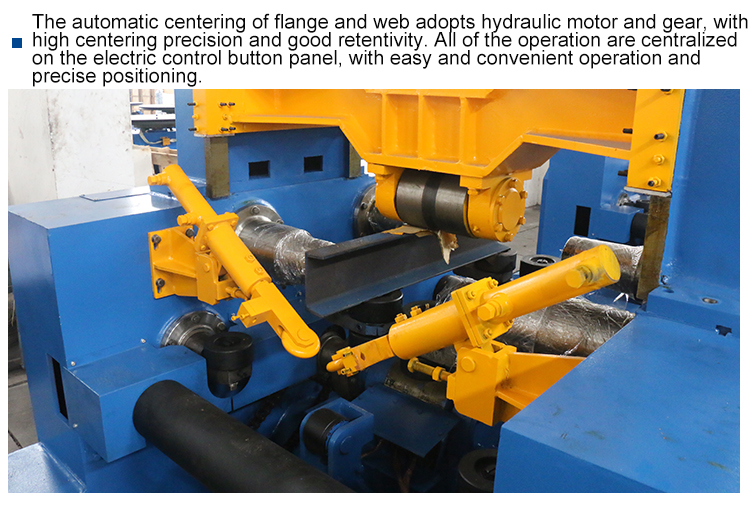

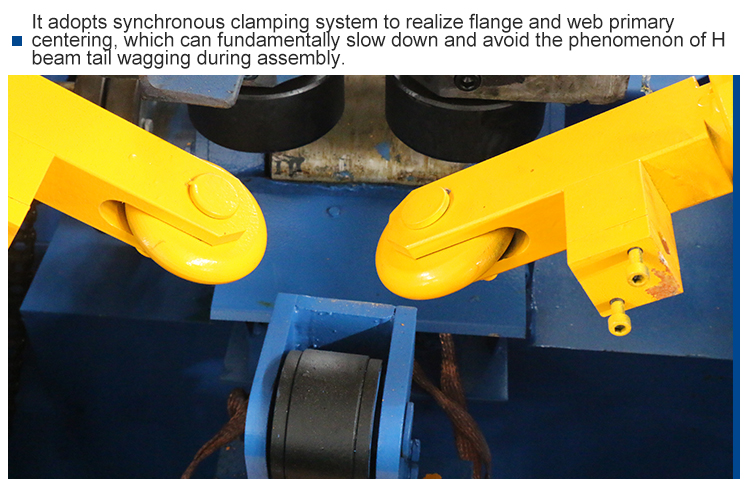

2.The automatic centering of flange and web adopts hydraulic motor and gear, with high centering precision and good retentivity.
3.This machine is equipped with auxiliary supporting device for large web.

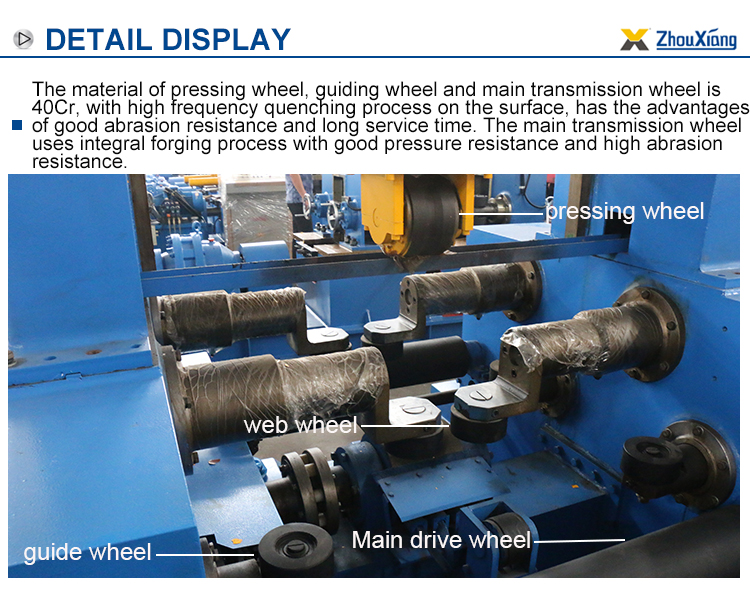

4.The material of pressing wheel, guiding wheel and main transmission wheel is 40Cr, with high frequency quenching process on the surface, has the advantages of good abrasion resistance and long service time. The main transmission wheel uses integral forging processwith good pressure resistance and high abrasion resistance.

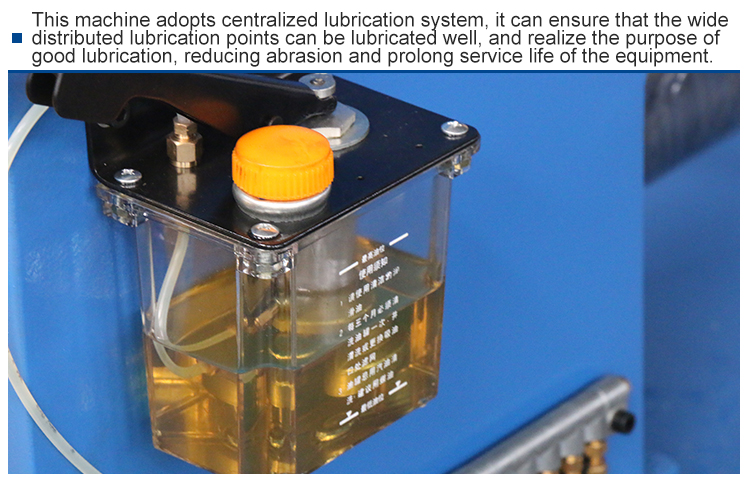

5.This machine adopts centralized lubrication system, it can ensure that the wide distributed lubrication points can be lubricated well, and realize the purpose of good lubrication, reducing abrasion and prolong service life of the equipment.
