plunger safety seat switch

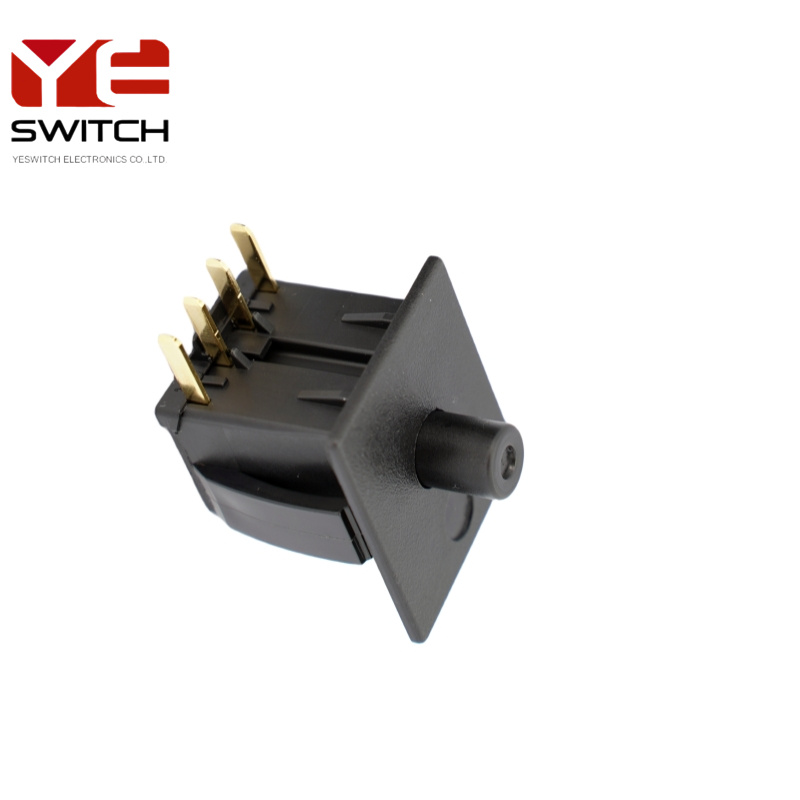

YESWITCH Plunger Seat Safety Switch PG-04 is a safety seat switch designed for riding lawn mowers, golf carts and other machinery. The embedded Interlock Plunger Safety Switch is used, which is simple and convenient to operate, not only increases the safety of the circuit, but also confirms the safety of the operator.

The Momentary Plunger Seat Switches is made of brass gold plated double extreme, PP material, which can reach 75,000 lifetime, and this plunger button opening ensures long-lasting performance. The Seat Safety Switch has a reset (ON)-OFF Normally Open/Normally Open function and can work in ~30-80°, which is a good choice for various mower seat switches.

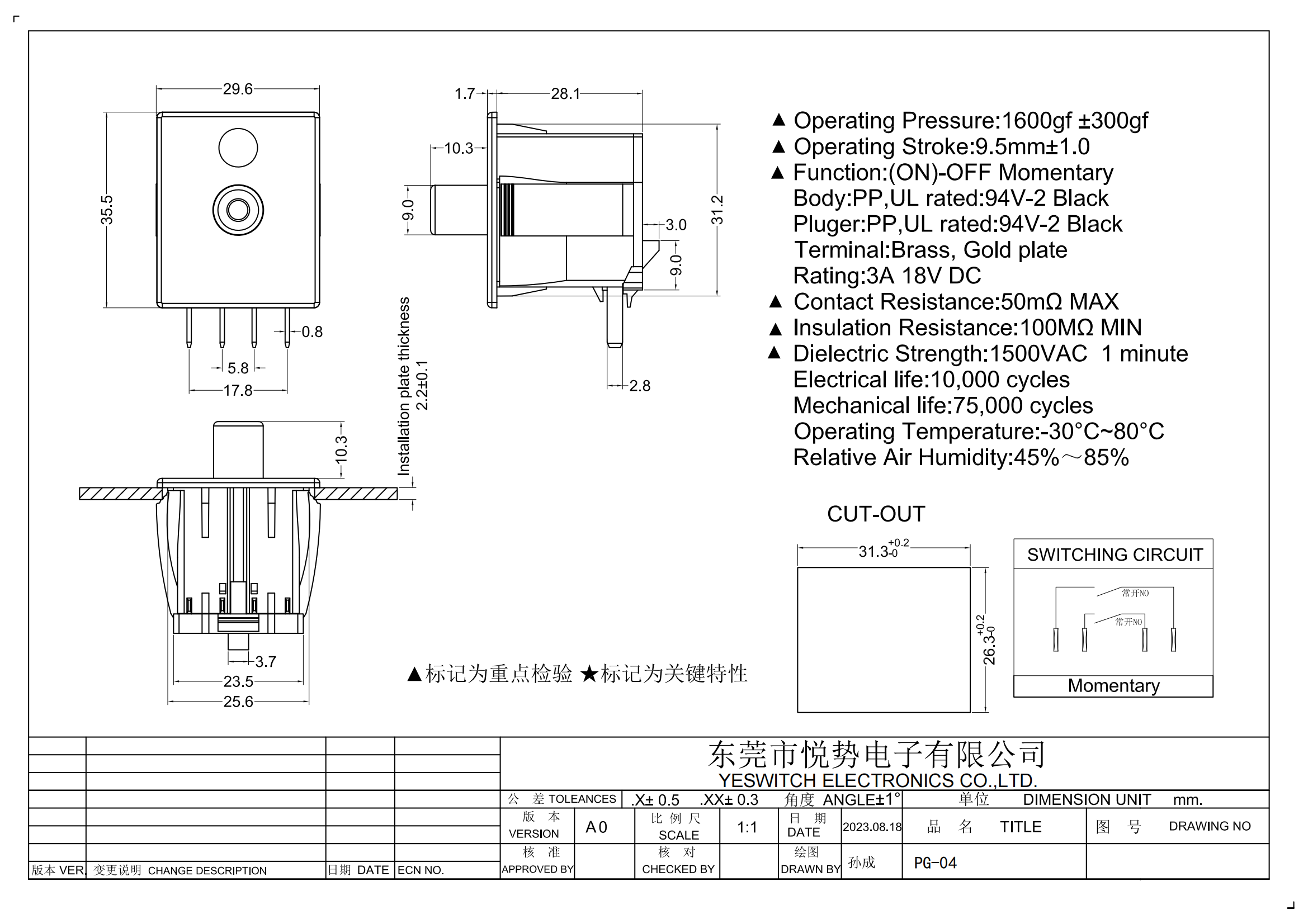

Materials- Plunger Lawn Mower Switch

• Operating Pressure：1600±300gf
• Operating Stroke:9.5±1.0mm
• Function：(ON)-OFF Momentary
• Body:PP,UL rated:94V-2 Black
• Plunger:PP,UL rated:94V-2 Black
• Terminal:Brass,Gold plate
• Rating:3A 18V DC
• Contact Resistance:50mΩMAX
• Insulation Resistance:100mΩMIN
• Dielectric Strength:1500VAC 1 minute
• Electrical life:10,000 cycles
• Mechanical life:75,000 cycles
• Operating Temperature:-30~80 Degree
• Relative Air Humidity:45%~85%

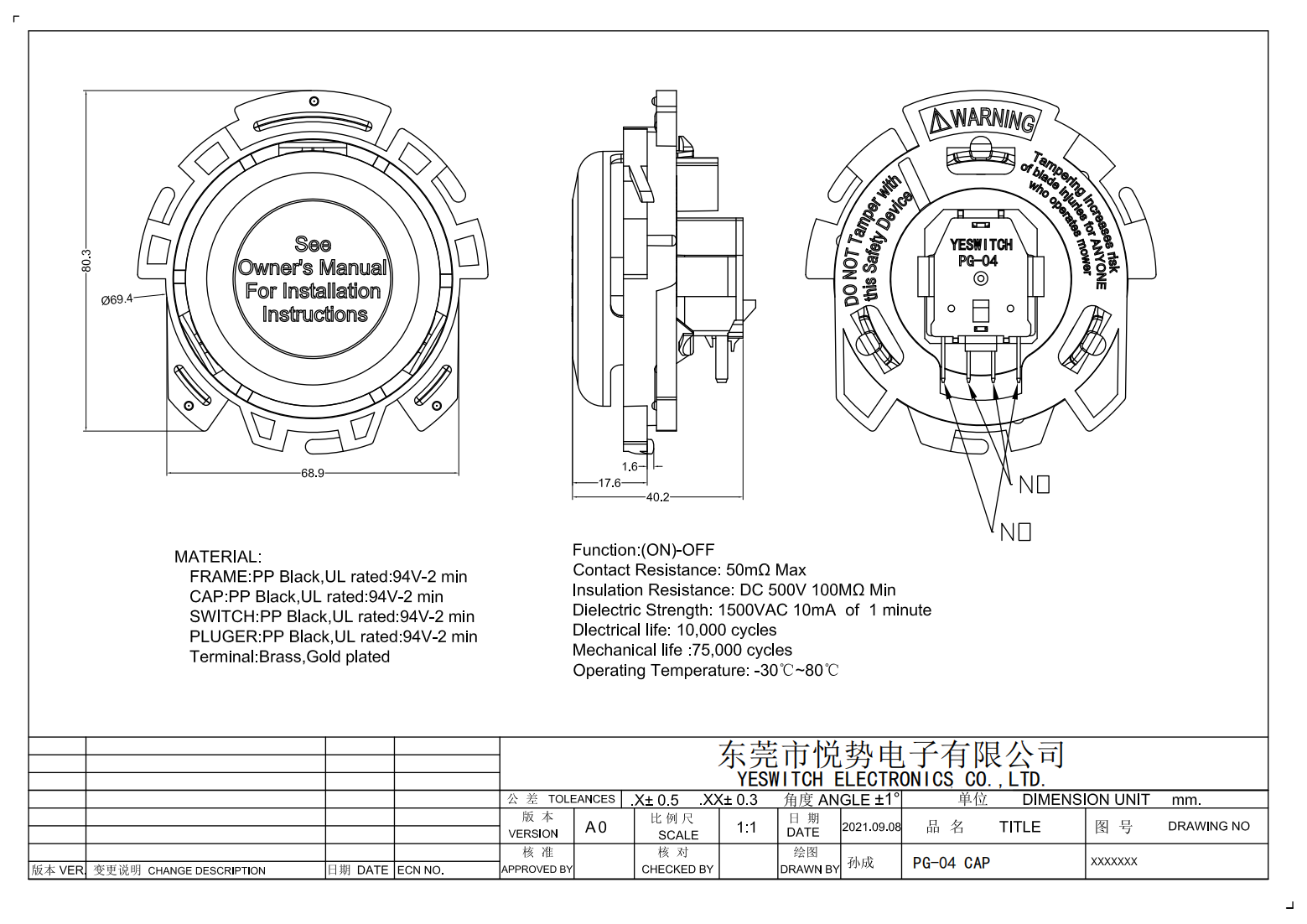

CAP MATERIAL- Safety Switch for Lawn Mower Machine

• FRAME:PP Black UL rated:94V-2 min
• CAP:PP Black UL rated:94V-2 min
• SWITCH:PP Black UL rated:94V-2 min
• PLUGER:PP Black UL rated:94V-2 min
• Terminal:Brass,Gold plated
• Function:(ON)-OFF
• Contact Resistance: 50mQ Max
• Insulation Resistance: DC 500V 100MQ Min
• Dielectric Strength: 1500VAC 10mA of 1minute
• Electrical life: 10,000 cycles
• Mechanical life :75.000 cycles
• Operating Temperature: -30~8 degree

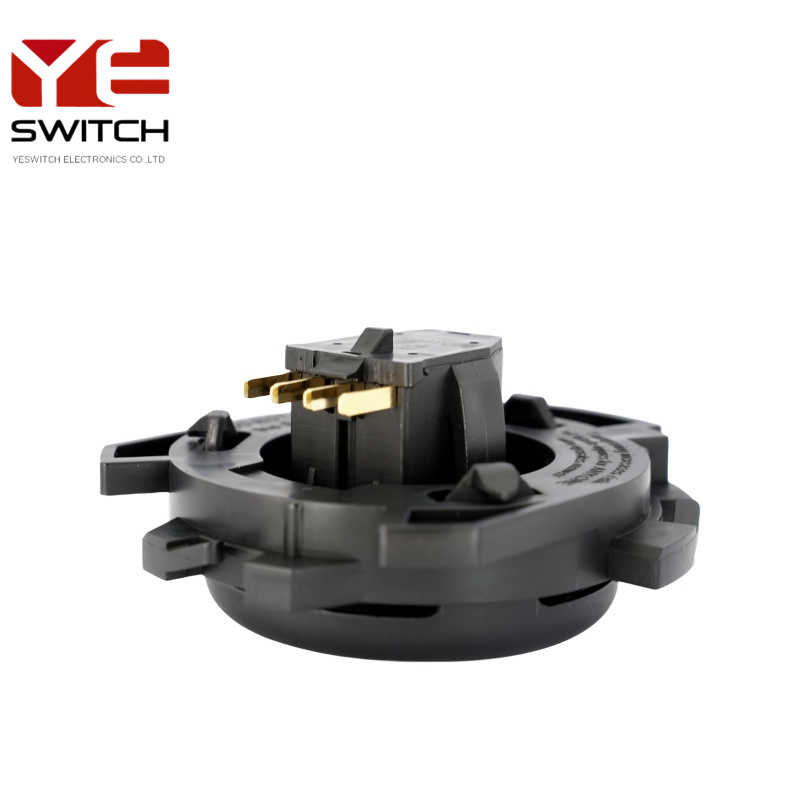

Lawn Mower Push Safety Seat Switch-1

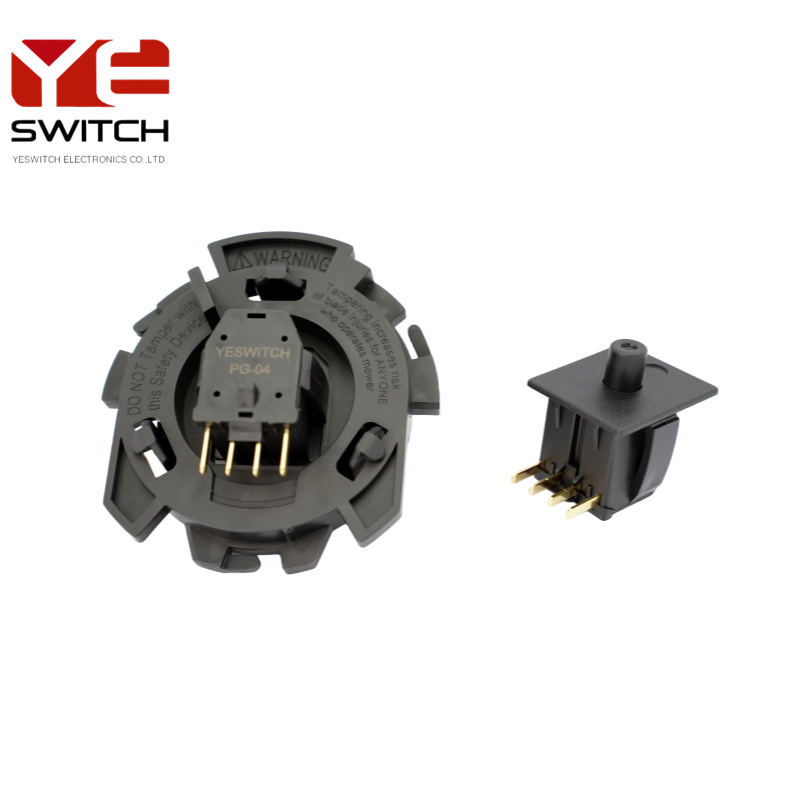

Lawn Mower Push Safety Seat Switch-2

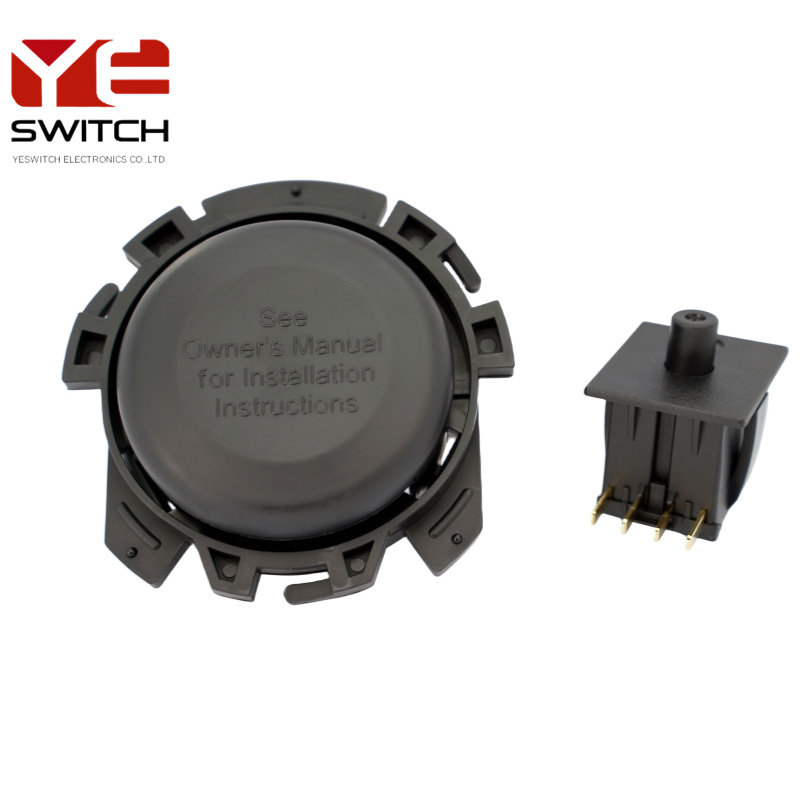

Lawn Mower Push Safety Seat Switch-3

Lawn Mower Push Safety Seat Switch-Application
