OEM slurry pump impeller
3 year ago
ZJ series Rubber Lined Slurry Pump
1.5/1B slurry pump, 1 inch rubber pump, 25ZJR mining pump, 1.5/1 B - A HR Acid Resisting Rubber Pump provides total versatility when
it comes to materials of selection, interchangeability of components and variations to extend the life of components. Wear and overall
reliability will be limited to the weakest part of the pump. OEM Rubber Slurry Pump, OEM Slurry Pump Spare Parts.
The flexible design of these Sulfuric Acid Pump units combined with the appropriate selection of material of construction ensure the
lowest operating costs. A HR rubber liners Horizontal Slurry Pump. Copper Mining Slurry Pump, Gravity Concentrator Feed Pump,
Desulphurization slurry Wear-resisting chemical centrifugal pump.
2/1.5 B-A HR slurry pump are widely used in mining, power, metallurgy, coal, dredging, building material and other industrial lines to
pump concentrate, tailing, sludge, and other abrasive high density slurries.
2/1.5 BA HR Rubber Lined Acid Resistant Slurry Pump

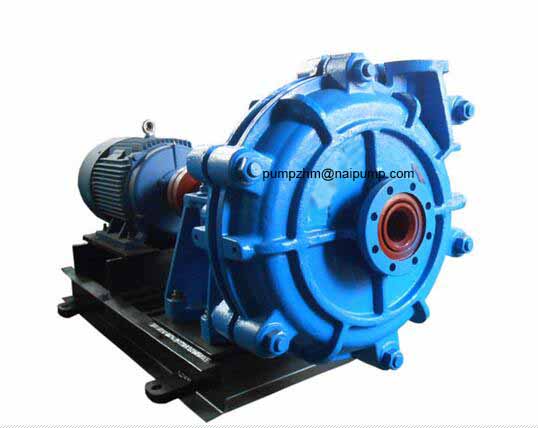

1.5 Inch Rubber Pump connected with motor with different drive style according to the motor power and pump support.
According to different drive style, the pump need different accessores. Such as V-belt, Pulley, Base Plate, Belt Cover, Gearbox and Coupling
NP-A HR Horizontal Slurry Pump performance parameters
|
Type
|
Max power (kw)
|
Capacity m3/hr
|
Head
m
|
Speed rpm
|
Max Efficiency %
|
NPSH
m
|
No. of Vanes
|
Diameter
mm
|
|
1.5/1 B-A HR
|
15
|
10.8-25.2
|
7-52
|
1400-3400
|
35
|
2-4
|
3
|
152
|
|
2/1.5 B-A HR
|
15
|
25.2-54
|
5.5-41
|
1000-2600
|
50
|
2.5-5
|
5
|
178
|
|
3/2 C-A HR
|
30
|
36-75.6
|
13-39
|
1300-2100
|
55
|
2-4
|
5
|
213
|
|
4/3 C-A HR
|
30
|
79.2-180
|
5-34.5
|
800-1800
|
59
|
3-5
|
5
|
245
|
|
6/4 D-A HR
|
60
|
144-324
|
12-45
|
800-1350
|
65
|
3-5
|
5
|
365
|
|
8/6 E-A HR
|
300
|
324-720
|
7-49
|
400-1000
|
65
|
5-10
|
5
|
510
|
|
10/8 F-A HR
|
560
|
540-1188
|
12-50
|
400-750
|
75
|
4-12
|
5
|
686
|
|
12/10 ST-A HR
|
560
|
720-1620
|
7-45
|
300-650
|
80
|
2.5-7.5
|
5
|
762
|
|
16/14 TU-A HR
|
1200
|
1200-3000
|
11-42
|
250-450
|
82
|
4-9
|
5
|
1067
|
|
20/18 TU-A HR
|
1200
|
1800-4000
|
12-44
|
200-350
|
82
|
5-10
|
5
|
1370
|
2/1.5 B-A HR Rubber Lined Acid Resistant Slurry Pump
Naipu offering Horizontal Slurry Pump wet end part material as following. Metal MA05, A07, A12, A33, A49, A61 and etc. Rubber R08,
R26, R33, NR55, S01, S21, S31, S42 and etc. Special materail: U01, EPDM, PU, CR, Hastelloy 276-C, Ferralium and etc.
Any question please contact Katherine Hou freely. katherine at naipump dot com
