Product details

Shijiazhuang Naipu Pump Co.,ltd is a slurry pump manufacturer of above 20 years' experience, inosculating design,development,manufacture ,sales and services as a whole.The company manufactures its products using advanced technique based on well built management and sales & service system.Product is guaranteed with various test and inspection facilities.

Applications:

1.For handling the most difficult higher abrasive slurries which contain too big solids to be pumped by a common pump.

2.They are suitable for delivering slurries in mining,explosive-sludge in metal melting, dredging in dredger and course of rivers and other fields.

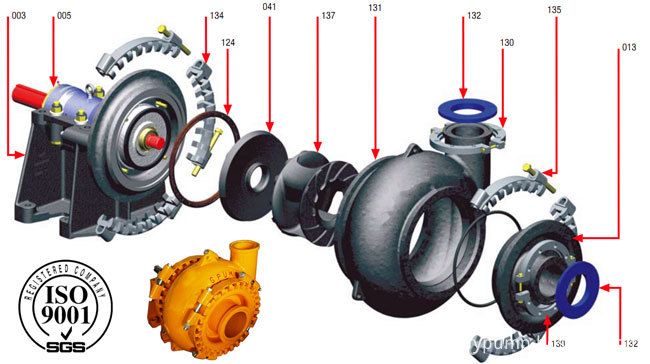

NP-G Construction Drawing--

Construction Drawing

Main Part Number At The Drawing

003:Base
005:Bearing Assembly
132:Intake Joint
Discharge Joint
130:Discharge Flange
Intake Flange
013:Cover Plate

131:Bowl
137:Impeller
041:Back Liner
135:Door Clamp Ring
134: Adapter Plate Clamp Ring
124:Volute Cover Seal

Materials of Construction

	VOLUTE	IMPELLERS	BASE	EXPELLER	EXPELLER RING	SHAFT SLEEVE	SEALS
Standard	High Chrome Alloy	High Chrome Alloy	Cast Iron	Chrome Alloy or SG Iron	Chrome Alloy or SG Iron	SG Iron	Natural Rubber
Options	SG Iron	SG Iron	Mild Steel Fabricated	SG Iron	SG Iron	EN56C Ferralium Hasteloy C Ceramic Stellite Chrome Oxide	Nordel Neoprene Viton Butyl EPDM

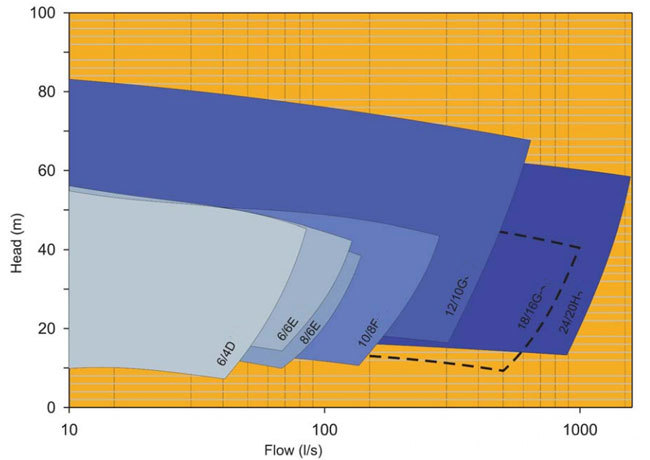

NP-G GRAVEL PUMP SELECTION CHART

Selection Chart NP-G SLURRY PUMP PERFORMANCE PARAMETERS

Model	Flow(m3/h)	Head(m)	Speed(r/min)	Efficiency(%)	NPSHr/m	Max permissible particle size/mm
6X4D-NP-G	187-36	7-51	1400-600	30-58	1.5-3.7	82
8X6E-NP-G	576-133	10-48	1400-800	60-54	1.2-4.2	127
10X8F-NP-G	930-216	11-44	940-500	65-34	3-7	178
12X10G-NP-G	1512-360	11-58	850-400	70-50	1.5-6	220
14X12G-NP-G	3168-522	9.5-66	700-300	68-60	2-8.5	241
16X14TU-NP-G	3024-900	14-45	500-300	70-50	3.5-6.5	254
10X8F-NP-GH	1091-324	19.2-56.5	800-500	72-60	1.5-5	180
12X10G-NP-GH	2232-612	28-77	700-450	73-60	1.5-8	210

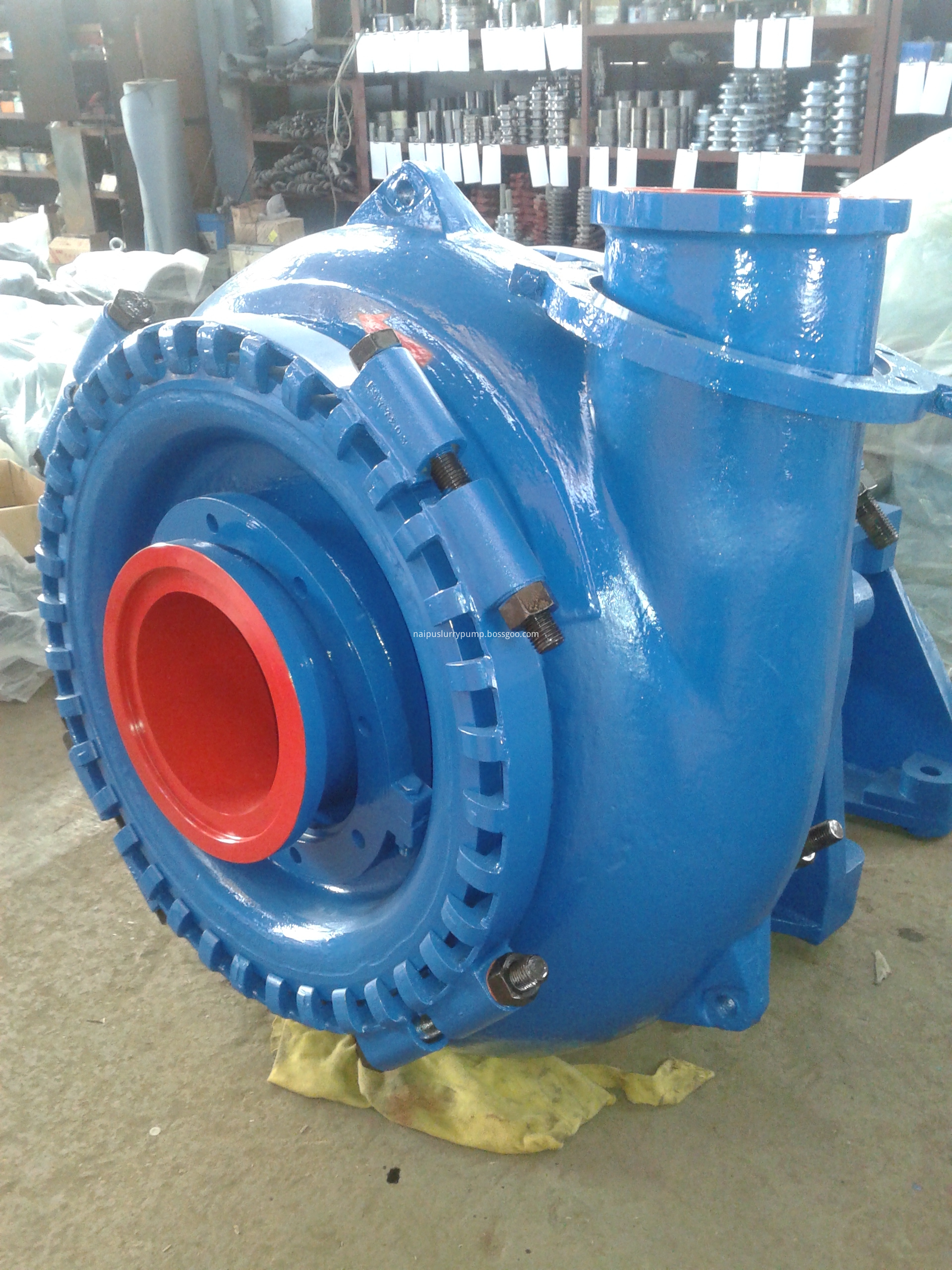

NP-G Gravel Pump Photos

Contact Details:

Anna Liu

If you have any query,please feel free to contact me freely.
