Product details

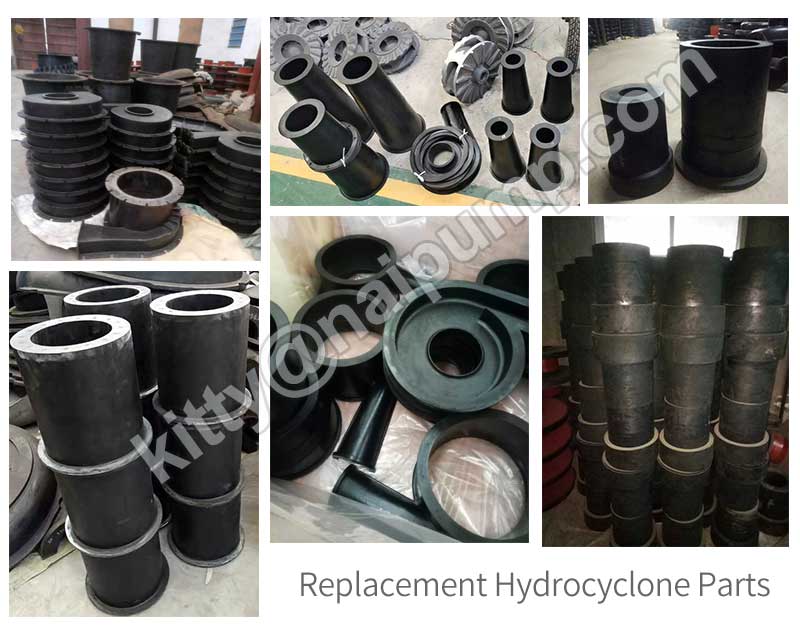

NPCVAX Rubber Lining Hydrocyclone Replacement Liner Spare Parts

We can supply some hydrocyclone replace spare parts to replace some famous brand .

The Naipump® X hydrocyclone consists of a cast housing lined with a variety of wear-resistant materials such as rubber, ceramic, polyurethane among others. The CVX is designed to provide exceptional performance together with strength and corrosion resistance. With sizes from 40mm to 1200mm diameter.

Classification and Separation (Mining)

Mine Dewatering Systems

Tailings Management

Classification and Separation (Aggregates)

Models 100, 150, 250 and 400 features

• Fibre reinforced plastic casing (FRP)

• Snap fit, replaceable elastomer liners and ceramic lining available

• Stainless steel quick release clamp fasteners

• Polyurethane or hyperchrome vortex finders

• Elastomer, urethane or ceramic spigots

• Moulded HDPE overflow pipe

• Can also be manufactured with cast metal housings

Models 500, 650, 700 and 800

•Fabricated steel or cast ductile iron casings

• Replaceable elastomer liners up to 45mm thick. Ceramic lining available.

• Elastomer vortex finders

• Elastomer or ceramic spigots

• Elastomer lined steel overflow pipe or 'Air Core Booster' cap available

Main Hydrocyclone liner parts

MODEL	NAME	PART NO.	Material
150CVAX	Liner	06018CVX	NR55
	Liner	06035CVX-41	NR55
	Cone	06004C-6	NR55
	Cone	06004C2	NR55
	Over Flow Vale	06064C17	NR55
	Over Flow Vale	06064C20	NR55
	Over Flow Vale	06064C25	NR55
	Over Flow Vale	06064C30	NR55
	Over Flow Vale	06064C35	NR55
250CVAX	Liner	10018CVX	NR55
	Liner	10035CVX73	NR55
	Liner	10035CVX61	NR55
	Cone	10004C	NR55
	Cone	06004C	NR55
	Over Flow Vale	10064C54	NR55
	Over Flow Vale	10064C59	NR55
	Over Flow Vale	10064C64	NR55
	Over Flow Vale	10064C70	NR55
400CVAX	Liner	15018CVX	NR55
	Liner	15035CVX111	NR55
	Liner	15035CVX94	NR55
	Cone	15004C	NR55
	Over Flow Vale	15064C70	NR55
	Over Flow Vale	15064C80	NR55
	Over Flow Vale	15064C90	NR55
	Over Flow Vale	15064C100	NR55
500CVAX	Liner	50018CVX	NR55
	Liner	50035CVX	NR55
	Cone	20004C	NR55
	Over Flow Vale	20064R90	NR55
	Over Flow Vale	50080CVX185	NR55
650CVAX	Over Flow Vale	65018C160	NR55
	Liner	65018CVX	NR55
	Liner	65035CVX	NR55
	Cone	65004ACVX	NR55
	Cone	6504BCVX	NR55
100CVX	Liner	06018CVX	NR55
100CVX	Liner	06035CVX-41	NR55

Npcvax Rubber Lining Hydrocyclone Replacement Liner Spare Parts

Main Pump Model:

AH HH M L Horizontal Slurry Pump:

SP Vertical slurry pump

AHF AF Horizontal and Vertical Froth pump

G Gravel Sand Pump

WS Dredging Pump

ZJQ Submersible Slurry Pump

TC DTV MCR MUR XU Series Slurry Pump

Cyclone Parts

OEM Slurry Pump Pump and Parts

Other OEM Mining Wear Parts

Any requirement of slurry pump or Pump parts ? I will send you the latest catalogue as soon as get your reply.

Welcome to contact me
