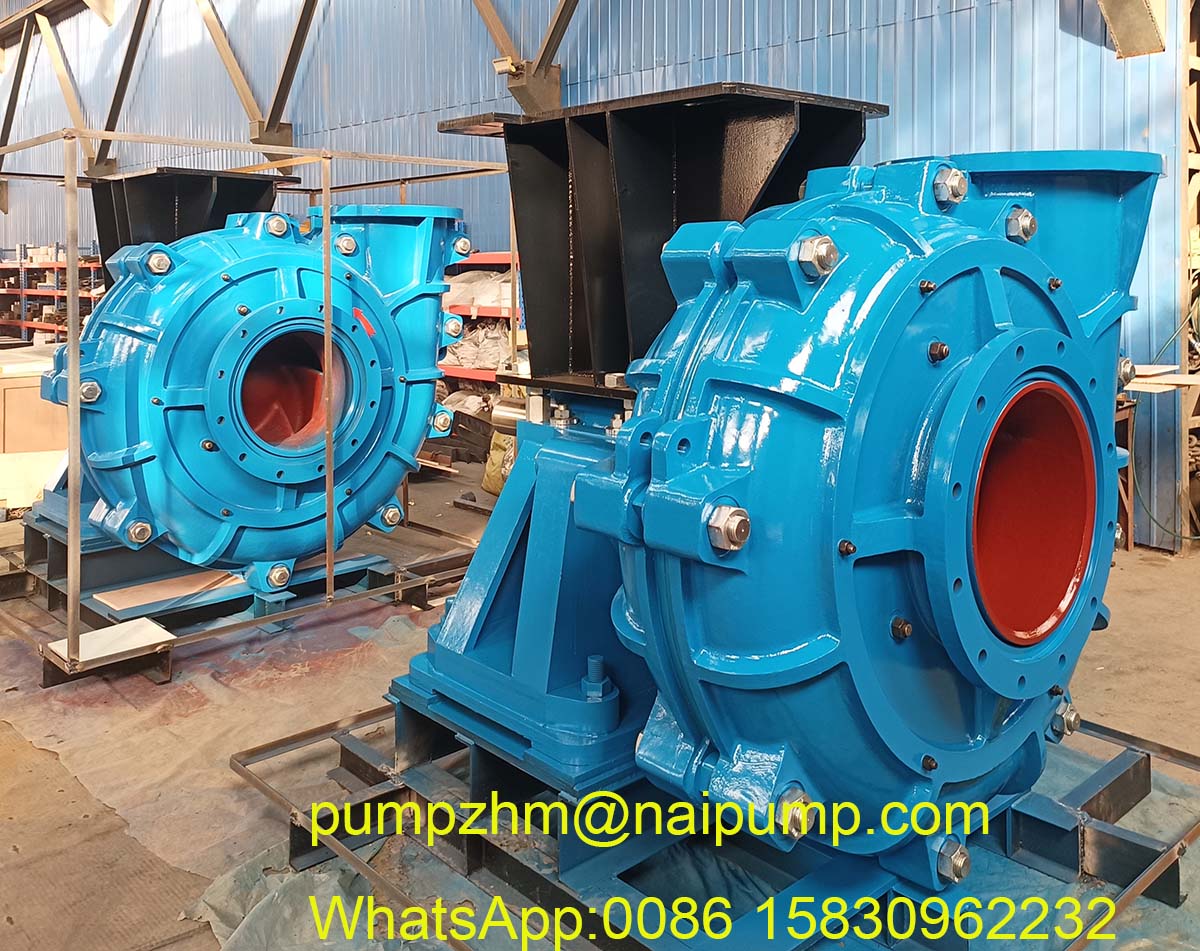

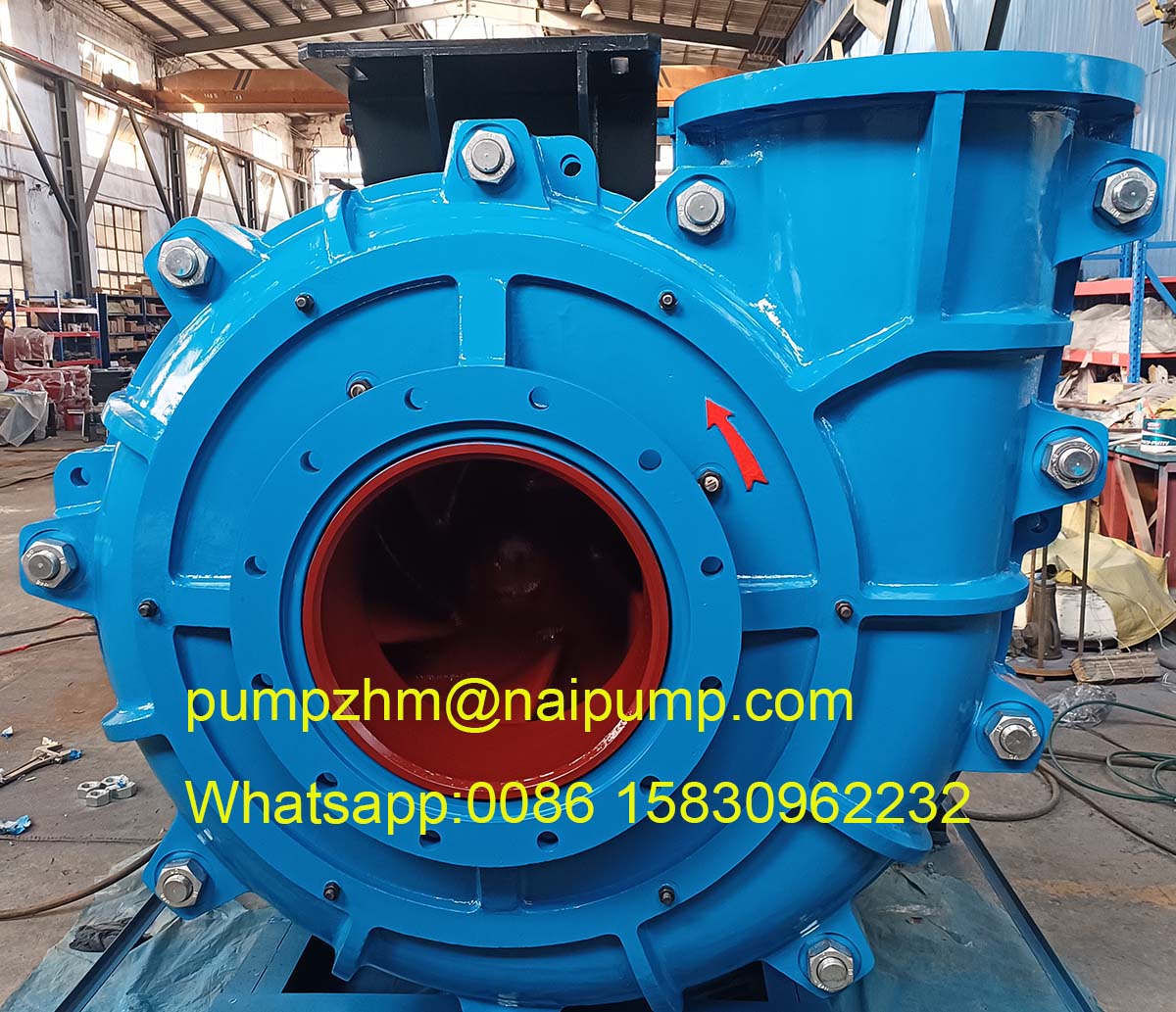

450ST-L slurry pump running test

2 year ago

54 0 

9 year

Product details

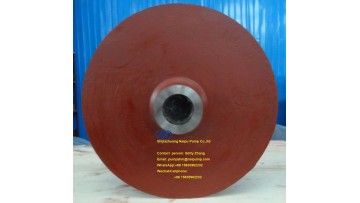

450ST-L slurry pump, Shijiazhuang Naipu Pump produce 400st-l slurry pump, 450st-l slurry pump,500ST-L slurry pump,500TU-l slurry pump with impeller of STL50147DP1A05, STL50147A05,STL45147DP1A05,STL45147A05,STL40147DP1A05,STL40147A05. Shijiazhuang Naipu produce horizontal slurry pump, vertical slurry pump, slurry pump spare parts, OEM slurry pump, high flow slurry pump, high efficiency slurry pump, mining slurry pump, rubber slurry pump, high chrome slurry pump

Large capacity slurry pump Performance Data

Model	Max.Motor Power (Kw)	Material		Clear Water Performance
		Liner	Impeller	Capacity(Q)		Head	Pump Speed	Eff.	NPSHr
		Liner	Impeller	(m3/Hr)	(L/S)	H(m)	n(r/min)	η%	(m)
20A-L-SF	7.5	M	M	2.34-10.8	0.65-3	6-37	1400-3000	39	3~5
20A-LR-SF	7.5	RU	RU	2.69-9	0.6-2.5	7-32	1600-3000	33	3~5
50B-L-SF	15	M	M	16.2-76	4.5-20	9-44	1400-2800	62	3~5
50B-LR-SF	15	RU	RU	12.6-60	3.5-17.6	6-38	1200-2600	48	3~5
75C-L-SF	30	M	M	18-151	5-42	4-45	900-2400	57	3~6
75C-LR-SF	30	RU	RU	25-144	7-40	9-43	1000-2200	60	3~5
100D-L-SF	60	M	M	50-252	14-70	7-46	800-1800	60	2~3.5
100D-LR-SF	60	RU	RU	61-252	17-70	8-38	800-1600	65	2~5
150E-L-SF	120	M	M	115-486	32-135	12-51.5	800-1500	65	2~6
150E-LR-SF	120	RU	RU	137-486	38-135	10-36.5	800-1300	65	2.5~5.5
200E-L-SF	120	M	M	446-1325	124-368	14-63	600-1100	73	3~14
200E-LR-SF	120	RU	RU	277-1088	27-322	11-43	500-900	79	3~10
250F-L-SF	260	M	M	468-1386	130-385	9-47	500-1000	73	3~10
250F-LR-SF	260	RU	RU	522-1278	140-355	10-39	500-900	73	5~10
300S-L-SF	560	M	M	468-2538	130-705	8-60	400-950	79	2~10
300S-LR-SF	560	RU	RU	432-1900	120-528	7-41	400-800	81	3~8
350S-L-SF	560	M	M	650-2800	180-780	10-59	400-840	81	3~10
350S-LR-SF	560	RU	RU	720-2844	200-790	10-41	400-700	86	3~7
400ST-LR-SF	560	RU	RU	756-3312	210-920	7-37.5	300-600	85	2~8
400ST-L-SF	560	M	M	720-3312	200-920	7-51	300-700	80	2~10
450ST-LR-SF	560	RU	RU	1080-4356	300-1210	9-40	300-550	87	3~10
450ST-L-SF	560	M	M	1008-4356	280-1210	9-48	300-600	80	2~9
500T-L-SF	1200	M	M	1440-5580	400-1550	8-51	250-550	86	3~10
500T-LR-SF	1200	RU	RU	1152-5112	320-1420	8-42	250-500	87	3~10
550TU-L-SF	1200	M	M	1980-7920	560-2220	10-50	250-475	86	4~10
550TU-LR-SF	1200	RU	RU	2160-6660	600-1850	13-43	250-425	88	3~10
650TU-L-SF	1200	M	M	3600-10260	1000-2850	10-57	200-425	86	4~10
650TU-LR-SF	1200	RU	RU	2520-9108	700-2530	10-39	200-350	86	2~8
1.Recommend50%Q'≤Q≤110%Q',(Q '≈Capacity at Max.eff.point) 50%Q'≤Q≤110%Q' We have the pump station to test the pump
