plunger safety seat switch
3 year ago
With its easy installation and superior performance, the plunger safety switch is suitable for all kinds of mower switches. The riding mower safety switch features a double pole terminal and a normally open and normally closed function, making it versatile and compatible with various applications.
The riding mower switch is made of high-quality materials for durability and safety. The body is constructed with UL-rated PP material in black, while the plunger is made of gray UL-rated PP material. The mower plunger safety switch terminal is made of brass with a gold plate for optimal conductivity.
With a rating of 3A 18V DC, the seat safety switch provides reliable and efficient operation. It has a low contact resistance of 50mΩ max and a high insulation resistance of 100mΩ min, ensuring excellent electrical performance. The lawn mower switch also has a dielectric strength of 1500VAC for 1 minute, providing added safety.
The PG-03 push button seat switch has a long electrical life of 10,000 cycles and a mechanical life of 75,000 cycles, ensuring its longevity and reliability. It can withstand a wide operating temperature range from -30ºC to 80ºC and is designed to operate in relative air humidity conditions of 45% to 85%.

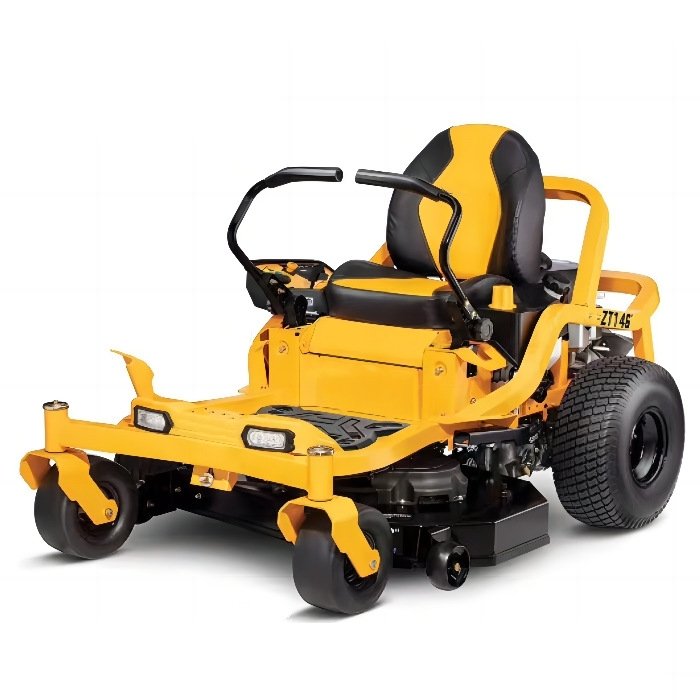

Trust Yeswitch Electronics Co., Ltd., a reputable company specializing in safety switches, to provide you with the highest quality products. The PG-03 mower seat safety switch is a must-have for anyone looking to enhance the safety of their lawn mower, forklift, or golf cart.

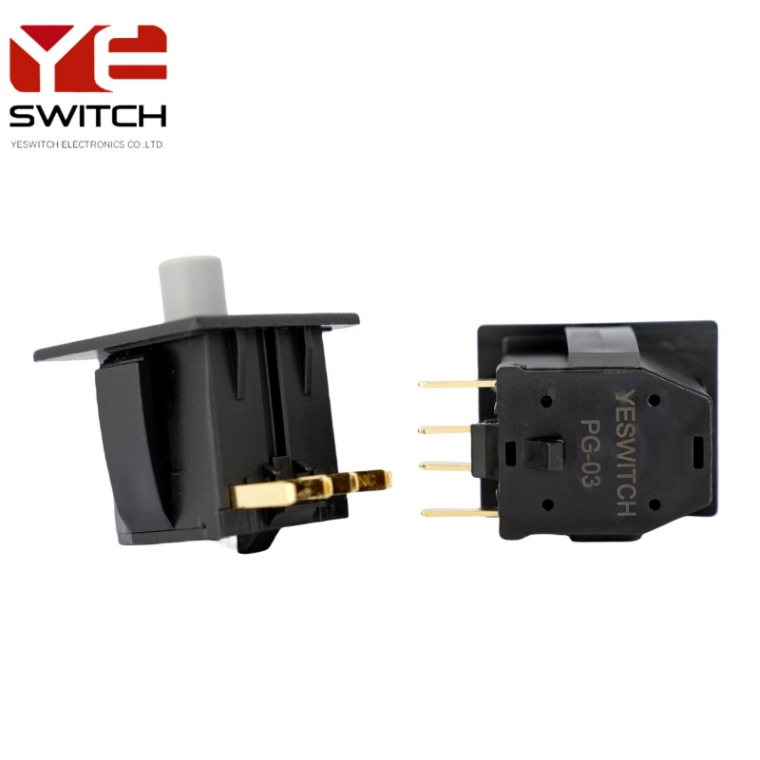

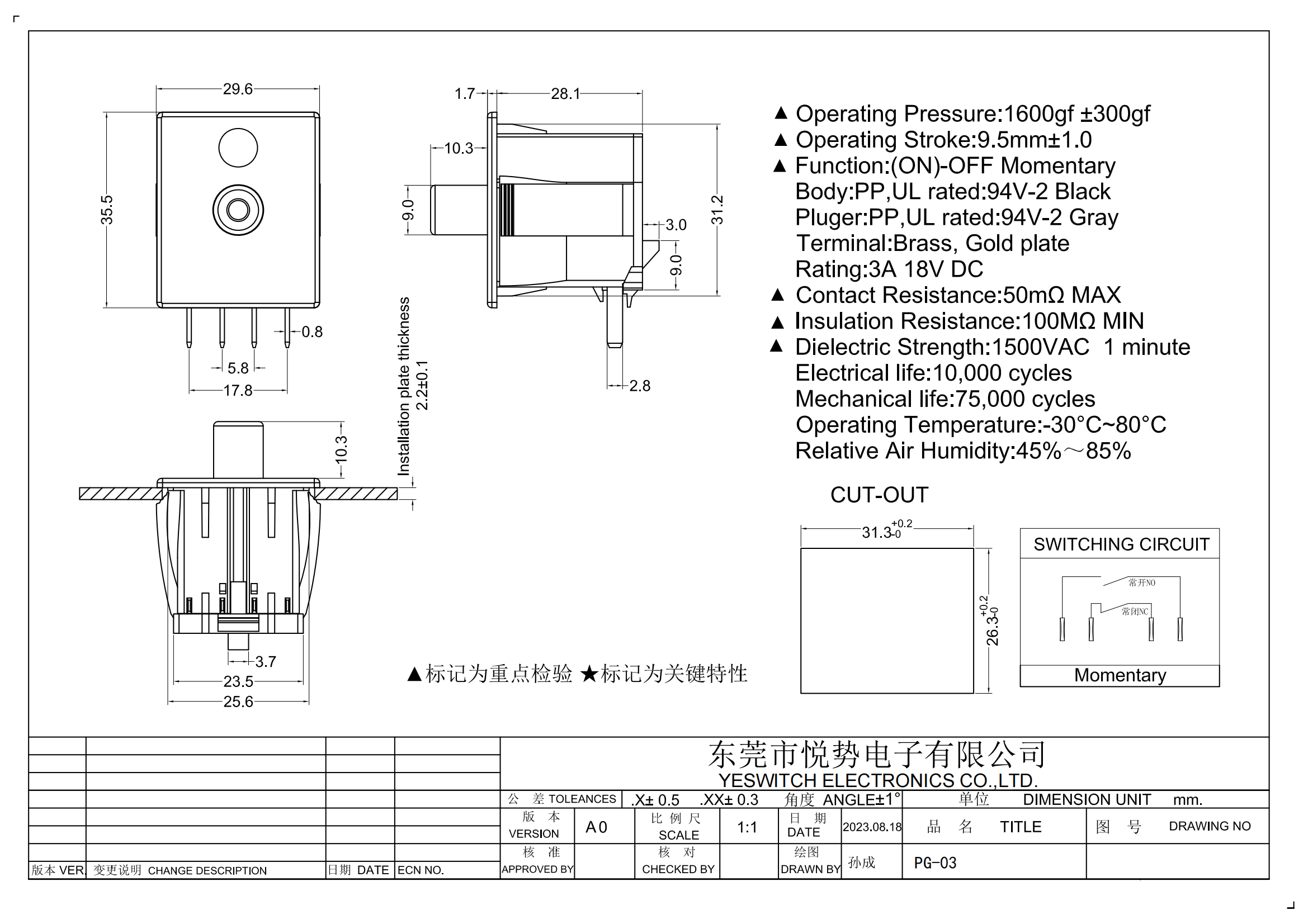

PG-03(NONC)
- Operating Pressure：1600±300gf
- Operating Stroke:9.5±1.0mm
- Function：(ON)-OFF Momentary
- Body:PP,UL rated:94V-2 Black
- Plunger:PP,UL rated:94V-2 Black
- Terminal:Brass,Gold plate
- Rating:3A 18V DC
- Contact Resistance:50mΩMAX
- Insulation Resistance:100mΩMIN
- Dielectric Strength:1500VAC 1 minute
- Electrical life:10,000 cycles
- Mechanical life:75,000 cycles
- Operating Temperature:-30~80 Degree
- Relative Air Humidity:45%~85%

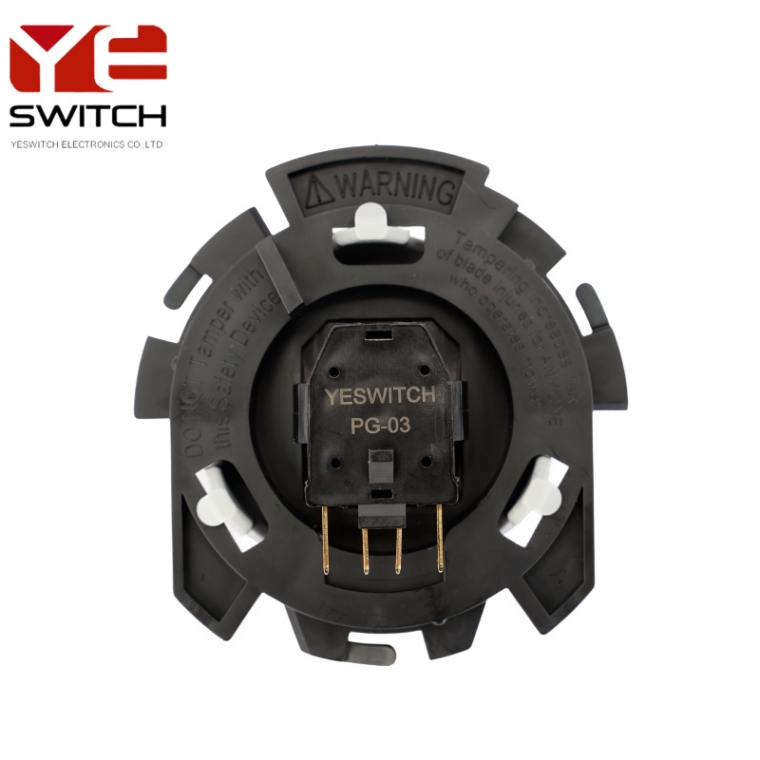

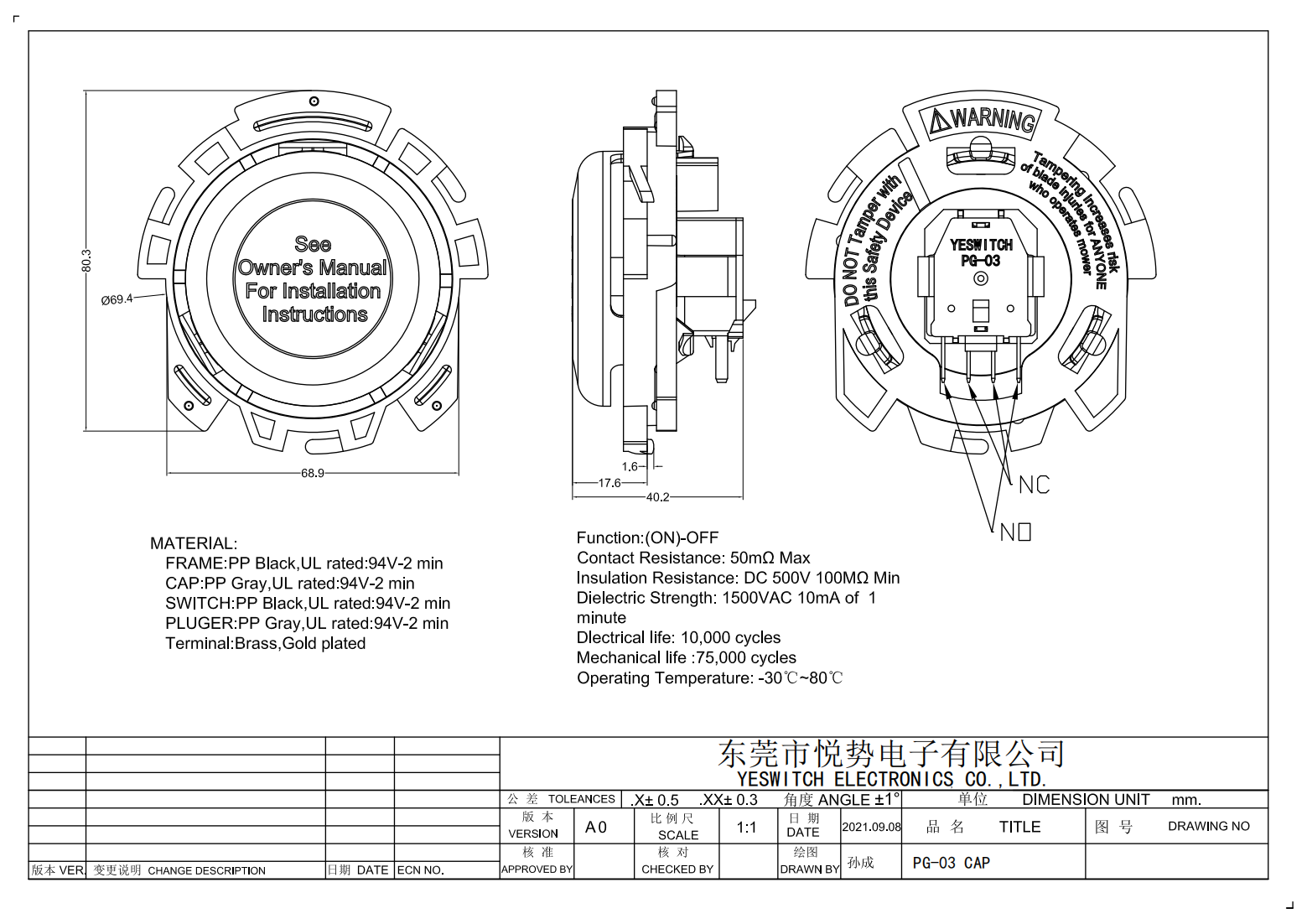

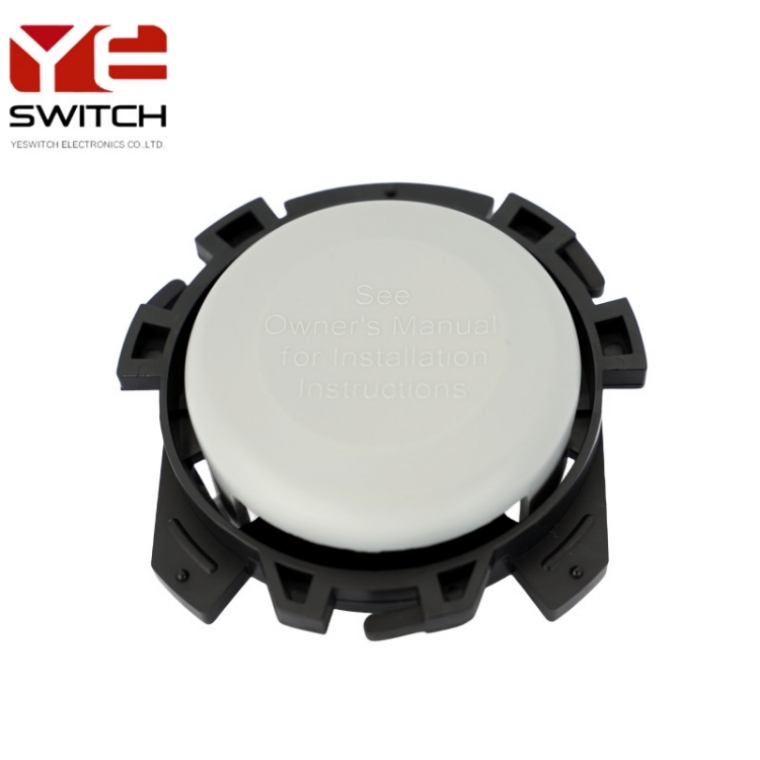

PG-03 CAP MATERIAL:
- FRAME:PP Black UL rated:94V-2 min
- CAP:PP Gray UL rated:94V-2 min
- SWITCH:PP Black UL rated:94V-2 min
- PLUGER:PP Gray UL rated:94V-2 min
- Terminal:Brass,Gold plated
- Function:(ON)-OFF
- Contact Resistance: 50mQ Max
- Insulation Resistance: DC 500V 100MQ Min
- Dielectric Strength: 1500VAC 10mA of 1minute
- Electrical life: 10,000 cycles
- Mechanical life :75.000 cycles
- Operating Temperature: -30~80 degree
