Cover plate liner D3017
2 year ago

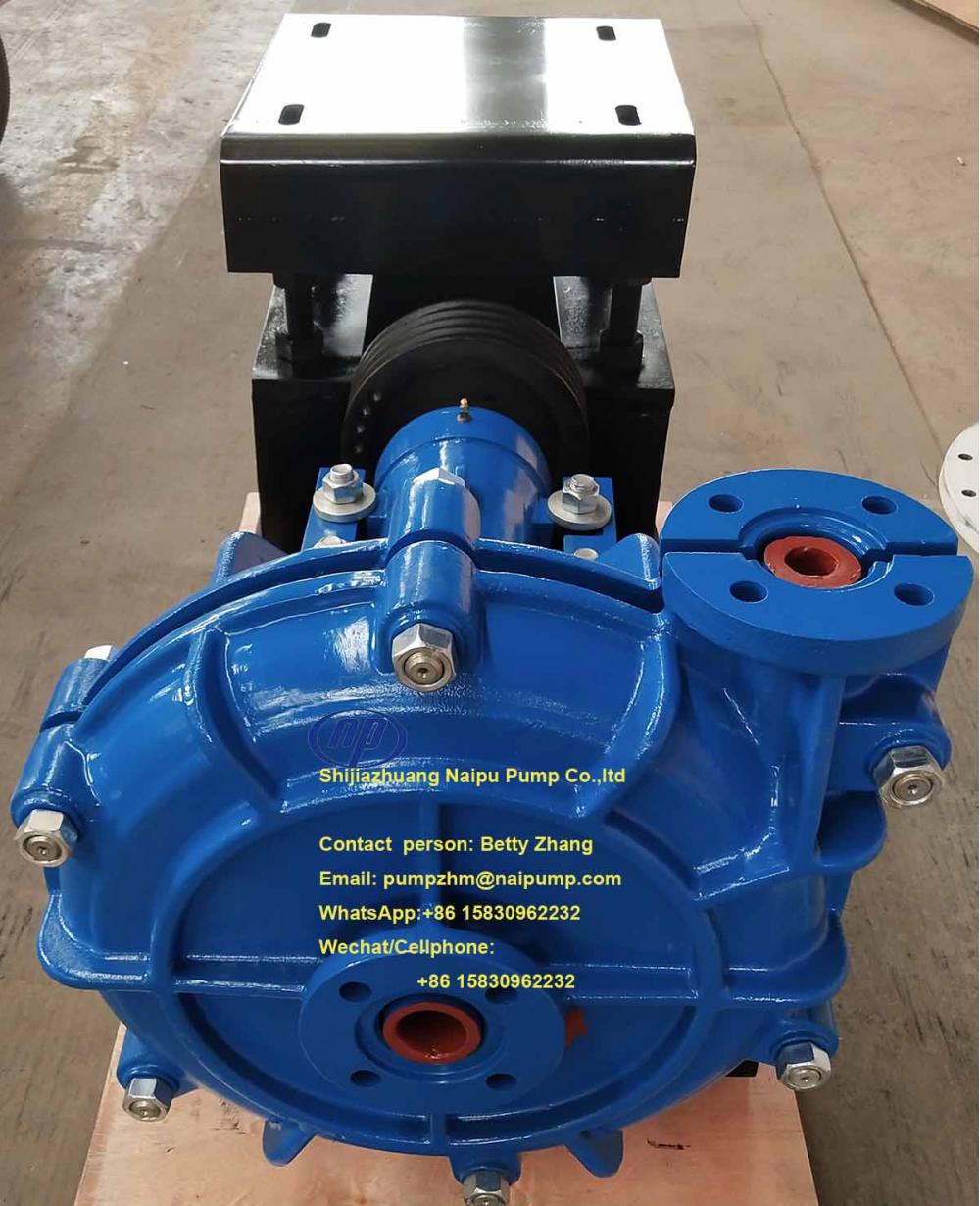

- High head slurry pumps introduce;3/2D-HH model
- Product name: High Head slurry pumps
- Type: 3/2D-HH
- Size: 3/2D-HH high head slurry pump: 2 inch discharge diameter and 3 inch suction diameter
- Capacity:126-252 m3/h
- Head: 12-97 m
- Allowable Max. Power: 120 kw
- Speed: 600-1400r/min
- NPSH : 2～5 m
- Impeller No.: 5 vanes
- Impeller Diameter:508mm
- Material of wet end parts: high chrome
-

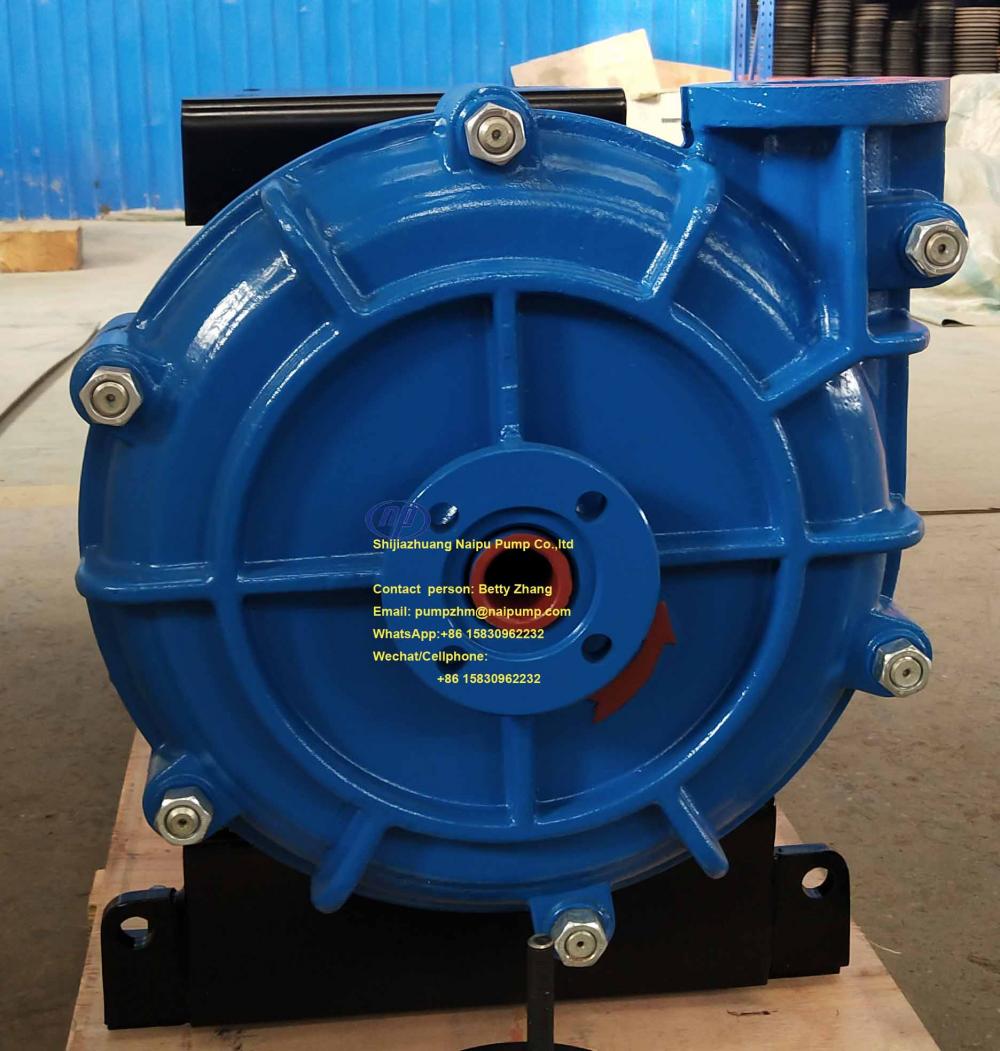

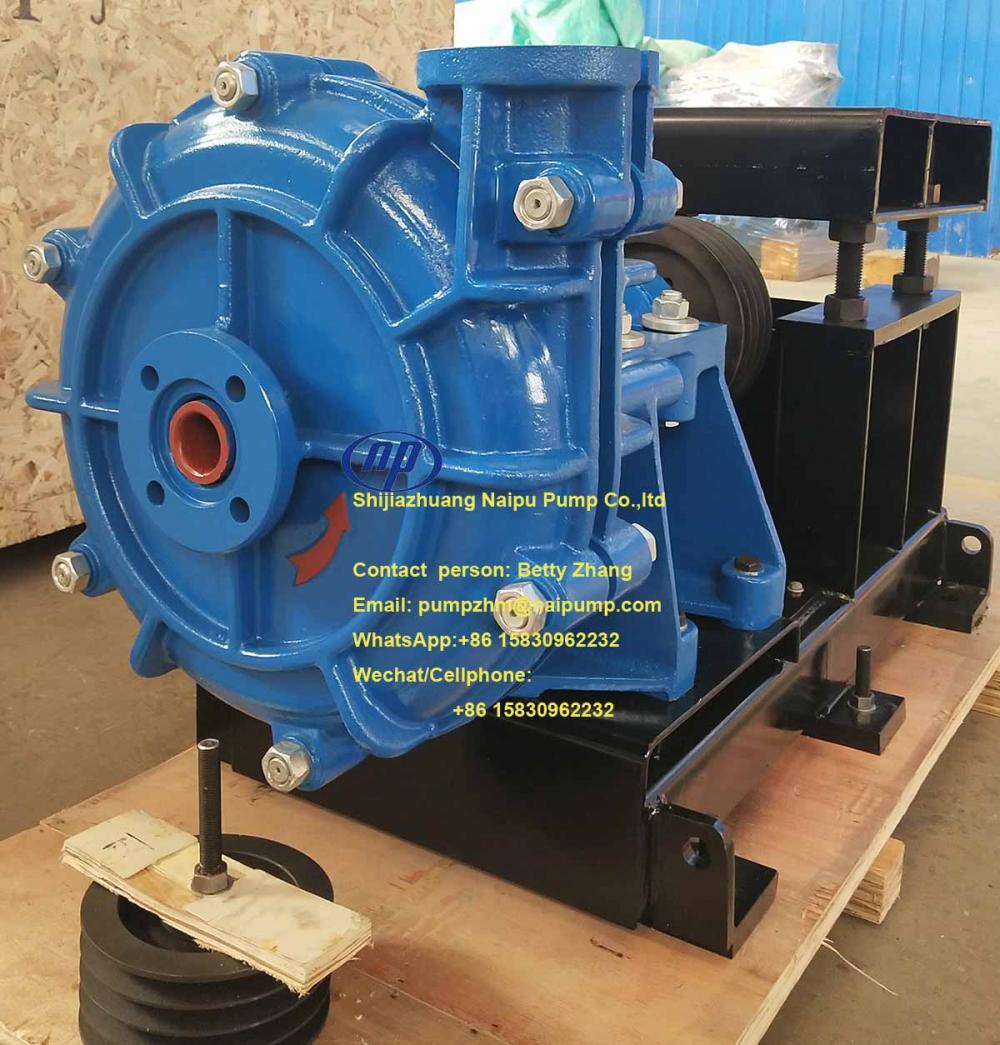

Introduction of 4/3E-HH horizontal slurry pump
-
Type HH slurry pumps are cantilevered, horizontal, centrifugal slurry pumps. The frame plate liner and impeller for HH pump are made of wear-resistant metal. The shaft seals for the HH series may choose gland seal or expeller seal. The discharge branch can be oriented to any of the eight positions to suit installations and applications.
-
Application of HH high head slurry pumps
They are designed for the handling of highly abrasive, high density slurries in the metallurgical, mining, coal, power generation, construction material and other industry.
The pumps of this type may also be installed in multistage series.Model Explanation
4x3E-HH
HH: High head
4:Intake diameter (inch)
3: Discharge size (inch)
E: Frame type with maximum power
-

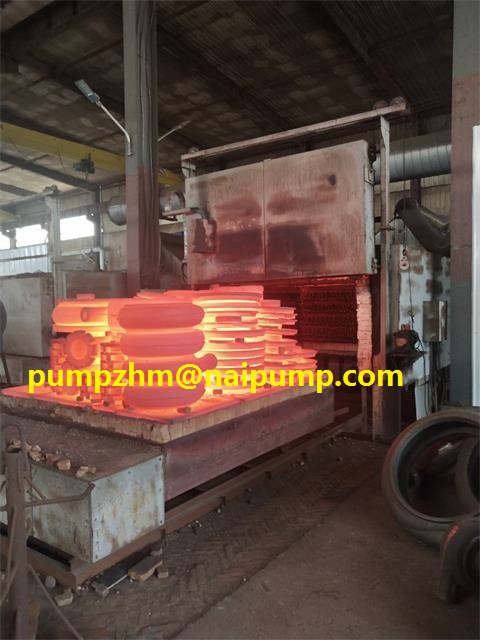

Heat treatment of high head slurry pumps
-
Model of others HH high head slurry pumps: 1.5/1C-HH, 3/2C-HH ,6/4F-HH high head slurry pumps
-

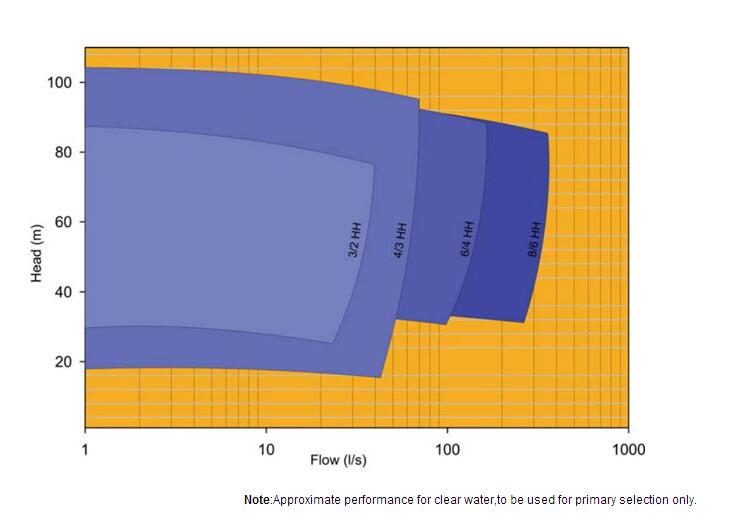

Performance curves of HH high head slurry pumps
-
-

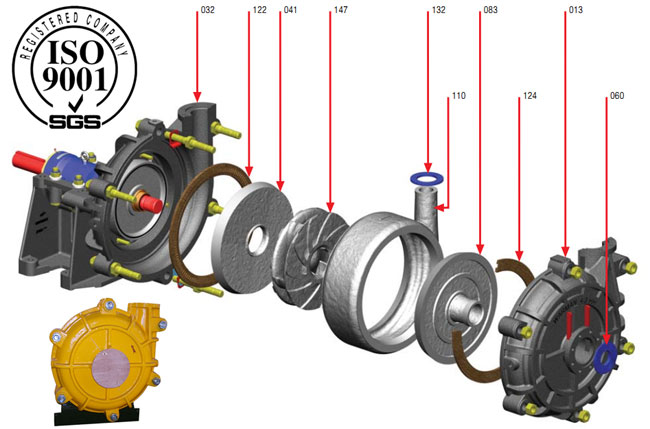

Structure of HH high head slurry pumps
-
-
