DMF-T-50S

BFEC DMF-T-50S 2'' Straight Through Electromagnetic Pulse Valve

Diaphragm pulse valves are the most important components of a baghouse pulse jet cleaning system. On a pulse jet baghouse pulse valves (also called diaphragm valves) control the release of air pulses during the cleaning cycle. When the baghouse control board or timer board initiates a cleaning cycle it sends an electrical signal to the solenoids, when then activate the pulse valve. Inside the pulse valve, a rubber diaphragm opens and closes to release the compressed air stored in the air header tank. The air then passes through the valve into the blow pipes above the filters and then is directed down into the filters to clean them.

Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the Pulse Controller. Pulse Jet Valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. Pulse jet valves are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.

Different pulse jet valve structure:

* Right Angle Type
* Submerged Type
* Quick Mount Type
* Straight Through Type
* Flanged Type

Technical Data of Dust Collector Diaphragm Valve:

Model Number	DMF-T-20	DMF-T-25S	DMF-T-40S	DMF-T-50S	DMF-T-62S
Port Size	3/4''	1''	1-1/2''	2''	2-1/2''
Diaphragm Number	1	2
Diaphragm Material	NBR, FKM
Body Material	Aluminum Alloy
Pressure Range	0.1 to 0.8 MPa
Voltage	24VDC, 110VAC, 220VAC

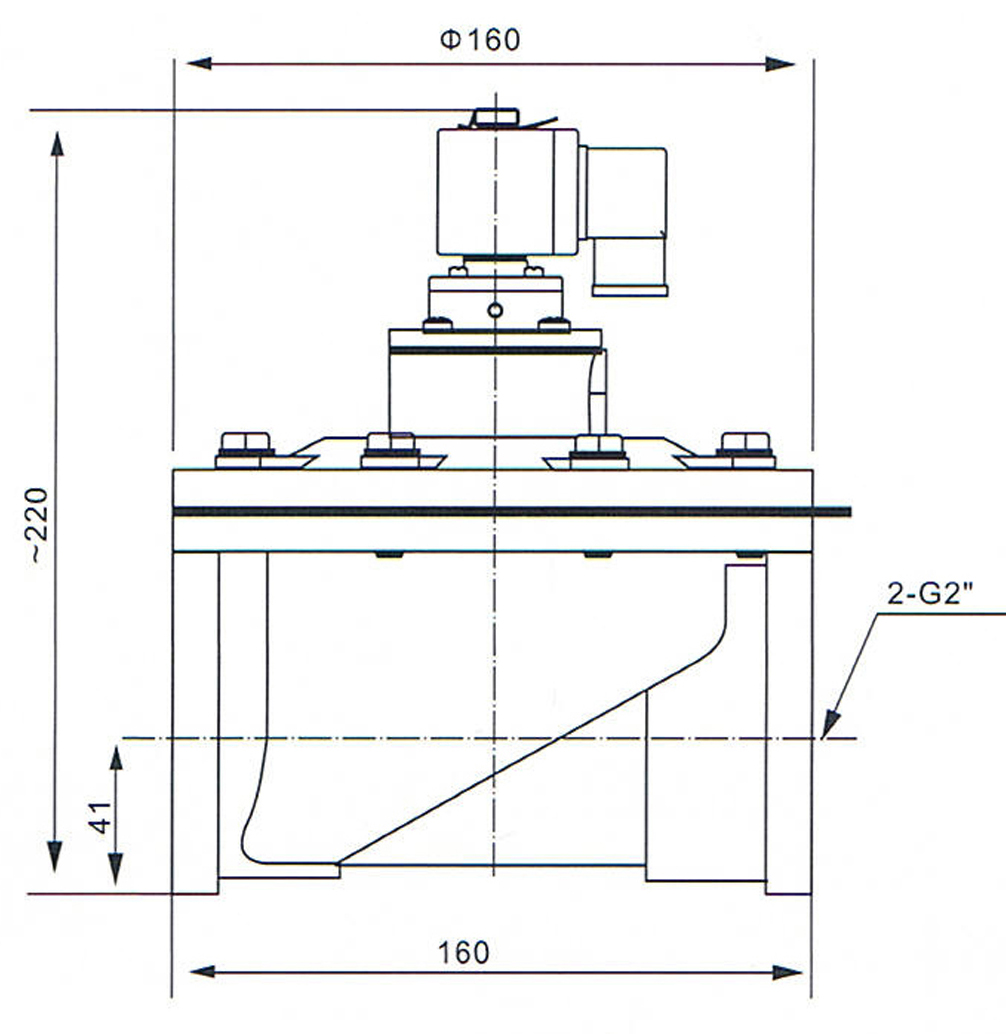

Main Dimension of DMF-T-50S Dust Collector Pulse Valve:

More SBFEC Type Pulse Jet Valve for you to choose:

Right Angle Type	Quick Mount Type	Straight Through Type	Submerged Type
Diaphragm	Solenoid Coil	Solenoid Armature	Pulse Controller
