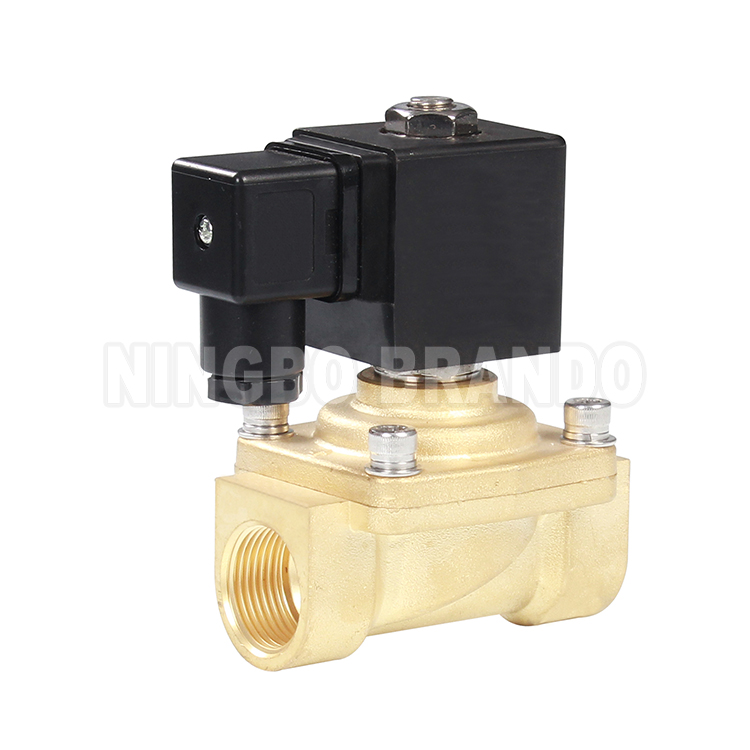

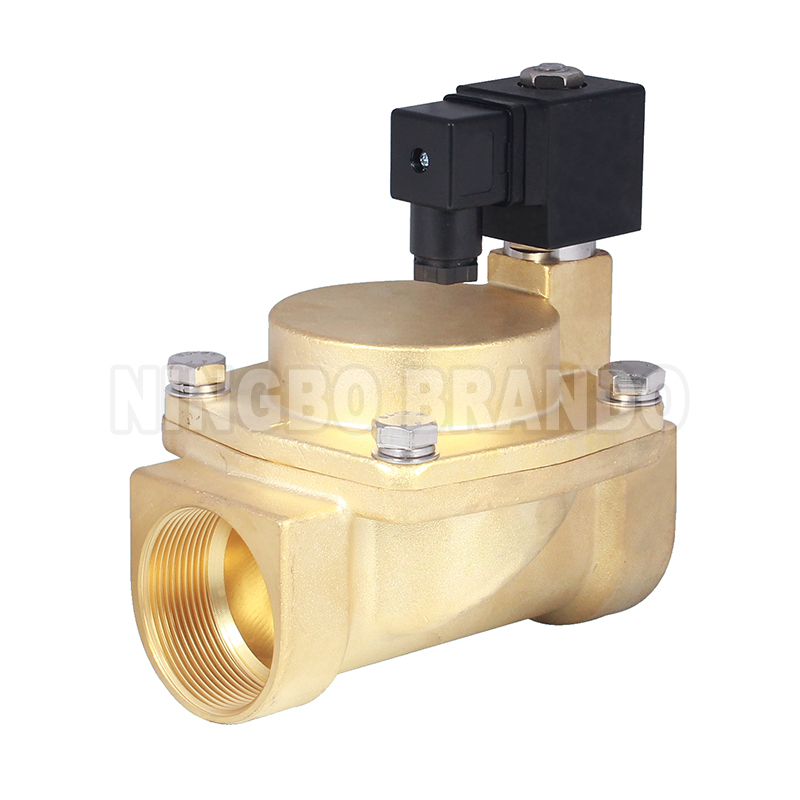

1'' Brass Steam Solenoid Valve

24V 220V Brass Steam Solenoid Valve 3/8'' 1/2''

Product Features:

1. Working Medium: Steam, Hot Water, etc
2. Working Pressure: 0.5 to 25 bar
3. Medium Temperature: -10 to +180℃
4. Port Size: 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''
5. Orifice Size: 15mm, 20mm, 25mm, 35mm, 50mm
6. Body Material: Brass
7. Seal Material: PTFE
8. Function: 2 Way Normally Closed
9. Operation: Piston Pilot Operated
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC

Technical Data:

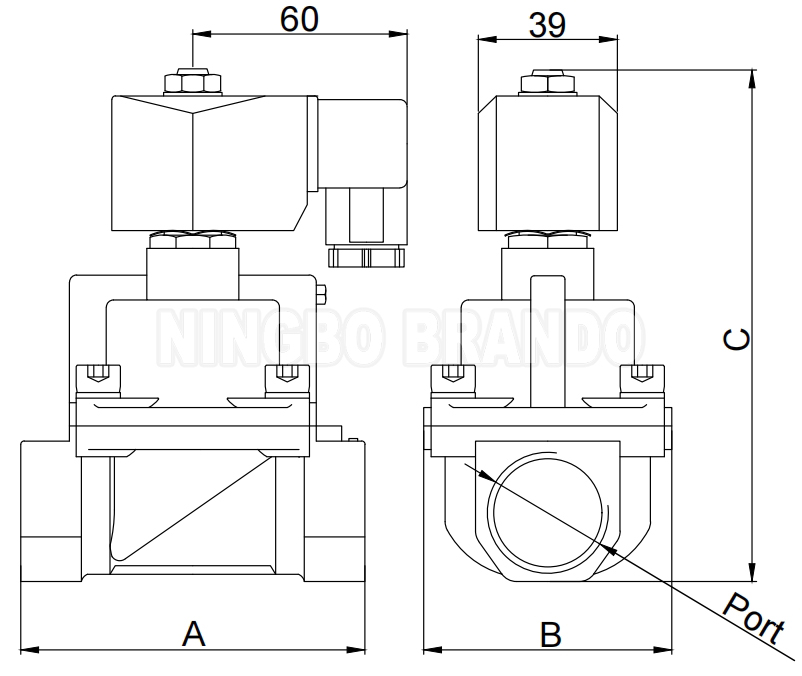

Main Dimension:

Our Production:

FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of
applications.

Question 2: How can you tell if your solenoid valve is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out solenoid coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, port size, orifice size, temperature, pressure, voltage, response time and certification required for your application.

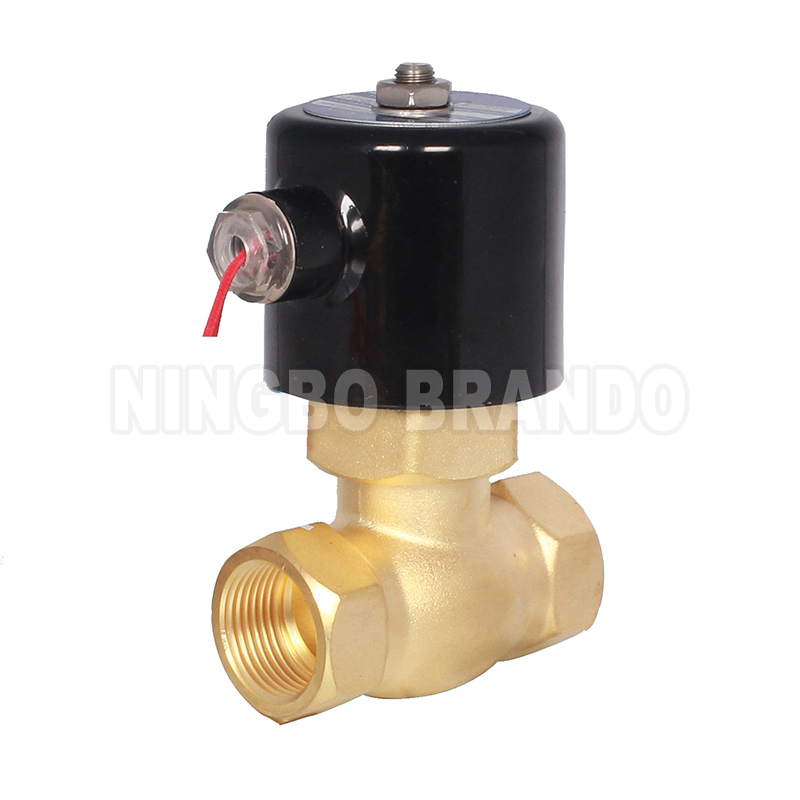

Similar Products:

Max 200℃, 10 bar	Max 185℃, 15 bar	Max 200℃, 16 bar	Max 300℃, 16 bar
