Industrial Gearboxes 2

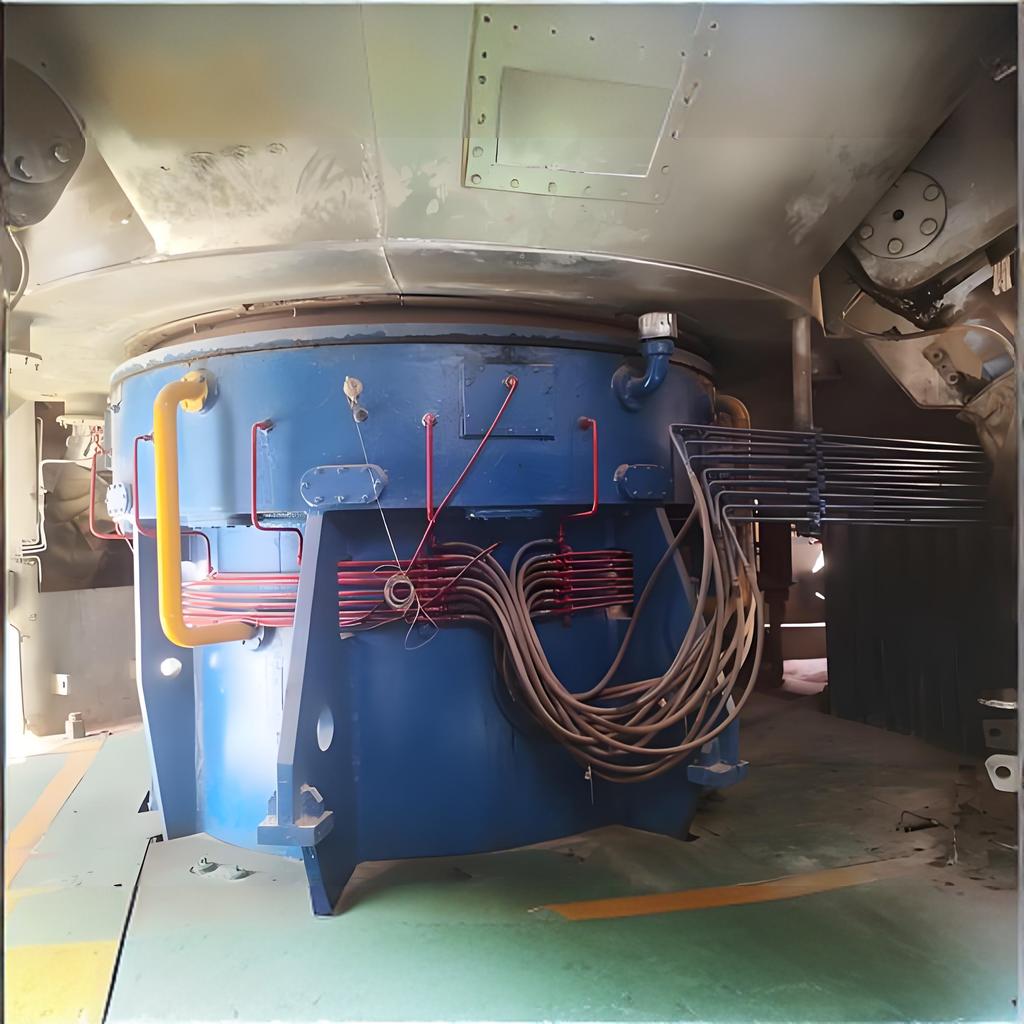

Vertical Mill Gearboxes are critical for the smooth and efficient operation of vertical mills. They are designed to withstand high loads, provide precise power transmission, and ensure the grinding process is carried out effectively.

Characteristics
Modular design, good component interchangeability.
Longer bearing life, more reasonable lubrication distribution.
flank modification to improve the overall bearing capacity and noise reduction performance.
Finite element analysis to improve gearbox operation stability.
Innovated complete thrust bearing device.

Main Technical Parameters

Specification: 3 types
Transmission stage: 2-stage (one spiral bevel gear drive and one planetary gear drive, 3-stage (one spiral bevel gear drive, one parallel gear drive, one planetary gear drive), 3-stage (one spiral bevel gear drive and two planetary gear drives).
Speed Ratio: 20–60
Rated Power: 80–9,000 kW

Applications
Raw material, cement slag, gypsum and coal ash grinding, as well as pre-grinding, in building material industries; coal and limestone mill in power and metallurgical industries and grinding systems in calcite, ceramic powder and mine industries.

Our gearboxes included Industrial Standard Gearboxes, Gearboxes for Mining, Gearboxesfor Metallurgy,Gearboxes for Petro Chemical,

Gearboxes for Wind Energy, Gearboxes for Rubber and Plastics. Our Gearboxes are widely used as Metallurgy rolling mill roller drive. Plastic Film Roller Drive etc Industrial Rollers. They are equipped with excellent quality bearings and Gears. We supply quality electric motors for our gearboxes as well.
