IP68 Metal Push Button Switch

2 year ago

9 0 

8 year

Product details

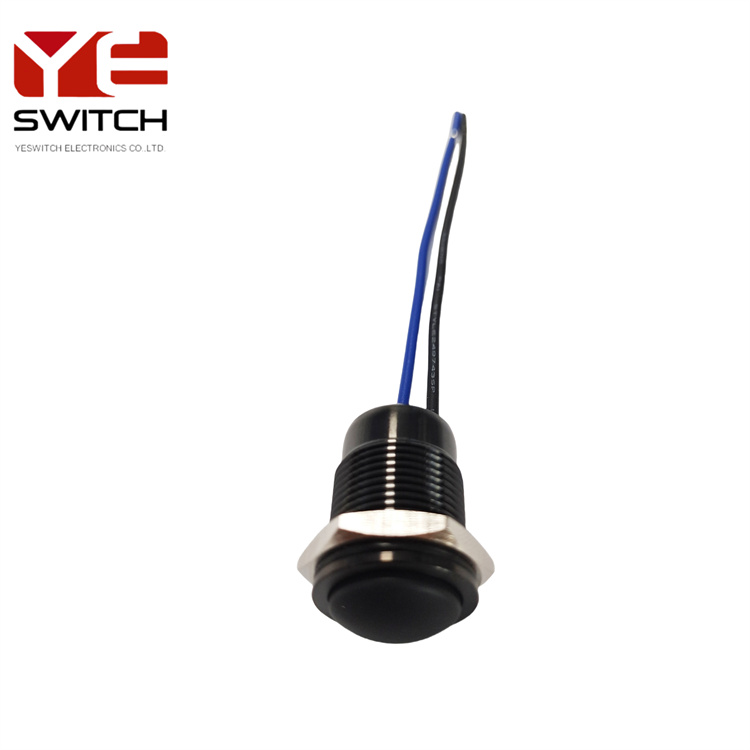

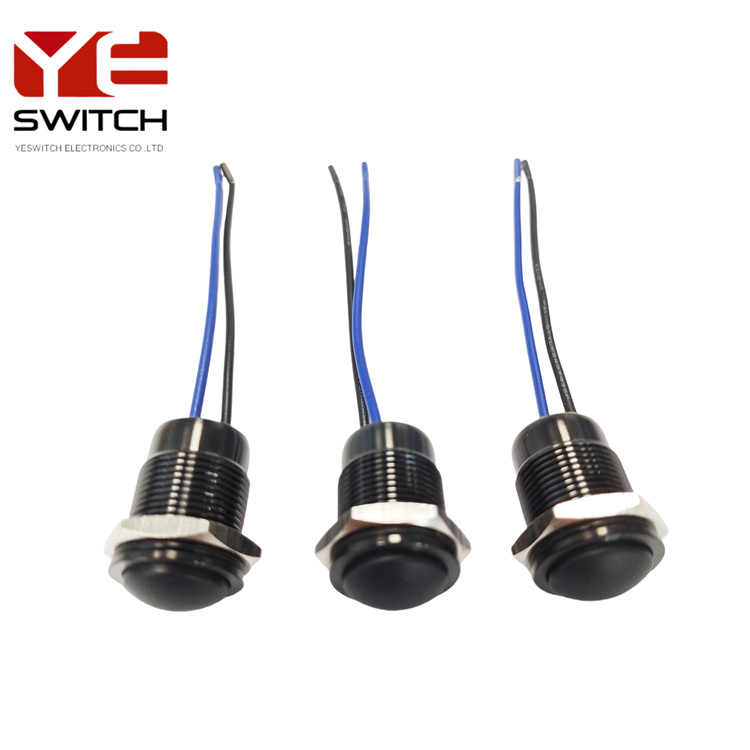

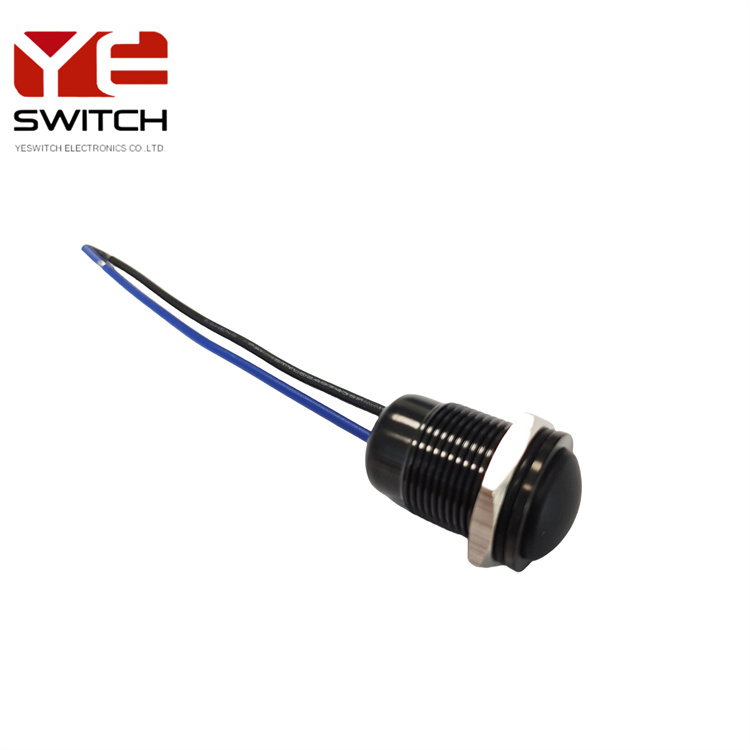

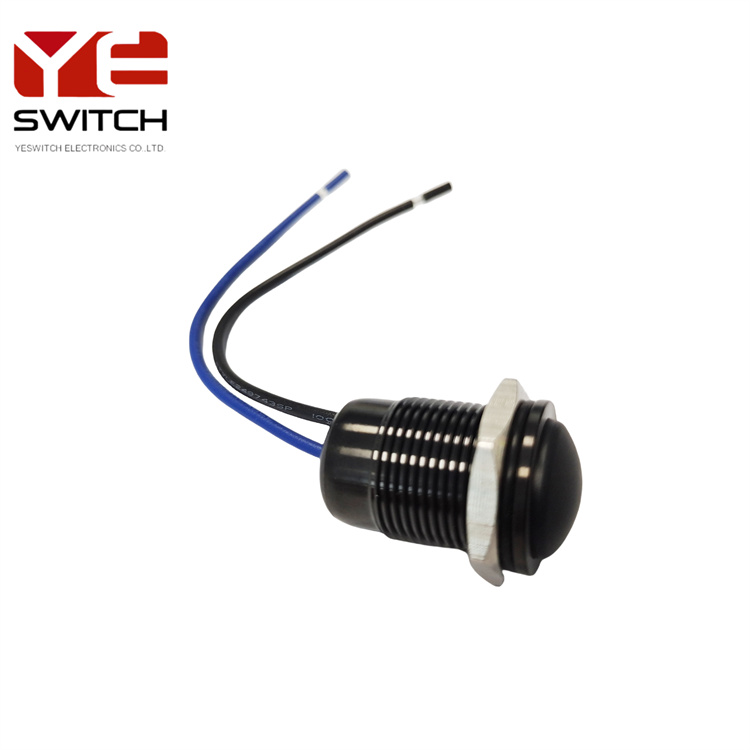

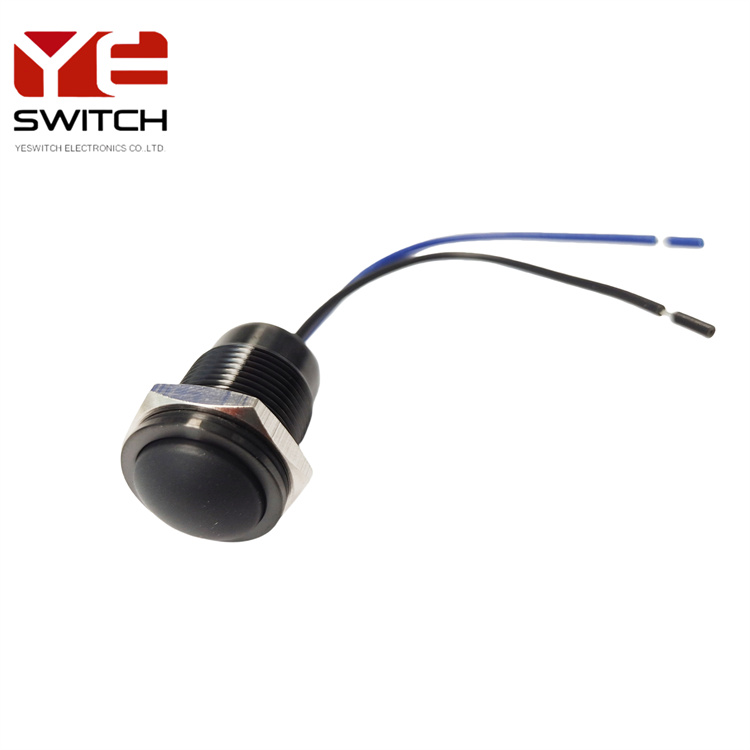

YESWITCH 16mm IP68 Momentary Silicone Button Switch With 80mm Wire

The 16mm IP68 waterproof push button switch reset OFF-(ON) metal silicone button,which is very durable and can last up to 100,000 cycles. Moreover, the push button switch rating reaches 3A 250V, which can meet the needs of various electrical appliances. Not only that, the waterproof metal switch also has a variety of silicone button colors to choose from, very personalized.

In addition, the 16mm metal switches working environment is very broad, can adapt to the extreme environment of -20~70°C. Therefore, the metal push button switch can be widely used in fields such as field vehicles, medical instruments, processing tools and agricultural machinery. Most importantly, this automotive switches also has IP68 dust and water resistance, which can effectively resist all kinds of pollution and harsh environments. Certification of the switch is also very good, ensuring the quality and reliability of the product.

In general, if you need a high-quality push button switch types, then the automotive push button switches are definitely a good choice.

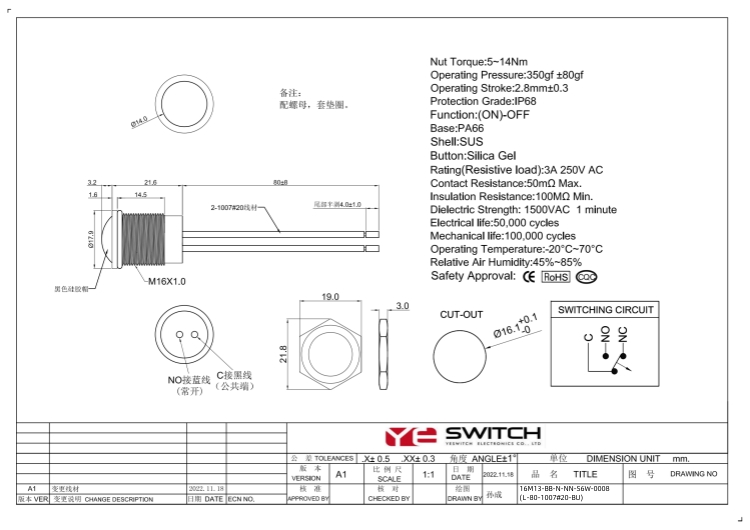

SPECIFICATION

Nut Torque:5~14Nm

Operating Pressure:350gf±80gf

Operating Stroke:2.8mm±0.3

Rating(Resistive load):3A 250V AC

Contact Resistance:50mΩ Max.

Insulation Resistance:100mΩ Min.

Dielectric Strength:1500VAC 1 minute

Electrical life:50,000 cycles

Mechanical life:100,000 cycles

Operating Temperature:-20~70 Degree

Relative Air Humidity:45%~85%

Base:PA66

Shell:SUS

Button:Silica Gel

Protection Grade:IP68

Function:(ON)-OFF
