Product details

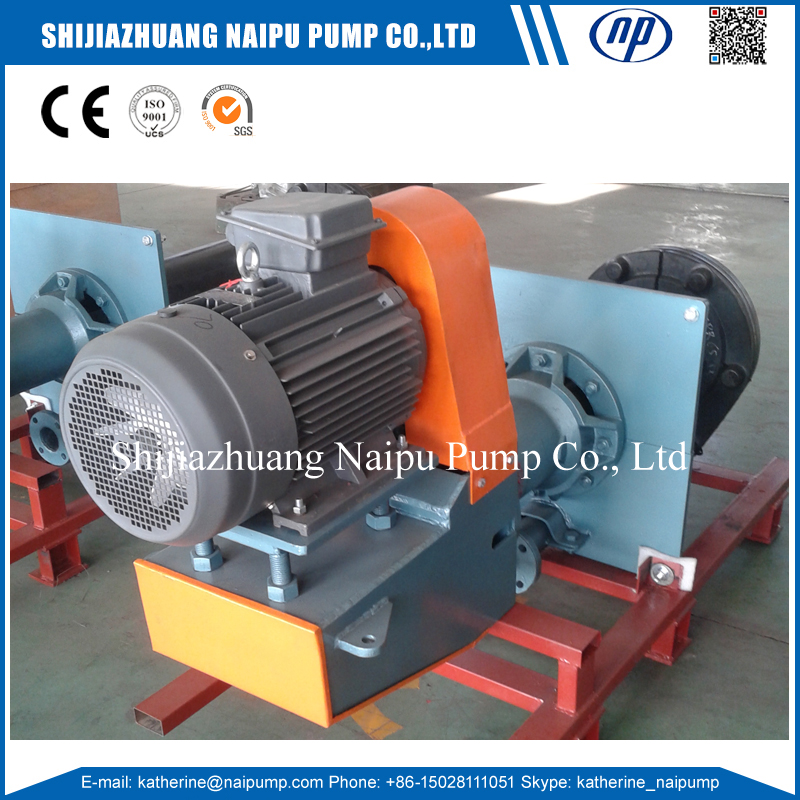

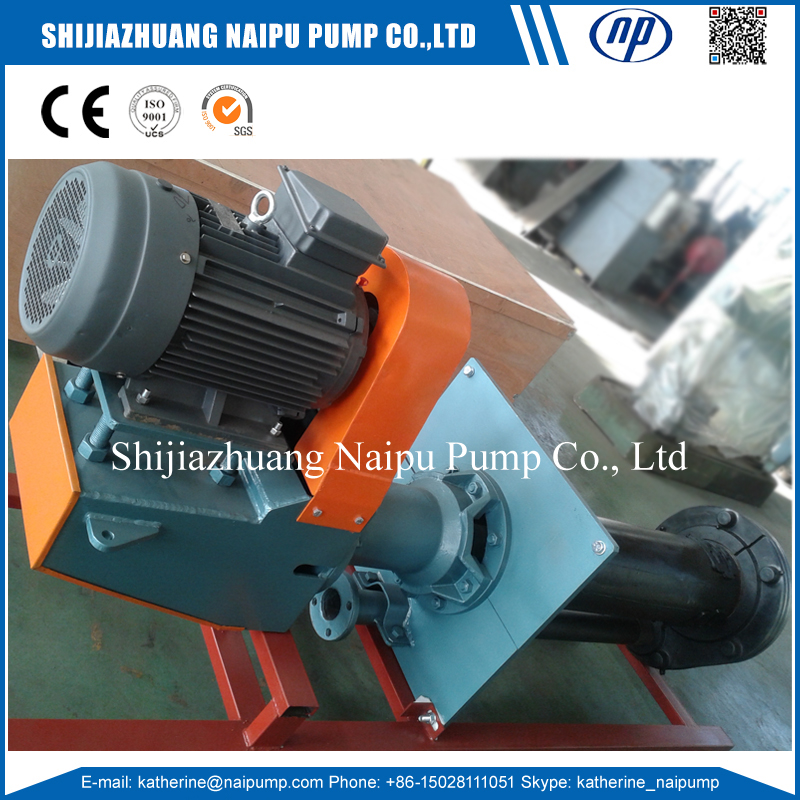

100RVSPR Vertical Sump Pump Rubber Lined

4 inches Vertical Pump for Mining / Rubber Lined Vertical Slurry Pump / Vertical Shaft Acid Solid Pump

100RV-SPR Vertical Sump Pump Part Code No.: SPR10092R55, SPR10092S01, SPR10206AR55, SPR10041R55, RVR10073GR55, RVR10073J, RVR10073L, RVR10019, SPR10116L, RVR184, Vertical Slurry Pump Casing, Vertical Slurry Pump Impeller, Vertical Slurry Pump Back Liner, Vertical Slurry Pump Shaft...

100spr Vetical Warman Pump

Vertical Slurry Pumps / NP-SPR Vertical Slurry Pumps

Heavy Duty Slurry Tank Pumps
40pv-sp Vertical Slurry Pumps
65QV-sp Vertical Slurry Pumps

Rubber Vertical Sump Pump
Rubber Slurry Pump Vertical Type
Rubber Liners Vertical Slurry Pump

NP-SPR Vertical Slurry Pumps Performance Parameters

Type	Allowable Max. Power (Kw)	Range Of Performance					Impeller
		Capacity		Head m	Speed rpm	Max Efficiency %	No. of Vanes	Diameter mm
		m³/hr	L/S	Head m	Speed rpm	Max Efficiency %	No. of Vanes	Diameter mm
40 PV-SP	15	19.44-43.2	5.4-12	4.5-28.5	1000-2200	40	5	188
65 QV-SP	30	23.4-111	6.5-30.8	5-29.5	700-1500	50	5	280
100 RV-SP	75	54-289	15-80.3	5-35	500-1200	56	5	370
150 SV-SP	110	108-479.16	30-133.1	8.5-40	500-1000	52	5	450
200 SV-SP	110	189-891	152.5-247.5	6.5-37	400-850	64	5	520
250 TV-SP	200	261-1089	72.5-302.5	7.5-33.5	400-750	60	5	575
300 TV-SP	200	288-1267	80-352	6.5-33	350-700	50	5	610
40 PV-SPR	15	17.28-39.6	4.8-11	4-26	1000-2200	40	5	188
65 QV-SPR	30	22.5-105	6.25-29.15	5.5-30.5	700-1500	51	5	280
100 RV-SPR	75	64.8-285	18-79.2	7.5-36	600-1200	62	5	370

SPR Slurry Pump Parts

Main Part Number at the Drawing

1. Discharge Pipe 2. Column 3. Strainer 4. Back Liner	5. Impeller 6. Pump Casing 7. Lower Strainer

1. Discharge Pipe
2. Column
3. Strainer
4. Back Liner

5. Impeller
6. Pump Casing
7. Lower Strainer

Vertical Tank Centrifugal Pump
65QV SP Vertical Sump Pump
40PV-SP Vertical Pump

Long Shaft Vertical Slurry Pump
Long Shaft Vertical Pump
65QV-sp Vertical Pump

slurry pump spare parts

Any question please contact Katherine Hou freely.
