Product details

Our vertical froth pump is vertical type,used in gold mining flotation process which have more froth that other slurry pump can not pump.Our vertical froth pump is also called mining usage froth pump,flotation process froth slurry pump.We have lot of these vertical froth pump in stock, so our delivery is very short.


Performance range of vertical froth pump:

vertical froth pump Discharge Diameter: 2~8 inch (7.2~200mm)

vertical froth pump Flow capacity: 5~648m3/h

Head:4~30m

Type notation

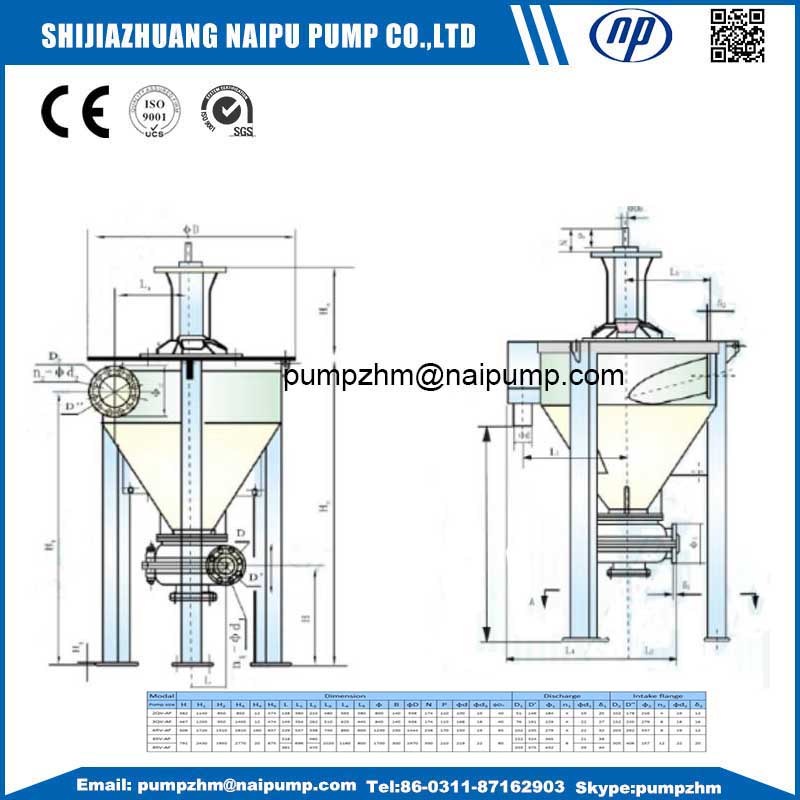

Naipu Vertical froth pump, Froth Pump OUTLINE DRAWING:

001 vertical slurry pump outline drawing02



AF Vertical Froth Pump Performance Parameters,Wear Resistance Mining Usage Froth Pump

Type

Allowable Mating

Max. Power(Kw)

Clear Water Performance

Impeller

Capacity/Q m³/hr

Head/m

Speed/rpm

Max Efficiency/%

Diameter/mm

2AF-QV

15

7.2-33

5--30

800-1800

45%

229

3AF-QV

20

10-104

10--28

700-1500

55%

268

4AF-RV

40

15-130

6--28

500-1050

55%

397

6AF-SV

75

55-330

6--25

350-680

55%

560


Vertical Froth Pump select chart:

001 select chart





Please contact Betty zhang in Naipu pump for vertical froth pump:

vertical froth pump contact info
