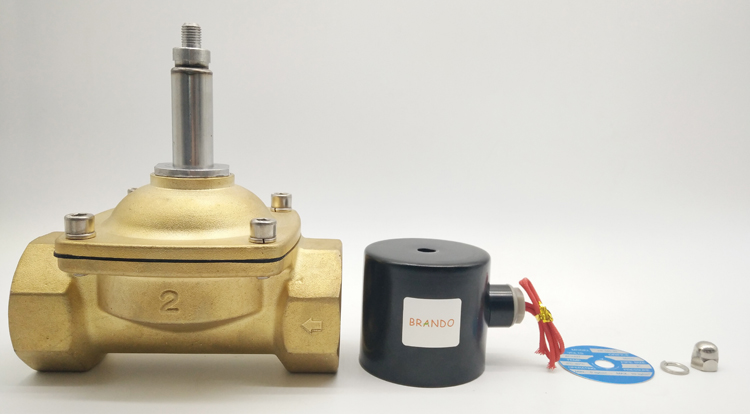

2W500-50 2'' 2W Normally Closed Series Solenoid Valve

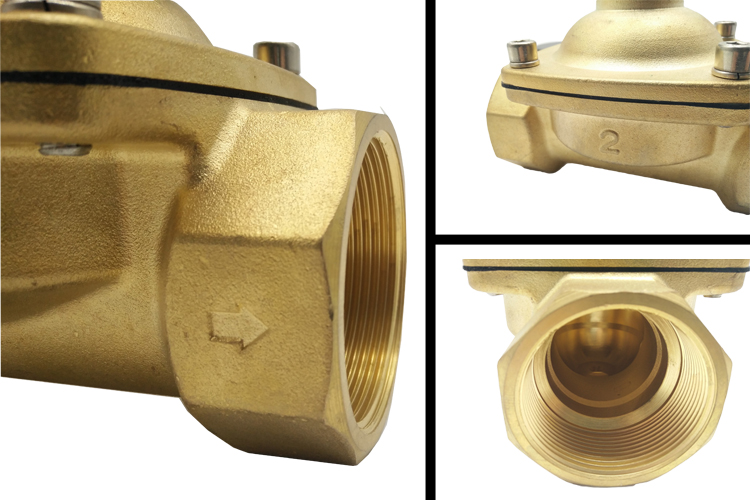

2W500-50 Solenoid Valve are widely used in medical machinery, cleaning equipment, food machinery, burner, welding and cutting, fire safety, environmental protection, water treatment, machinery manufacturing and other industries. 2" Inches Brass Electromagnetic Valve, 2 Position 2 Way Noraml Close Drive acting.

2W500-50

2W: 2 Positon 2 Way Solenoid Valve. Solenoid valve has 2 pipe connections, an inlet called the cavity port and an outlet called the body orifice port. When the valve is energized the plunger opens allowing media to flow through the valve in the cavity port and out the body orifice port.Turn off the power. The orifice closes and flow through the valve stops.

500: The Aperture of Flow Rate is 50 mm

50:Joint Pipe Bore is G2 Inch Female Thread

The Technical Data of  2/2 Way Operated Solenoid Valve 2W500-50:

Disassembly diagram of DN50/2 inch inlet & outlet 2W500-50 water diaphragm valves:

Normal Problem of 2W500-50 Solenoid Valve

Solenoid Valve Do Not Work

1.Check the power supply meets standards. The Standard Voltage is AC 220V.

2.The working pressure appropriate or not.

3. orifice obstruction or not. The Operating Temperature Range is Below 20 CST. It is recommended to install a pre-filter.

4.The Coil Short circuit or not.
