2W160-10 3/8'' NC Semi Diaphragm Brass Solenoid Valve

2W160-10 is 2 Position 2 Way Normally Closed Solenoid Valve meaning it is closed when power isn't supplied.

Which is used for Water Treatment System.Suitable for use with water, gas, air, very low viscosity fluids (< 20 cst)

The valve body material is Brass.It has good wear resistance.

2W160-10 2 Position 2 Way of 3/8" Solenoid Valve Technical Data

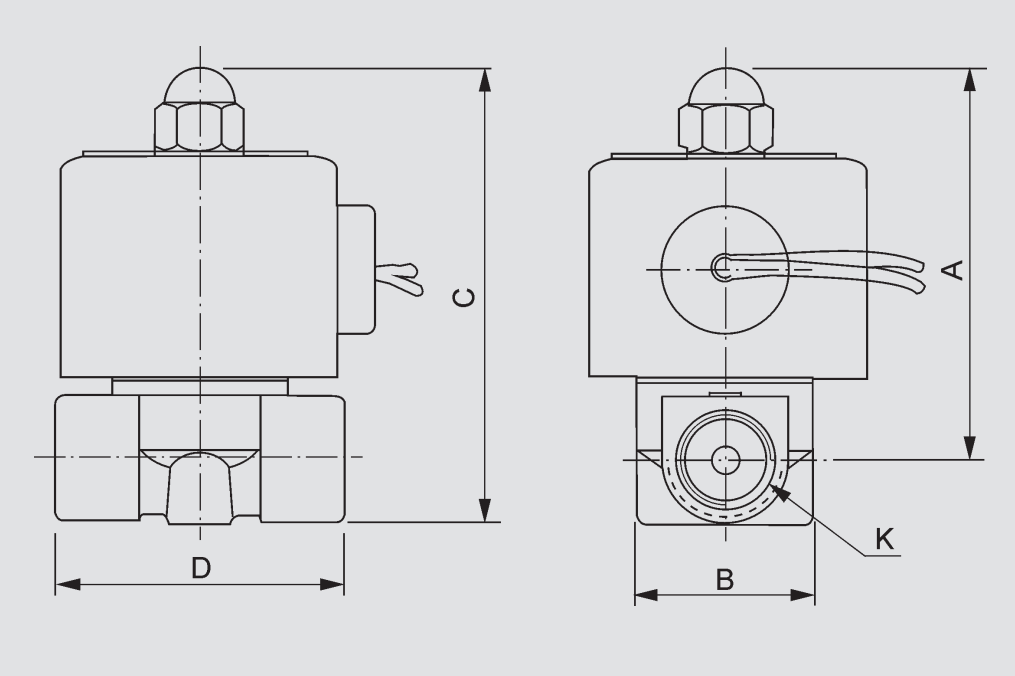

Overall Dimension Drawing of 2 Way NC Solenoid Valve 2W160-10:

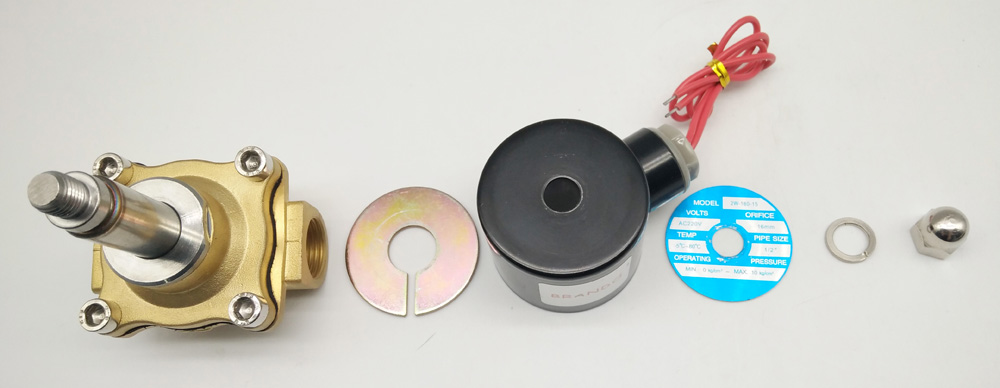

Product disassembly diagram of Brass Body2W160-10 solenoid valves

The Installation of 3/8'' inch 2/2 Way Solenoid Valve 2W160-10 :

1.Before using the solenoid valve for water, pay attention to the product label and read the instruction manual carefully to judge whether the product meets the conditions of use.
2.There is an arrow indicating the direction of flow on the stainless valve body.
3.An inline filter is recommended to keep debris from impeding on the flow and seal.
4.The coil is 220 Volts AC with a tolerance of +/- 10% making it perfect for 220 Volt AC power systems.

Brando supply:

1. Water Solenoid Valve and its repair kits( Solenoid Valve Coil , Solenoid Valve Armature Assembly , Solenoid Valve Timer, Solenoid Valve Connector and so on).
2. Pneumatic Valve, Pneumatic Hose Fitting, Pneumatic Cylinder, Pneumatic Actuator Valve and so on.
3. Dust Collector Valve and  Pulse Valve Repair Kits(Pulse Valve Diaphragm, Solenoid Valve Coil , Solenoid Valve Armature Assembly, Pulse Controller and so on).
4. Reverse Osmosis Parts and Plastic Fast Fitting.
5. Refigeration Solenoid Valve.
6. LPG CNG Injector Rail.
If you have any question, please feel free to contact us.
