2W200-20 3/4'' NC Diaphragm Brass Water Solenoid Valve
This is a 2W200-20 (UW-20) solenoid valve, 3/4 inch (G, NPT) female thread port size, brass body material, NBR diaphragm material, 2 way normally open, direct lifting diaphragm, 12V DC, 24V DC, 110V AC, 220V AC voltages for you to choose, other voltages can be customized.
2W series brass solenoid valve: 2W025-06, 2W025-08, 2W040-10, 2W160-10, 2W160-15, 2W200-20, 2W250-25, 2W350-35, 2W400-40, 2W500-50.
2S series stainless steel solenoid valve: 2S025-06, 2S025-08, 2S040-10, 2S160-10, 2S160-15, 2S200-20, 2S250-25, 2S350-35, 2S400-40, 2S500-50.
Technical data of 2W Series Solenoid Valves:
|
2W NC Series
|
2W025-08
|
2W040-10
|
2W160-15
|
2W200-20
|
2W250-25
|
2W350-35
|
2W400-40
|
2W500-50
|
|
2W NO Series
|
2W025-08-NO
|
2W040-10-NO
|
2W160-15-NO
|
2W200-20-NO
|
2W250-25-NO
|
2W350-35-NO
|
2W400-40-NO
|
2W500-50-NO
|
|
Orifice Size
|
2.5
|
4
|
15
|
20
|
25
|
35
|
40
|
50
|
|
Port Size
|
1/4''
|
3/8''
|
1/2''
|
3/4''
|
1''
|
1-1/4''
|
1-1/2''
|
2''
|
|
Medium
|
Water, Air, Gas, Oil
|
|||||||
|
Action
|
Direct Acting
|
Semi-Direct Diaphragm Operated
|
||||||
|
Function
|
2 Way, Normally Closed / Normally Open
|
|||||||
|
Fluid Viscosity
|
20 CST below
|
|||||||
|
Pressure
Range
|
0 to 1.0 Mpa
|
|||||||
|
Temp. Range
|
-5 to +85℃
|
|||||||
Main dimension of 2W Series Solenoid Valves:
|
2S Series
|
2W Series
|
A
|
B
|
C
|
D
|
E
|
|
2S025-06
|
2W025-06
|
64.5
|
30
|
75
|
43
|
1/8''
|
|
2S025-08
|
2W025-08
|
64.5
|
30
|
75
|
43
|
1/4''
|
|
2S040-10
|
2W040-10
|
70.6
|
32
|
82.4
|
53
|
3/8''
|
|
2S160-10
|
2W160-10
|
101.5
|
57
|
117
|
69
|
3/8''
|
|
2S160-15
|
2W160-15
|
101.5
|
57
|
117
|
69
|
1/2''
|
|
2S200-20
|
2W200-20
|
107
|
57
|
123.5
|
73
|
3/4''
|
|
2S250-25
|
2W250-25
|
111.5
|
73.5
|
134.5
|
99
|
1''
|
|
2S350-35
|
2W350-35
|
142
|
95
|
172
|
123
|
1-1/4''
|
|
2S400-40
|
2W400-40
|
142
|
95
|
172
|
123
|
1-1/2''
|
|
2S500-50
|
2W500-50
|
172
|
123
|
209
|
168
|
2''
|

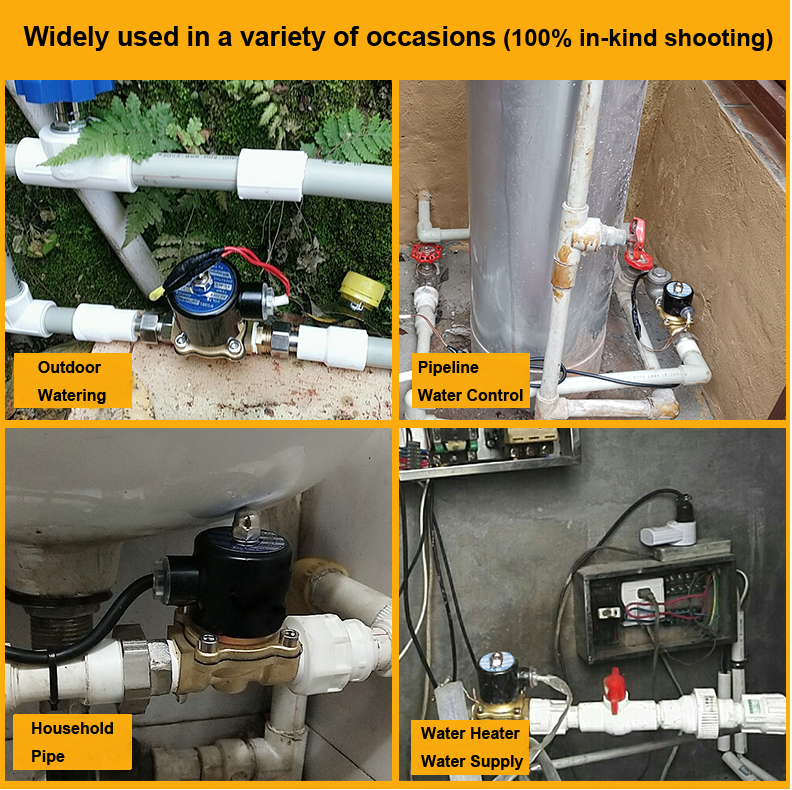

Application examples of Brass Solenoid Valve:
Brando Production video of Solenoid Valves:
More Solenoid Valves for you to choose:
1. According to Body Material: Brass Solenoid Valve, Stainless Steel Solenoid Valve, Plastic Solenoid Valve
2. According to Valve Operation: Direct Acting Solenoid Valve, Semi Direct Acting Solenoid Valve, Pilot Operated Diaphragm Valve, Pilot Operated Piston Valve.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Brando supply:
1. Water Solenoid Valve and its repair kits( Solenoid Valve Coil , Solenoid Valve Armature Assembly , Solenoid Valve Timer, Solenoid Valve Connector and so on).
2. Pneumatic Valve, Pneumatic Hose Fitting, Pneumatic Cylinder, Pneumatic Actuator Valve and so on.
3. Dust Collector Valve and Pulse Valve Repair Kits(Pulse Valve Diaphragm, Solenoid Valve Coil , Solenoid Valve Armature Assembly, Pulse Controller and so on).
4. Reverse Osmosis Parts and Plastic Fast Fitting.
5. Refigeration Solenoid Valve.
6. LPG CNG Injector Rail.
If you have any question, please feel free to contact us.
