USB a Connector 90 Degree DIP Type 4pin USB 2 0

2 year ago

38 0 

Dongguan City Yuanyue Electronics Co.Ltd

3 year

Product details

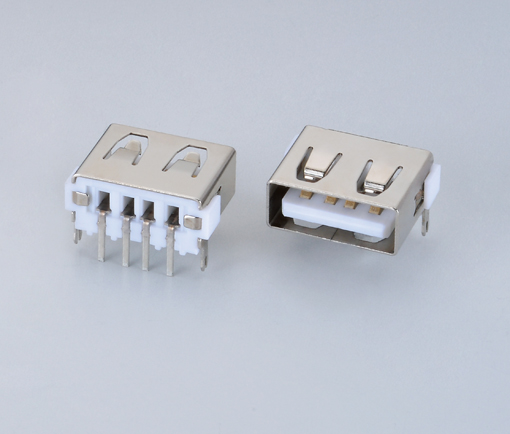

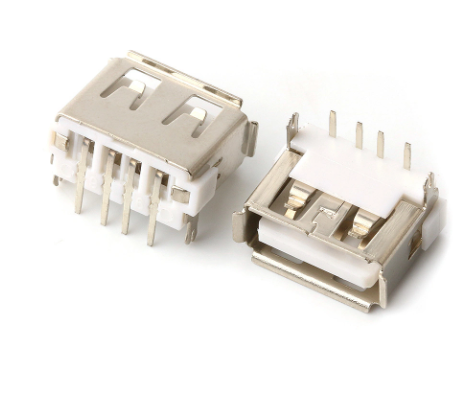

USB 2.0 Type-A Connector Female Dip Type
Also known as USB standard A connector, the USB A connector is primarily be used on host controllers in computers and hubs. USB-A socket is designed to provide a "downstream" connection intended for host controllers and hubs, rarely implemented as an "upstream" connector on a peripheral device. This is because USB host will supply a 5V DC power on the VBUS pin. As such, it is important to remember while purchasing USB cables it is safest to make sure at least one of the plugs is a USB A.

Overview:

*Small footprint

*Stainless steel shell

*Lead-in feature on receptacle housing

*Simple edge-contact beam geometry of connector shell

*Overmold process used for receptacles

*Passive latching window with angular tabs on receptacle shell (meets USB 2.0 specification requirements)

*Rear shield of stainless steel shell in standard mount parts

*Pick and place area on connector shell

Feature:

Product Name: USB Connector Serise

Rating: DC 48V 1A~3A

Contact Resistance: ≤30mΩ

Insulation Resistance: ≥1000MΩ

Ambient Temperature: -45°C ~ +85°C

Operating Force: 3~20N

Lifetime: 10,000cycles Min

Material: NYLON/PBT/LCP/PA66/Copper/SPCC

MOQ: 1000pcs

Packing: Tray Packing or Reel Packing

Application:

The USB 2.0 Type-A Connector Female Dip Type is a widely used interface in electronic devices for data transfer and power supply. Here are some common applications:

Computer Peripherals: USB Type-A connectors are commonly found on computer peripherals such as keyboards, mice, printers, external hard drives, and scanners. These devices use USB connectivity for data transfer and power supply.

Consumer Electronics: Many consumer electronic devices, such as TVs, set-top boxes, gaming consoles, and media players, utilize USB Type-A connectors for various purposes like firmware updates, data transfer, and charging.

Mobile Devices: While newer mobile devices often feature USB Type-C connectors, older smartphones, tablets, and MP3 players may still use USB Type-A connectors for charging and data transfer when connected to computers or charging adapters.

Automotive Applications: USB Type-A connectors are also found in automotive applications, where they are used for connecting devices like smartphones, USB drives, or media players to in-car entertainment systems for music playback or charging.

Industrial Equipment: USB Type-A connectors are used in industrial equipment for data transfer, programming, and firmware updates. They are often used in automation systems, test and measurement equipment, and control panels.

Medical Devices: Medical equipment such as patient monitors, diagnostic devices, and laboratory equipment may use USB Type-A connectors for data transfer, firmware updates, or connecting peripheral devices.

The USB 2.0 Type-A Connector Female Dip Type offers several advantages:

Widespread Compatibility: One of the key advantages of the USB Type-A connector is its widespread compatibility with a vast array of devices. Many electronic devices, including computers, laptops, printers, keyboards, mice, and external storage devices, feature USB Type-A ports, making it easy to connect peripherals without the need for adapters or converters.

Ease of Use: The USB Type-A connector is known for its simplicity and ease of use. It features a standard rectangular shape with a single orientation, allowing users to easily plug in devices without worrying about the orientation of the connector.

Durability: USB Type-A connectors are designed to withstand frequent use and insertion cycles. The connectors are typically made of durable materials such as metal or high-quality plastics, ensuring longevity and reliability even in demanding environments.

Data Transfer Speeds: While USB 2.0 Type-A connectors may not offer the fastest data transfer speeds compared to newer USB standards like USB 3.0 or USB-C, they still provide sufficient bandwidth for many applications. USB 2.0 supports data transfer rates of up to 480 Mbps, making it suitable for transferring files, documents, and multimedia content.

Power Delivery: USB Type-A connectors can also deliver power to connected devices, making them suitable for charging smartphones, tablets, and other electronic gadgets. Many USB Type-A ports on computers and laptops provide sufficient power to charge devices quickly and efficiently.

Cost-Effectiveness: USB Type-A connectors are cost-effective to manufacture, making them a popular choice for both manufacturers and consumers. The widespread adoption of USB Type-A ports has also contributed to economies of scale, resulting in lower costs for devices that feature these connectors.

Certification：

Company Information:

About Us

Founded in 2008, Yuanyue Electronics Co.,Ltd is dedicated to forging a world-leading brand of customized connector and cable manufacturer. Our factory is located in Dongguan, China --- world-famous manufacturing center, and owns branch office in Taiwan and Hong Kong. We are not merely specialized in producing board-to-board, wire-to-board, wire-to-wire Connectors and Cable Assemblies, but a solution provider of customized connectors and cables as well.

Quality as survival, Reputation as development

YYE has passed ISO9001 and IATF16949 quality system certification, established a sound quality control system. Our company sticks to using imported and high-quality raw materials. Our rigorous quality team ensures that all products have passed ROHS, REACH, UL and Halogen-free certifications, and products have also obtained a number of national utility model patents.

Continuous investment in technology, productivity and efficiency

Since established,we keep increasing investment in R&D , automatic producing equipments and high precise imported testing equipments every year.Now we hold plastic mold and hardware mould more than 500 sets,automatic equipments accounts for 46% of the total equipments.

Quick Responsiveness and coordination abilities

Each client has a special project leader and a professional engineer following your items and instant feedback.we even independently developed a set of automatic equipment for our customers, assisting customers in reducing costs and decreasing lead-time.

YYe Company History

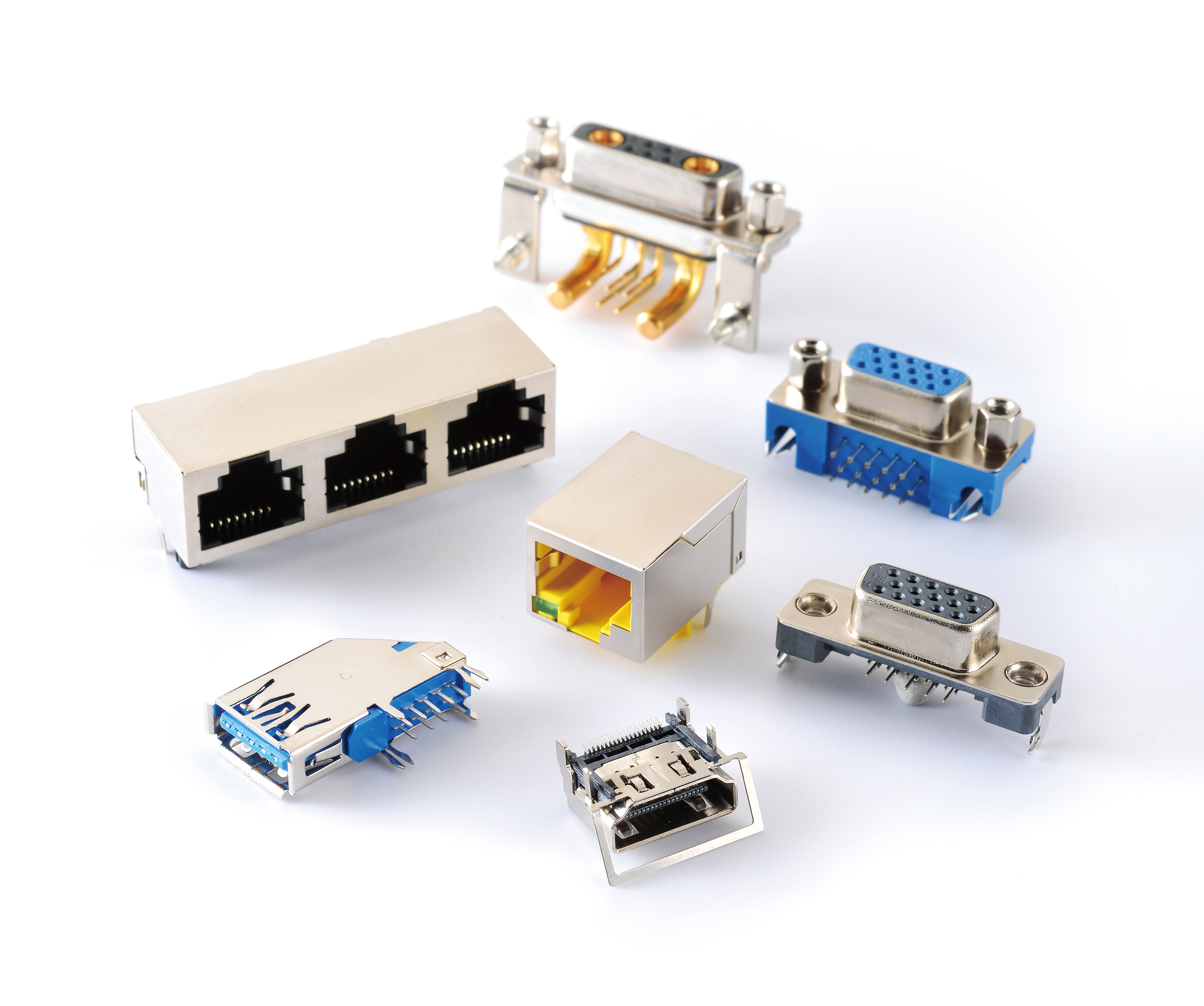

Our product lines include a wide range of connectors, terminals and cable assemblies, which are widely used in communications, home appliances, medical, security, new energy, industrial control and other fields.

The main products include: OEM/ODM various cable assemblies, wire-to-board connectors, automotive connectors, board-to-board connectors, I/O connectors, customized connectors, etc.

The above USB 2.0 Type A Connector are only some of our connectors and accessories, if you don't find the parts you need, please feel free to send us an inquiry for more solutions.
