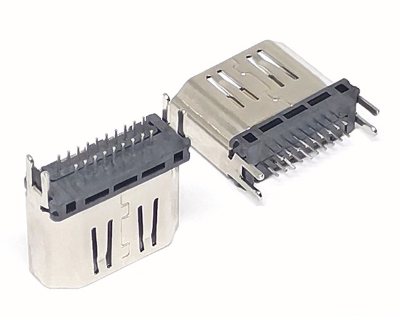

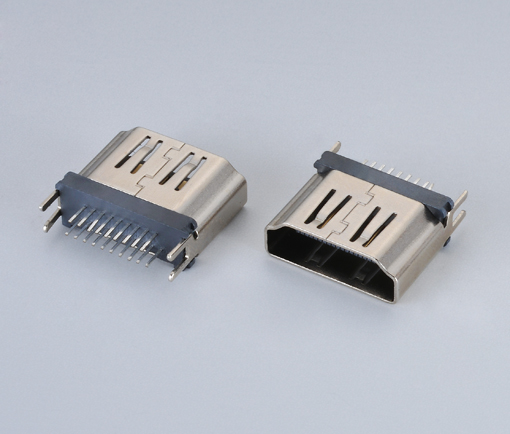

HDMI A-Type Female Straddle Mount Connector
Certification：
Company Information:
FAQ:
HDMI connectors look similar to USB connectors. In each case, the male sides of the connector usually protrude from the cable ends. They are typically intended for insertion into female connectors, sockets, or hubs that are recessed into the devices being linked.
Overview:
Overview:
A HDMI A-Type female straddle mount connector is a crucial component in electronic devices designed for high-definition multimedia interface (HDMI) connections. The "A-Type" designation refers to a specific standard of HDMI connector, characterized by its 19-pin configuration that facilitates the transmission of both high-quality video and audio signals. This type of connector is widely used in consumer electronics such as TVs, monitors, and projectors.
The term "female" indicates that this connector has receptacles or sockets that accept the pins of a corresponding male HDMI connector. This allows devices equipped with this connector to interface seamlessly with other HDMI-enabled equipment.
"Straddle mount" describes its mounting style: the connector is designed to be mounted directly onto the surface of a printed circuit board (PCB), rather than being inserted into a socket or slot. This method of mounting ensures a secure and compact attachment, which is beneficial for devices where space-saving is essential.
Feature:
Electrical Characteristics:
Rated Current: 0.5A Max
Rated Voltage: 40V Max
Contact impedance: 10mΩ Max
Insulation Impedance: 100MΩ Min @ 500V DC
Withstanding voltage: 500V AC /1min
Mechanical Characteristics:
Operating Temperature: -25℃～+85℃
Soldering temperature (LCP material): 240+/-5℃, time: 3+/-0.5sec
Solderability (LCP material): more than 90% of the soldered area @ Temperature: 260+/-5℃, Time: 7+/-0.5 sec.
Rated Current: 0.5A Max
Rated Voltage: 40V Max
Contact impedance: 10mΩ Max
Insulation Impedance: 100MΩ Min @ 500V DC
Withstanding voltage: 500V AC /1min
Mechanical Characteristics:
Operating Temperature: -25℃～+85℃
Soldering temperature (LCP material): 240+/-5℃, time: 3+/-0.5sec
Solderability (LCP material): more than 90% of the soldered area @ Temperature: 260+/-5℃, Time: 7+/-0.5 sec.
Application:
The HDMI A-Type female straddle mount connector is used primarily in electronic devices that require high-definition multimedia interface capabilities. Here are some specific applications where this type of connector is commonly found:
Consumer Electronics: Found in televisions, monitors, home theater systems, and gaming consoles, HDMI connectors allow for high-quality transmission of audio and video signals. They facilitate the connection between devices like Blu-ray players, set-top boxes, and streaming devices to TVs and monitors, ensuring users experience sharp, clear visuals and audio.
Professional Audio-Visual Equipment: Used in digital signage, video conferencing systems, and broadcast equipment, HDMI connectors support reliable transmission of uncompressed digital signals. They are crucial in maintaining high-resolution video quality for presentations, live broadcasting, and multimedia content distribution.
Computing Devices: Integrated into laptops, desktop computers, and digital cameras, HDMI connectors enable these devices to connect seamlessly to external displays, projectors, and monitors. This is essential for expanding screen real estate or sharing content during presentations and meetings.
Medical Imaging and Industrial Applications: In medical imaging equipment and industrial automation systems, HDMI connectors are used for video monitoring and control purposes. They ensure precise transmission of diagnostic images and video feeds in healthcare environments and support monitoring and control tasks in industrial settings.
Automotive and Aviation Systems: HDMI connectors are increasingly being integrated into automotive infotainment systems and in-flight entertainment systems in airplanes. They enable passengers to access high-definition video content and audio within vehicles and aircraft, enhancing the overall passenger experience.
Gaming and Multimedia Devices: Found in gaming consoles, DVD players, and media streaming devices, HDMI connectors enable seamless connectivity to display devices for immersive gaming experiences and media playback in homes and entertainment venues.
Overall, HDMI A-Type female straddle mount connectors play a crucial role in facilitating high-definition multimedia connectivity across a wide range of consumer, professional, industrial, and specialized applications, enhancing user experiences and enabling advanced multimedia functionalities.
