QUANXU SILICA DIOXIDE POWDER (HF-687) M1

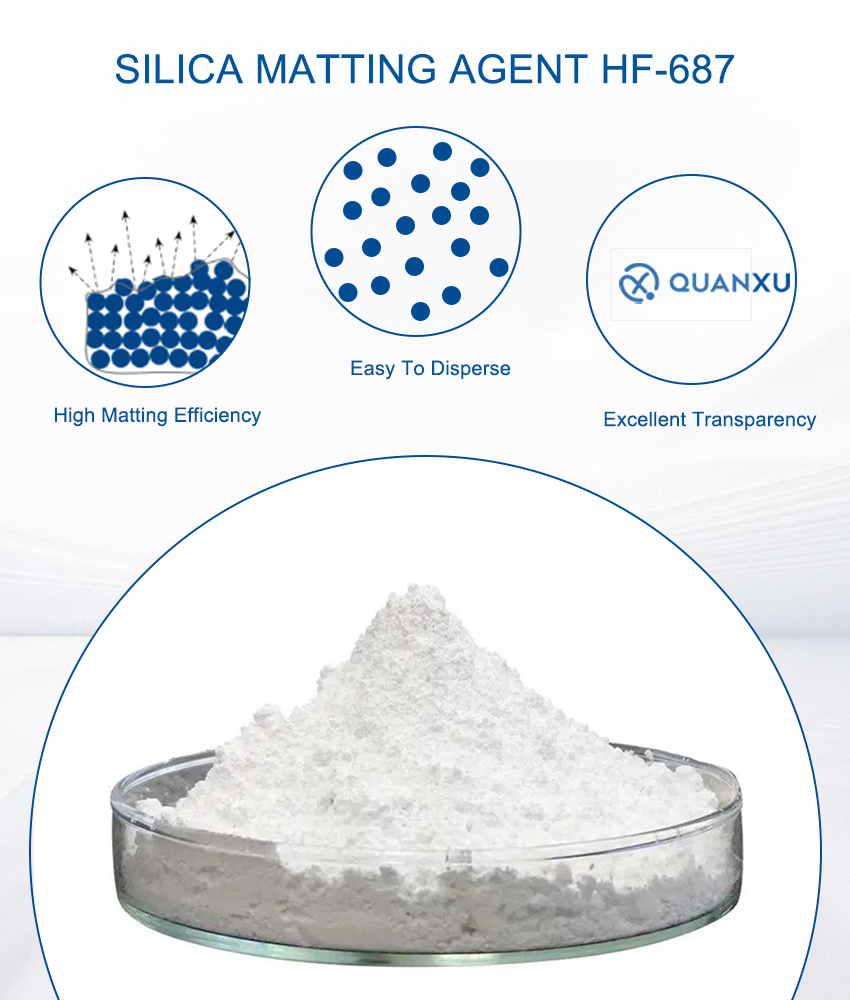

SKYSIL HF-687 SILICA MATTING AGENT FOR COIL COATING

HF-687 is a large-particle (10-11μm) silica matting agent developed based on the precipitation method. It is specially designed for coil coatings.

Through unique structural innovation and surface engineering, it achieves a double breakthrough in efficient matting and coating durability, and is

suitable for high-speed coating of metal sheets and harsh environmental protection needs.

- Precise particle control by precipitation method: a spherical porous structure (pore size 20-50nm, specific surface area 150-180㎡/g) is constructed

through a gradient precipitation process. The particle uniformity (PDI＜0.25) is better than similar products, ensuring the optical consistency of the

coating.

- Surface hybrid modification: Silane-wax composite coating forms a hydrophobic interface (water contact angle＞120°), blocks water and oxygen

penetration, and inhibits rust on metal substrates.

- Ultra-thin and efficient matting

10-11μm large particles form a "micron-level grating" effect in a 15-25μm thin coating, and through multiple reflections/scattering, the glossiness at

a 60° angle is as low as 1GU, which reduces the amount of addition by 30% (only 4-6%) compared to conventional particle size products, avoiding

the leveling defects of high-solid coatings.

- Structural reinforcement protection

Mechanical support: The particles interlock to form a three-dimensional skeleton, the compressive strength of the coating is increased to 50MPa

(ISO 604), and the sand and dust impact resistance (ASTM D968) performance is improved by 50%.

- Weathering upgrade: The large aperture structure disperses thermal stress, QUV 3000h aging ΔE <1.5, and salt spray resistance 2000h without

corrosion.

HF-687 takes the precipitation method large particle size technology as the core, providing an integrated solution of "matting-protection-process" for

coil coatings. It has been widely used in building curtain walls, home appliance color panels and other fields, helping to improve the coating life and

optimize the overall cost.

Item	HF-687	Surface Treatment	None
Content of SiO2,(dry basis) %≥	99	Porosity,ml/g	1.8-2.0
Oil absorption ml / 100g	260-300	Particle Size(Malvent),um	10-11
Loss on drying (105℃,2Hrs),%	≤5.0	PH	6.0-7.0
Ignition Loss(1000℃,2Hrs),%	≤7.0	Whiteness≥	95

QUANXU SILICA DIOXIDE POWDER (HF-687) APPLICATION 1

Anticorrosion Pigments, Inkjet Receptive Coating, Matting Agent
