Water Based Ink Spray On Glasses

Water based ink spray on glasses is specially designed for the decoration of curved cups. It has passed the food-grade certification, no heavy metals have been detected, and VOC is less than 1g/L. It provides a safe and environmentally-friendly spray coating for wine glasses, water cups and daily necessities, facing the cycle challenge of dishwashers.

Core equipment of intelligent production chain

Precision cleaning system

Glass Washer Machine integrates 60℃ alkaline spray (5% NaOH) and 40kHz ultrasonic wave to remove grease fingerprints for 8 seconds/cup. The residual particles are less than 5 μ m (in line with ISO 6206), and the risk of adhesion failure is reduced by 90%.

Efficient spraying curing ecology

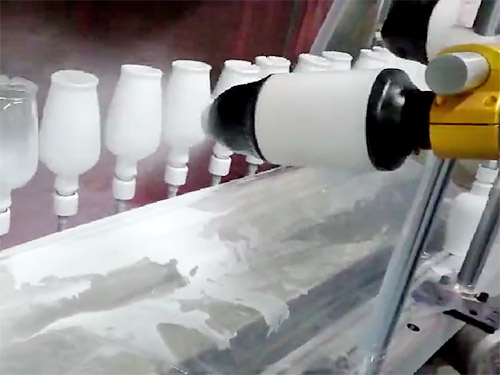

The automatic spraying line is equipped with a 0.3mm diameter atomizing spray gun, and the ink utilization rate is increased to 85% (30% less than that of the traditional process);

Conveyor Tunnel Dryer completes curing in six minutes with infrared and hot air (gradient of 60℃→120℃→80℃) in three-stage temperature zone, with energy consumption less than 0.8 kW h/㎡ to avoid thermal deformation of thin-walled cup.

Ultimate performance verification
