Product details

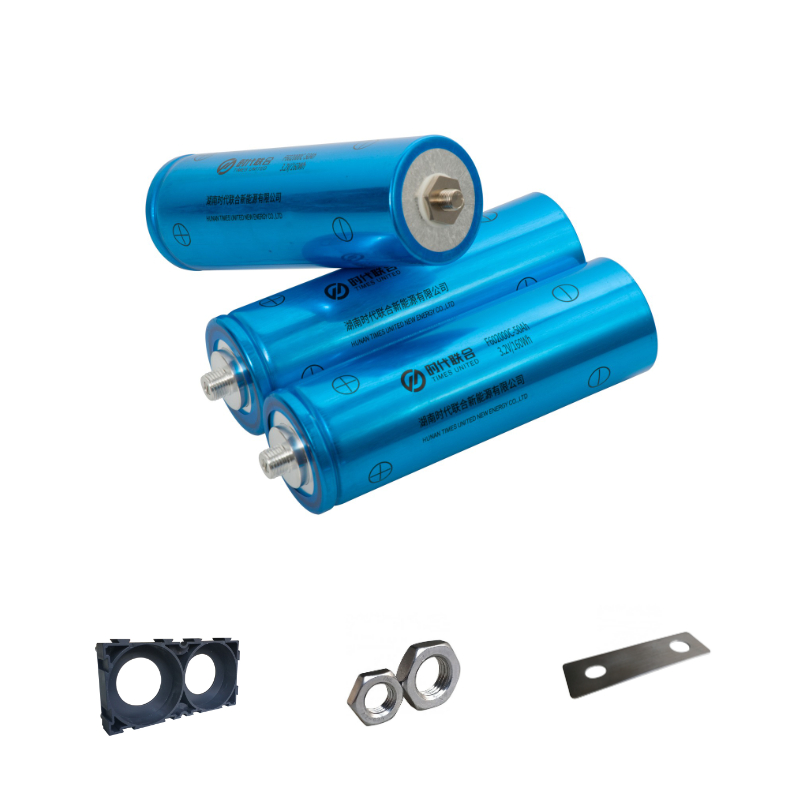

The 50ah LFP cylindrical cell uses an innovative lithium battery production process, low pollution and high quality. Independent development of low-pressure safety system, higher reliability.

Compared with the traditional cylindrical battery, based on maintaining high specific energy and high consistency, it has a high capacity, Low internal resistance, low-temperature rise, high rate, long life, high safety and other advantages. Suitable for new energy storage, steam Car, ship, warehousing logistics, construction machinery and other fields.

Cell Specification
Cell Specification
Item	Specification	Test method	Ref. Standard
Standard Capacity	50Ah	0.5C，2.5~3.65 V，25±2 ℃	GB/T 31486-2015
Nominal Voltage	3.2V	0.5C，25±2 ℃	GB/T 31486-2015
Gravitric Energy Density	≥145Wh/kg	0.5C，25±2 ℃	GB/T 31486-2015
Volumetric Energy Density	≥308Wh/L	0.5C，25±2 ℃	GB/T 31486-2015
Specific Power	≥400W/kg	50% SOC，10 s，25±2 ℃	GB/T 31486-2015
Charging Cut-off Voltage	3.65V	25±2 ℃
Discharging Cut-off Voltage	2.5V	25±2 ℃
Initial impedance	0.4±0.2mΩ AC 1kHz	25±2 ℃，AC 1kHz
Max. Continuous Charging Current	1C	25±2 ℃
Max. continuous discharging current	1C	25±2 ℃
RT cycle Life	3000Cycles≥80%	1C/1C 2.5 V~3.65 V,25±2 ℃
High temperature	1200Cycles≥80%	1C/1C 2.5 V~3.65 V,45±2 ℃
Operating environment	Charging)：0 ℃~55 ℃
	(Discharging)：-20 ℃~55 ℃；
relative humidity：	≤85% RH
Cell weight	1100±100g
Pack mode	The cell needs to be horizontally packed.
