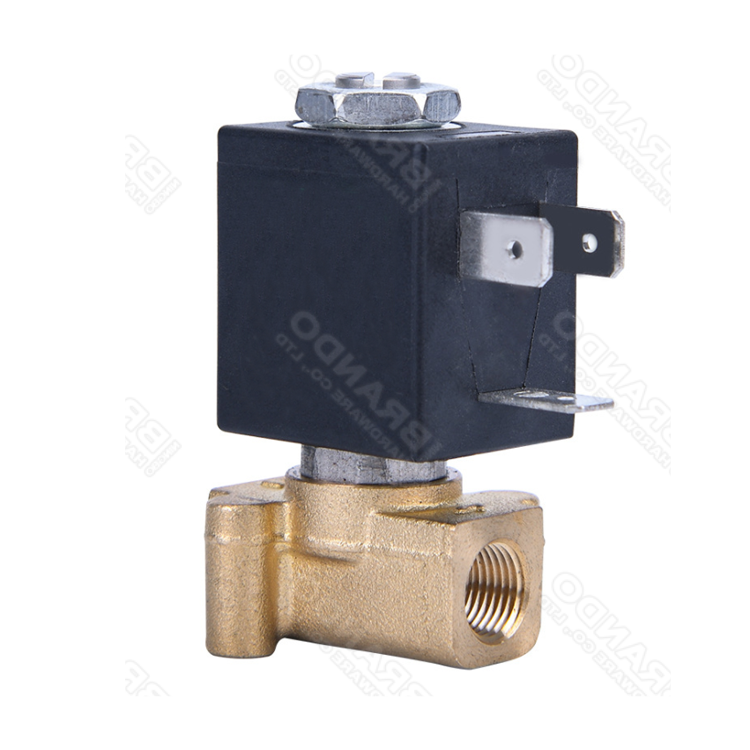

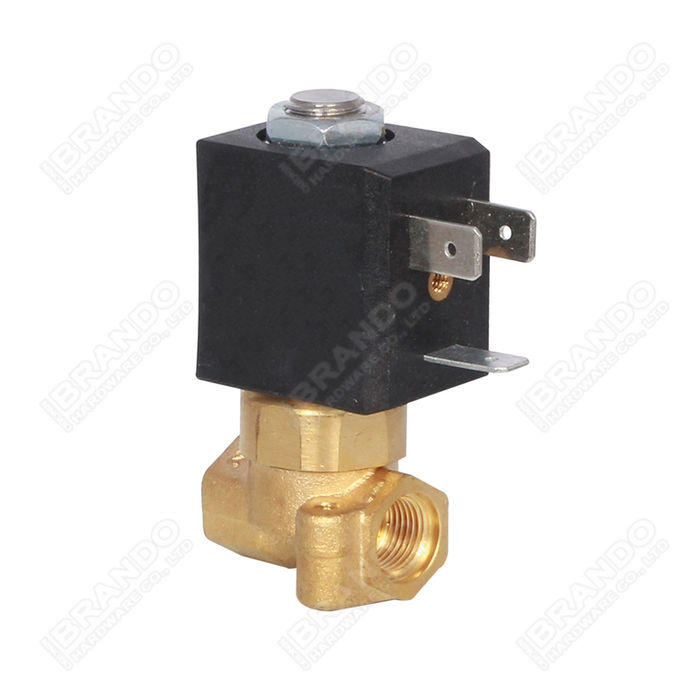

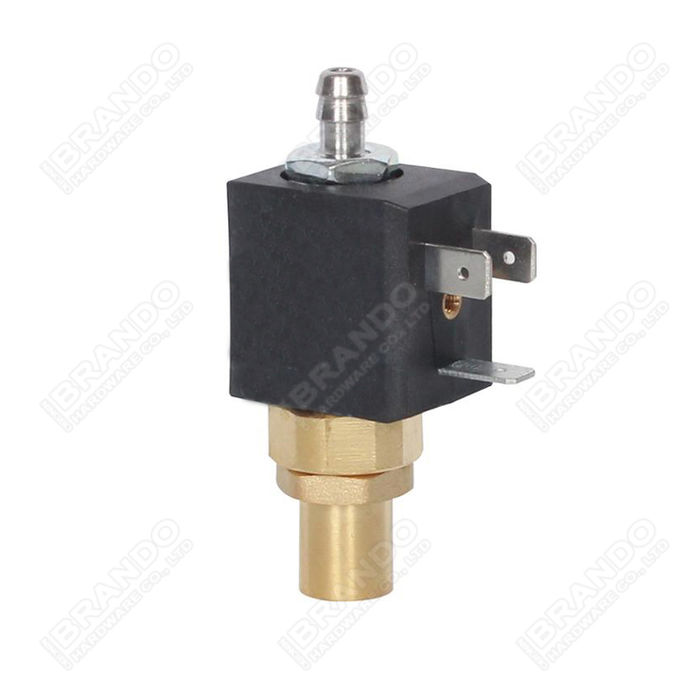

2 Way Coffee Machine Solenoid Valve
5 year ago
2 Way Coffee Machine Solenoid Valve 110VAC 220VAC
Product Feature:
1. Working Medium: Water, Air, Oil, Hot Water, Steam, etc
2. Working Temperature: -30 to +150℃ (FKM)
3. Working Pressure: 0 to 20 Bar
4. Connection: Threaded
5. Orifice Size: 1.0mm, 1.5mm, 2.0mm, 2.6mm
6. Valve Function: 2 Way Normally Closed
7. Valve Operation: Direct Acting
8. Coil Voltages: DC: 12VDC, 24VDC; AC: 24VAC, 110VAC, 120VAC, 220VAC, 230VAC (50/60Hz)

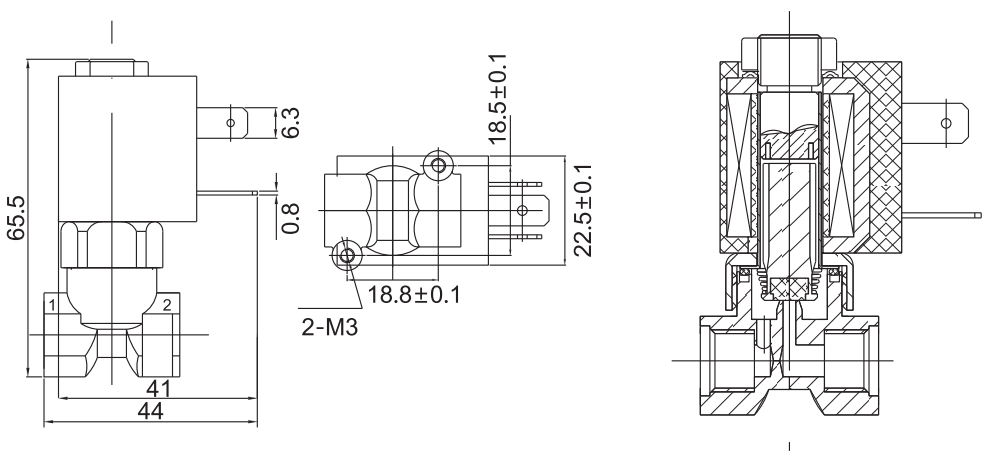

Dimension and Data of Coffee Maker Solenoid Valve:
|
Working Medium
|
Water, Air, Oil, Hot Water, Steam, etc
|
|
Working Temperature
|
FKM: -30 to +150℃
|
|
Working Pressure
|
0 to 20 Bar
|
|
Body Port size
|
1/8''
|
|
Port Thread
|
G, NPT
|
|
Orifice Size
|
1.0mm, 1.5mm, 2.0mm, 2.6mm
|
|
Function
|
2 Way Normally Closed
|
|
Operation
|
Direct Acting
|
|
Voltage
|
DC: 12VDC, 24VDC
AC: 24VAC, 110VAC, 120VAC, 220VAC, 230VAC (50/60Hz)
|
|
Tolerance
|
±10%
|
|
Material
|
Body: Brass, Stainless Steel
Seal: FKM
Armature Tube: Stainless Steel 304
Plunger: Stainless Steel 430F
Stop: Stainless Steel 430F
Spring: Stainless Steel 304
Shading ring: Stainless Steel 304
|
Brando Solenoid Valve Factory Production Video:

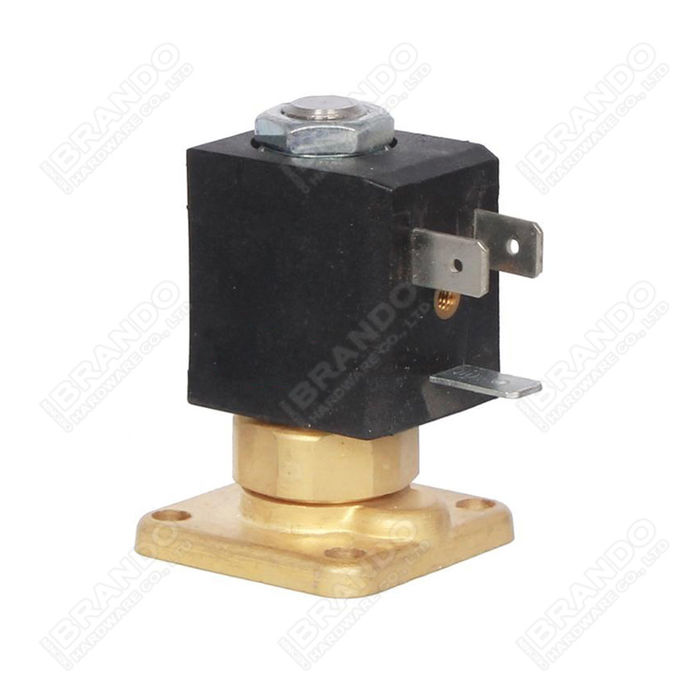

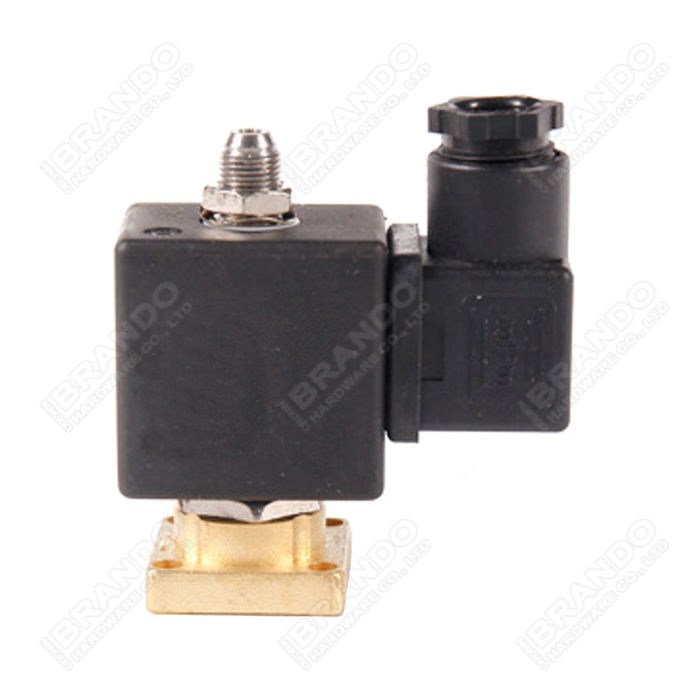

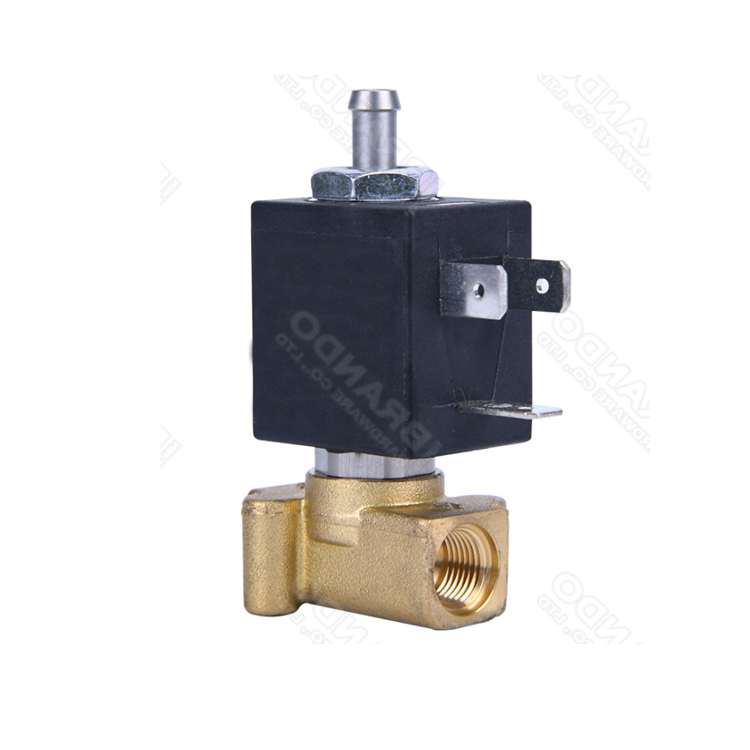

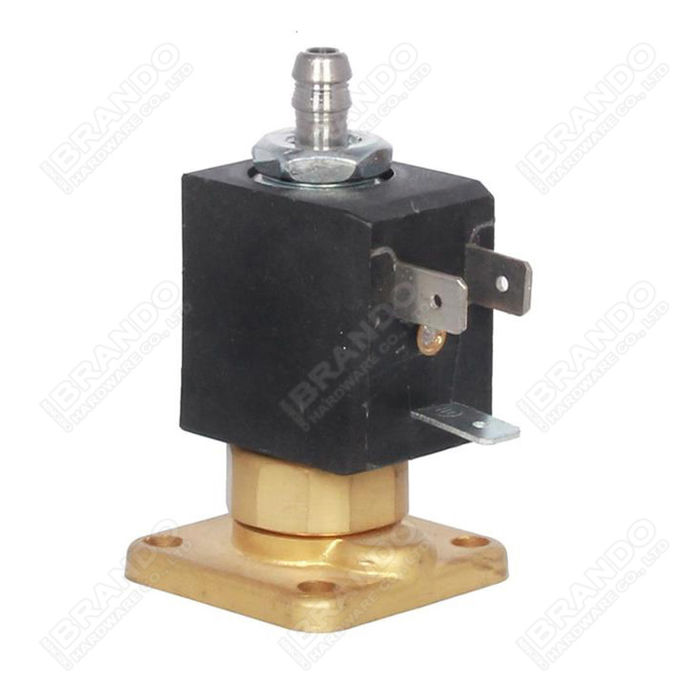

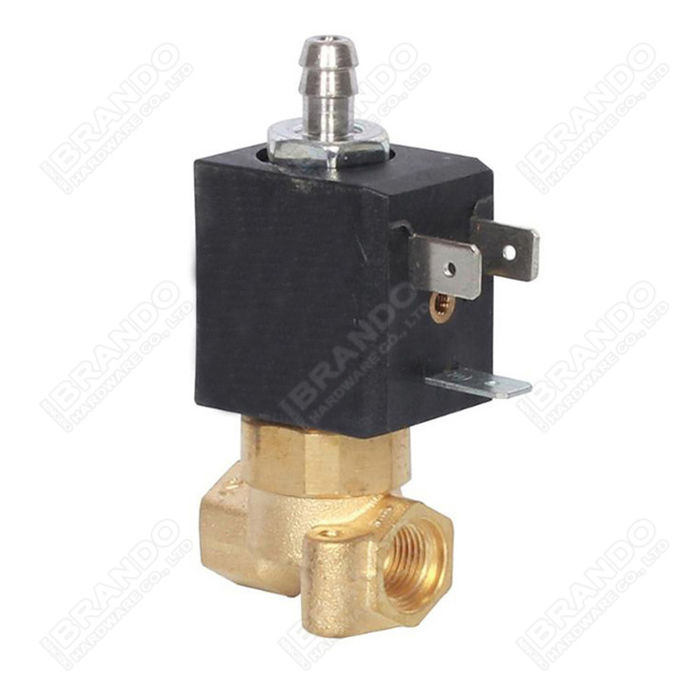

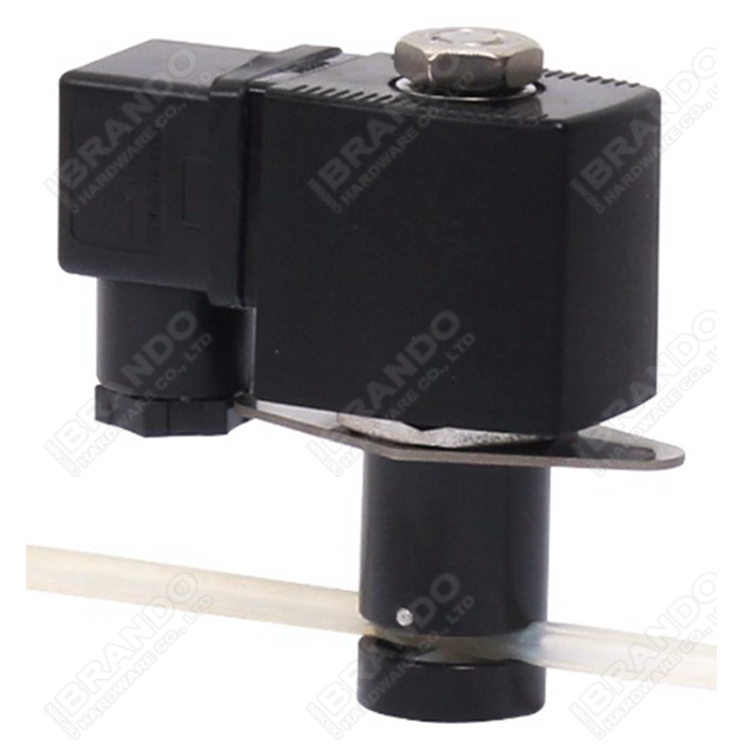

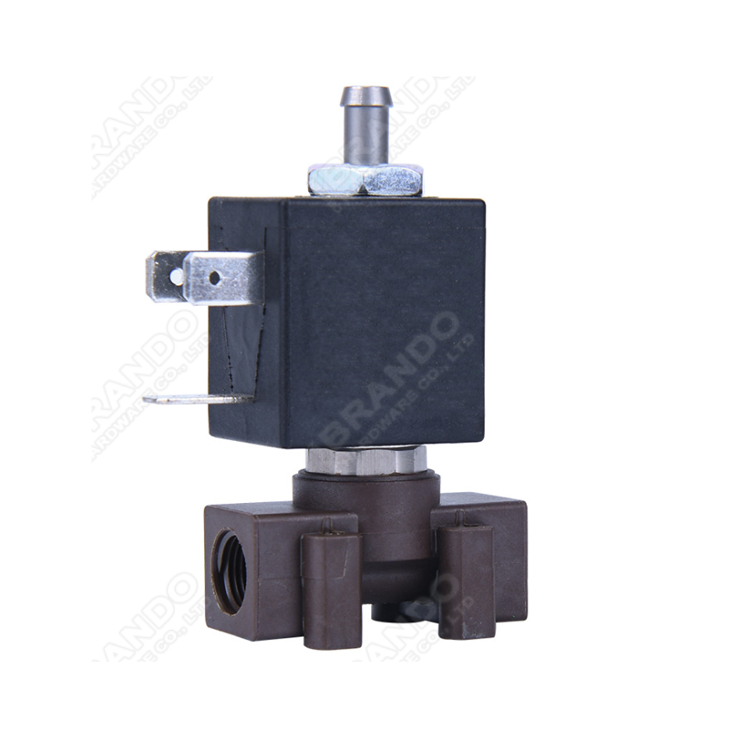

More Coffee Machine Solenoid Valves for you to choose:
| Brass Solenoid Valve | |||
|
|
|
|
|
|
|
|

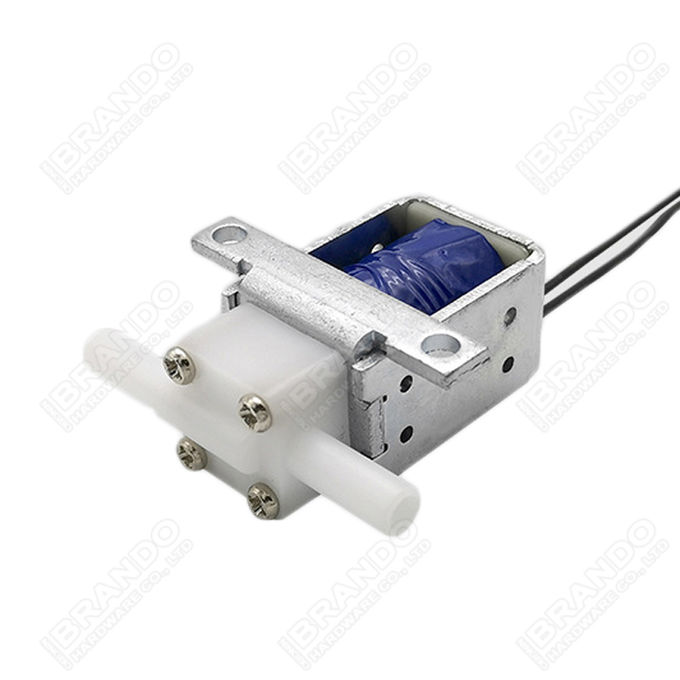

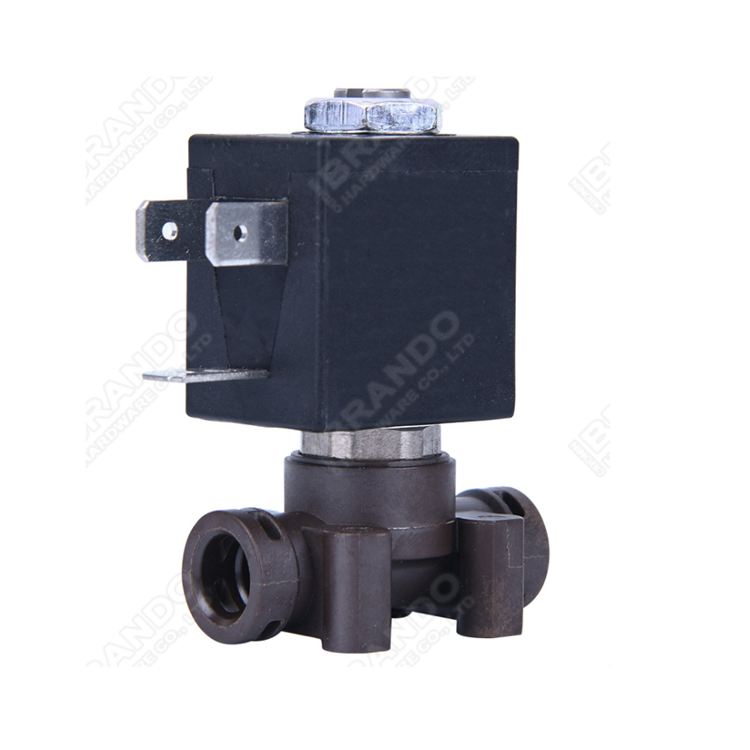

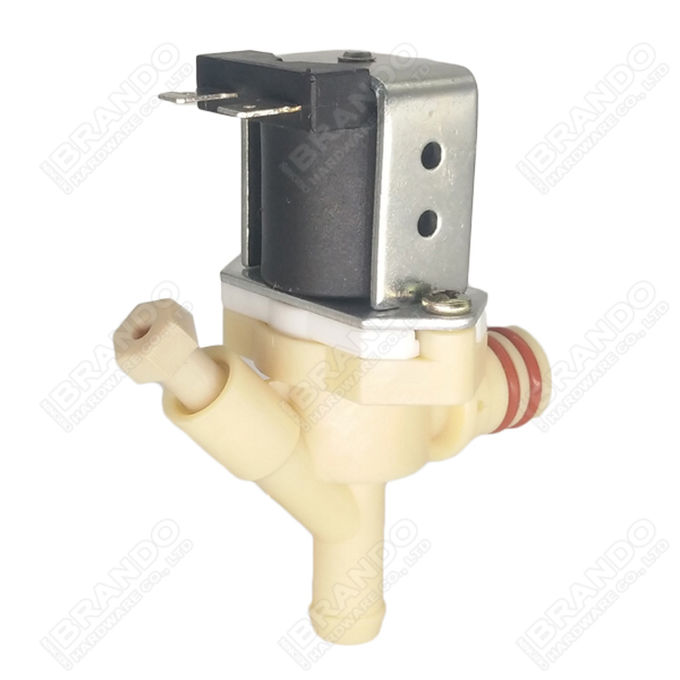

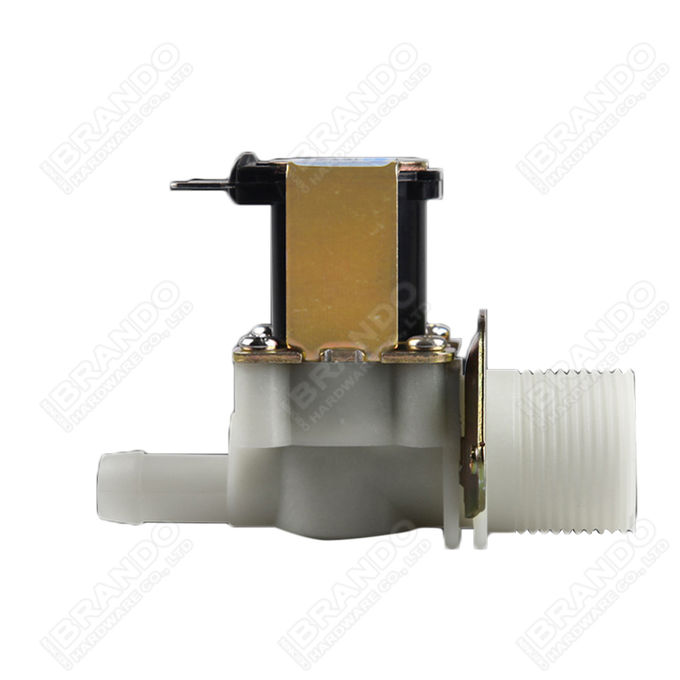

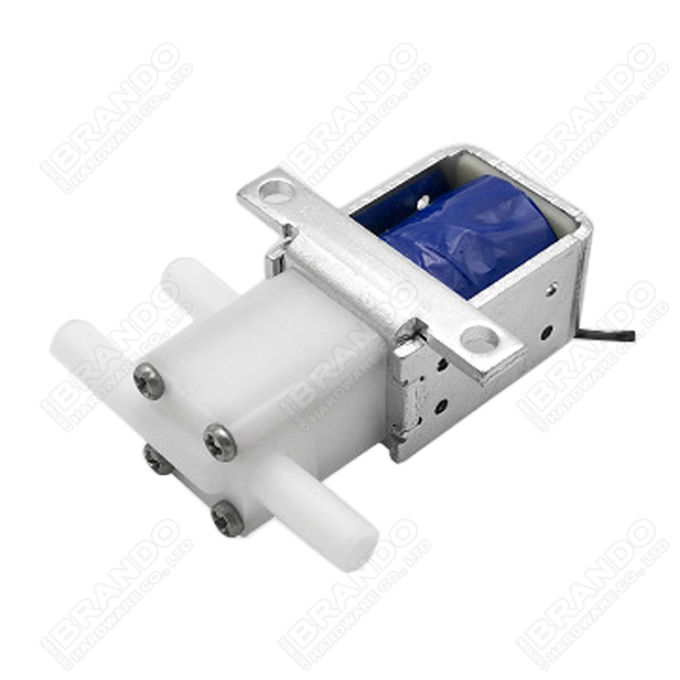

| Plastic Solenoid Valve | |||
|
|
|
|
|
|
|
|

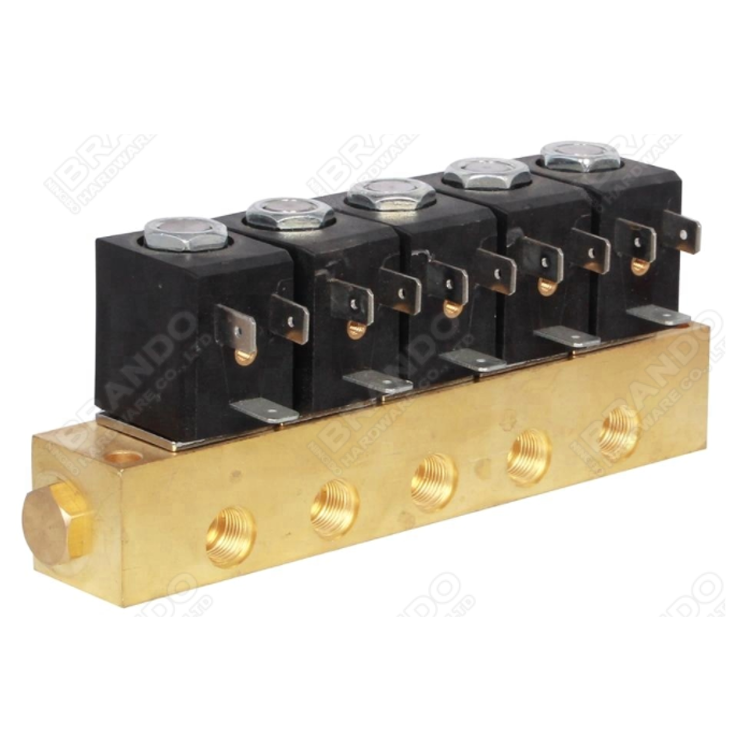

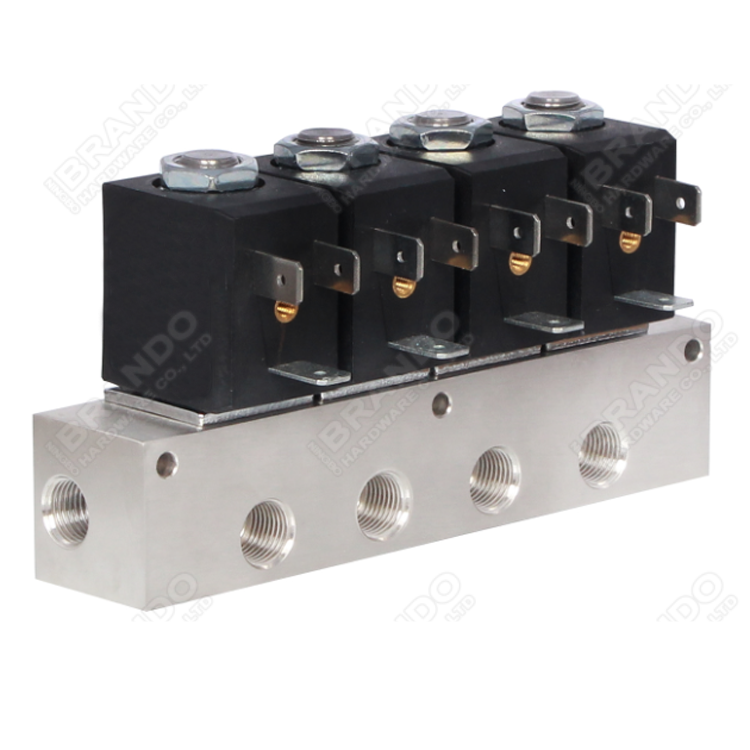

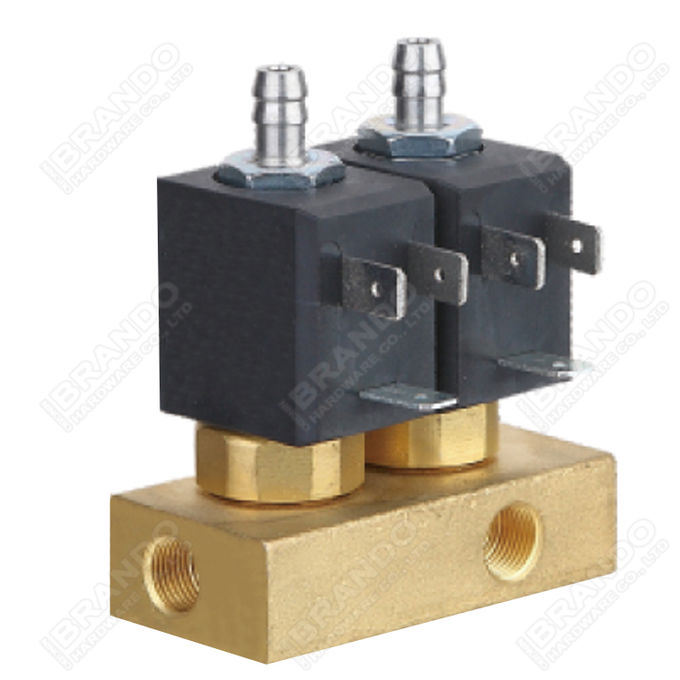

| Manifold Solenoid Valve | ||
|
|
|
