Liugong 836 radiator

10 month ago

16 0 

Henan Hanfeng Construction Machinery Co., LTD

4 year

Product details

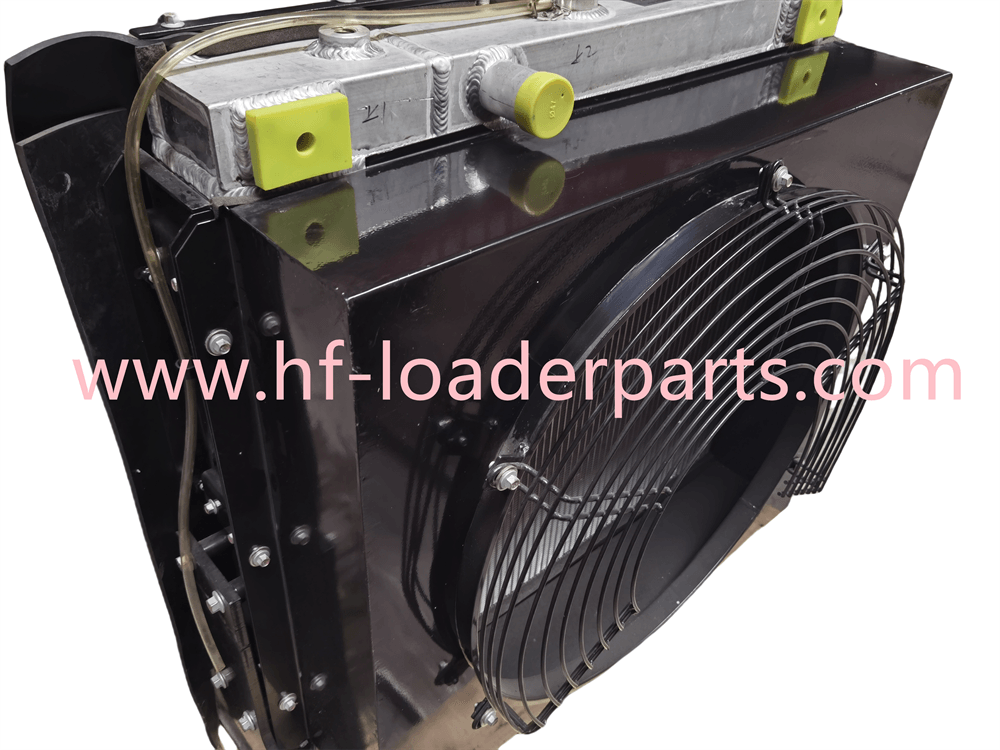

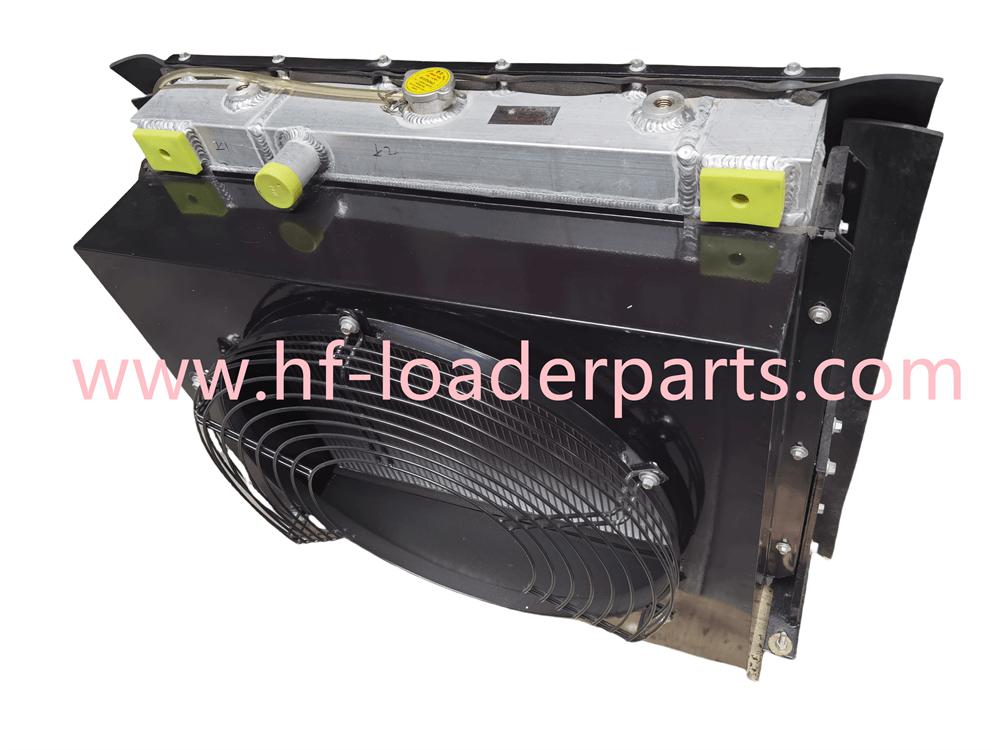

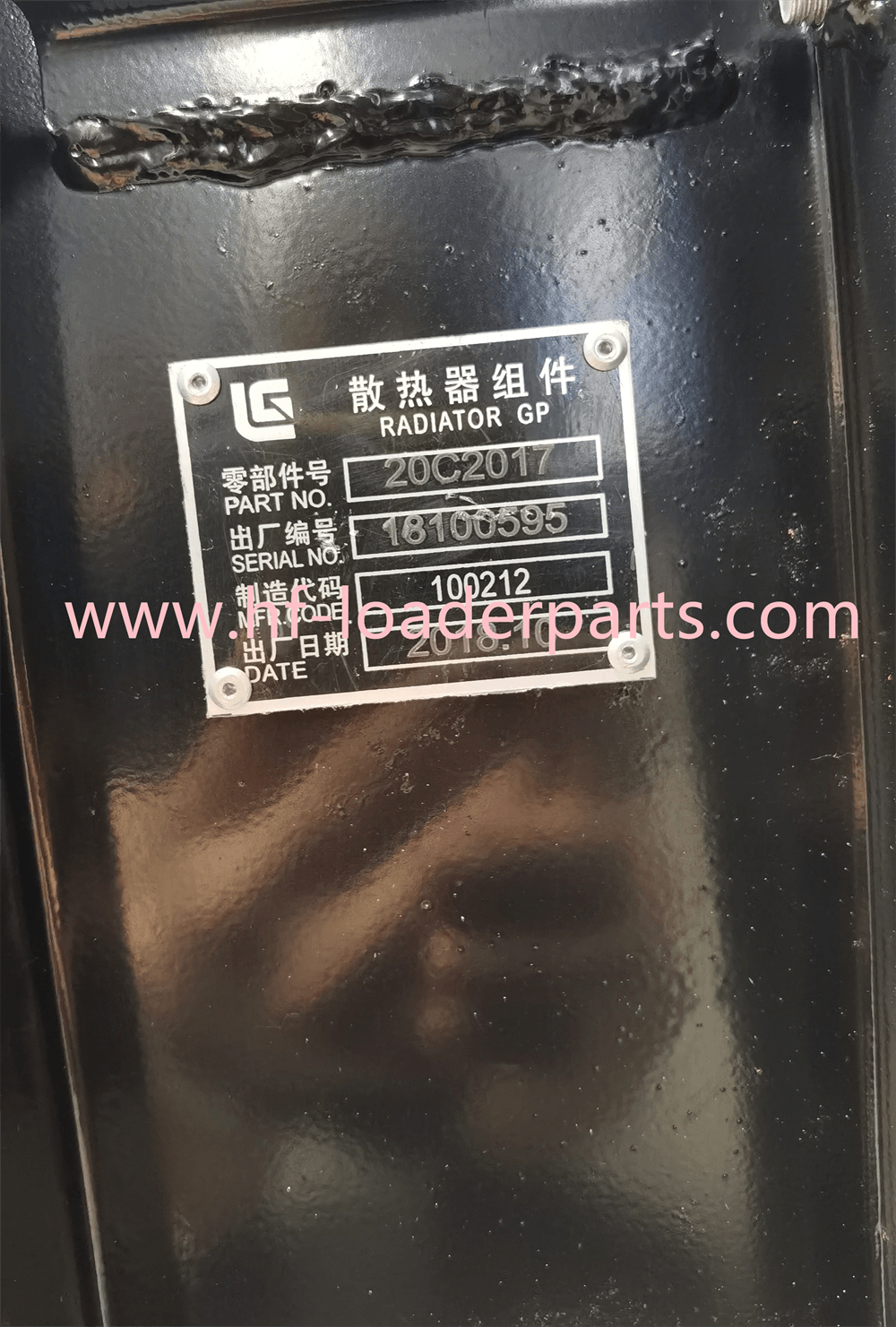

Liugong 836 radiator component 20C2017，Liugong 836 radiator assembly 20C2017，Liugong 836 water tank assembly 20C2017，The Liugong 836 radiator assembly includes: water radiator, variable pitch oil radiator, air guide cover, protective net, etc., which keep the engine, gearbox, and hydraulic torque converter working at appropriate temperaturesStructural composition of loader radiator

The radiator structure of the loader is mainly composed of radiator frame, radiator body, core, condenser, fuel radiator, etc.

Radiator frame: It is a square frame structure, including the bottom plate, the side plate in the middle and the connecting beam at the top. The design of the frame contributes to the stability and structural strength of the entire radiator.

Radiator body: It includes multiple cores, which are arranged and fixed in the radiator frame. The modular installation method is adopted. Each core can be installed with different thicknesses to meet the extreme heat dissipation capacity of different working conditions or whole machine configurations. This design improves the maintenance convenience of the radiator.

Core: It is a single-row arrangement method, and the modular installation method is adopted, so that the core can be replaced, which increases the flexibility of the radiator.

Condenser: It is installed at the rear of the radiator frame, and is hinged to the radiator frame through one end of the condenser bracket. It can be rotated, which is convenient for flushing and cleaning when the radiator is blocked. ‌

In addition, the loader's radiator also uses a flexible structure and collection component design, so that when cleaning is needed, the cleaning tool can be inserted into the interior through the flexible structure to clean the heat dissipation core without disassembling parts, making it convenient and quick to maintain the radiator. ‌ Liugong 836 radiator component 20C2017
