Tower Online UPS

HT22 Series High Frequency Online UPS

6/10kVA    2-Phase Input/2-Phase Output

◆Application

IDC(Internet Data Center), network, servers and workstations, control system, communication system, office, PC etc.

◆Feature

●True Online Double Conversion echnology

●Wide input voltage range

●DSP based technology

●Advanced PFC technology, input PF>99%

●Strong charging capacity

●Output isolation transformer

●Compatible with the generator

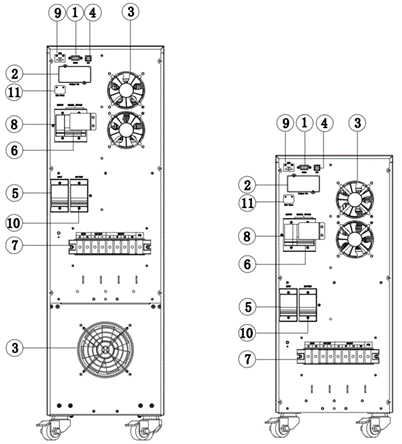

◆Rear Panel

① RS232
② Smart slot
③ Fan
④ USB
⑤ Input breaker
⑥ Maintenance bypass
     breaker
⑦ Terminal block
⑧ Output breaker
⑨ EPO
⑩ Battery breaker (optional)
⑪ Maint status port

10KS/6KS                                                   10KL/6KL

◆Specification

 Model Overview:

1. HT2206KS - 6kVA/6kW
2. HT2206KL - 6kVA/6kW
3. HT2210KS - 10kVA/10kW
4. HT2210KL - 10kVA/10kW

Input Specifications:

• Rated Voltage: 208/220/230/240Vac, L1+L2+PE
• Voltage Range: 110~300Vac
• Frequency Range: 40~70Hz
• Power Factor: ≥0.99
• THDi: ≤5% (linear load); ≤8% (non-linear load)

Output Specifications:

• Rated Voltage: 208/220/230/240Vac or 110/115/120Vac, L1+N1+L2+N2+PE
• Voltage Regulation: ±1%
• Frequency: 50/60Hz ± 0.1%
• THDu: ≤2% THD (linear load); ≤5% THD (non-linear load)
• Transfer Time: Zero
• Crest Ratio: 3:1

Overload Capacity:

• In Line Mode

• Supports 102%~105% load for 30 minutes
• Supports 105%~125% load for 10 minutes
• Supports 125%~150% load for 30 seconds
• Supports >150% load for 200 milliseconds

• In Battery Mode:

• Supports 102%~105% load for 30 minutes
• Supports 105%~125% load for 10 minutes
• Supports 125%~150% load for 30 seconds
• Supports >150% load for 200 milliseconds

Battery Specifications:

• Battery Type: Sealed lead acid, maintenance-free
• Nominal Voltage: 192Vdc / 240Vdc
• For HT2206KS:
• Battery: 7Ah*16/20 pcs
• Charging Current: 1A
• For HT2206KL:External Battery
• Charging Current: 1~12A, settable
• For HT2210KS:
• Battery: 9Ah*16/20 pcs
• Charging Current: 1A
• For HT2210KL:External Battery
• Charging Current: 1~12A, settable

Efficiency:

• Line Mode: 93%
• Battery Mode: 92.5%
• ECO Mode: 98%

Communication Interface:

• RS232, USB, SNMP card (optional), and Dry contact card (optional)

Environmental Specifications:

• Operating Temperature: 0~40℃
• Humidity: 0~95% (non-condensing)
• Noise Level: ≤50dB at 1 meter away
• Altitude: Up to 1000m without derating

Physical Specifications:

• Dimensions:
• T2206KS & HT2210KS: 250523842 mm
• HT2206KL & HT2210KL: 250523602 mm
• Weight:
• HT2206KS: 88/96 kg
• HT2206KL: 51 kg
• HT2210KS: 106/116 kg
• HT2210KL: 58 kg

All specifications are subject to change without prior notice.

The HT22 Series High Frequency Online UPS is available in 6kVA/6kW and 10kVA/10kW models, designed for critical applications like data centers, network servers, and communication systems. It features true online double-conversion technology, a wide input voltage range, DSP-based technology, and advanced PFC with an input power factor over 99%. It is compatible with generators, has strong charging capacity, and offers multiple communication interfaces including RS232 and USB.
