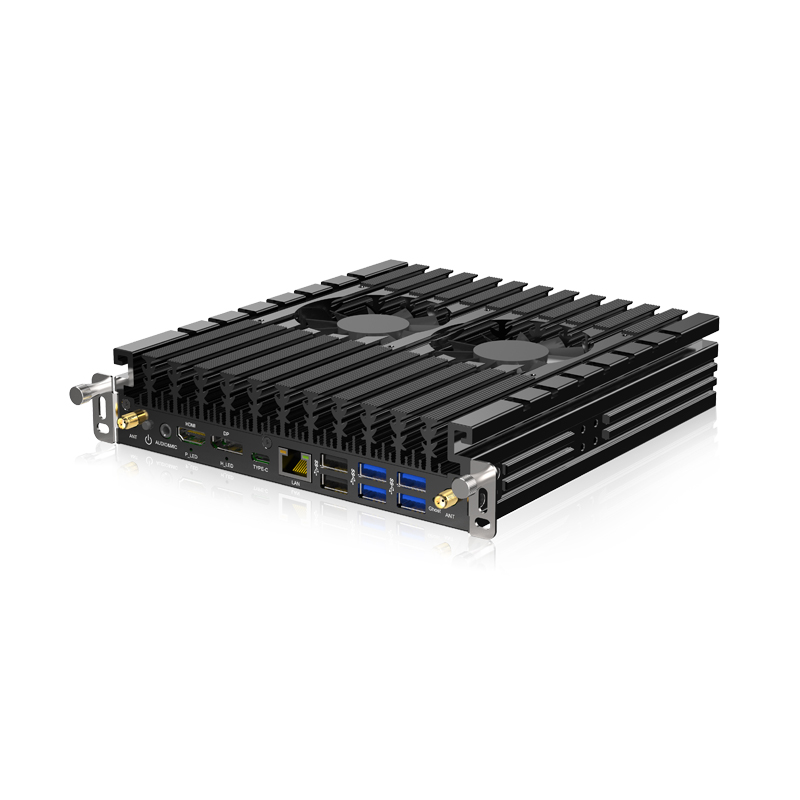

A06 Series OPS computer
13 month ago
Product details
OPS Computer Professional Technical Analysis
1. Open Architecture Standards and Hardware Specifications
OPS (Open Pluggable Specification) follows the VESA OPS-C/SDM standard and adopts a modular plug-in design. The computing module is decoupled from the display device through a standardized interface. Typical hardware configurations include:
Processor support: compatible with Intel's 12th/13th generation Core i3-i9, Celeron and AMD Ryzen embedded processors, TDP range 15W-65W;
Storage expansion: standard 2 DDR4 SO-DIMM slots (maximum 64GB), M.2 NVMe SSD (supports PCIe 4.0×4) and 2.5-inch SATA hard drive slot;
Display output: native support for 4K@60Hz dual-screen output (HDMI 2.0+DP 1.4), some models are compatible with 8K ultra-high-definition resolution.
2. Industrial-grade heat dissipation and reliability design

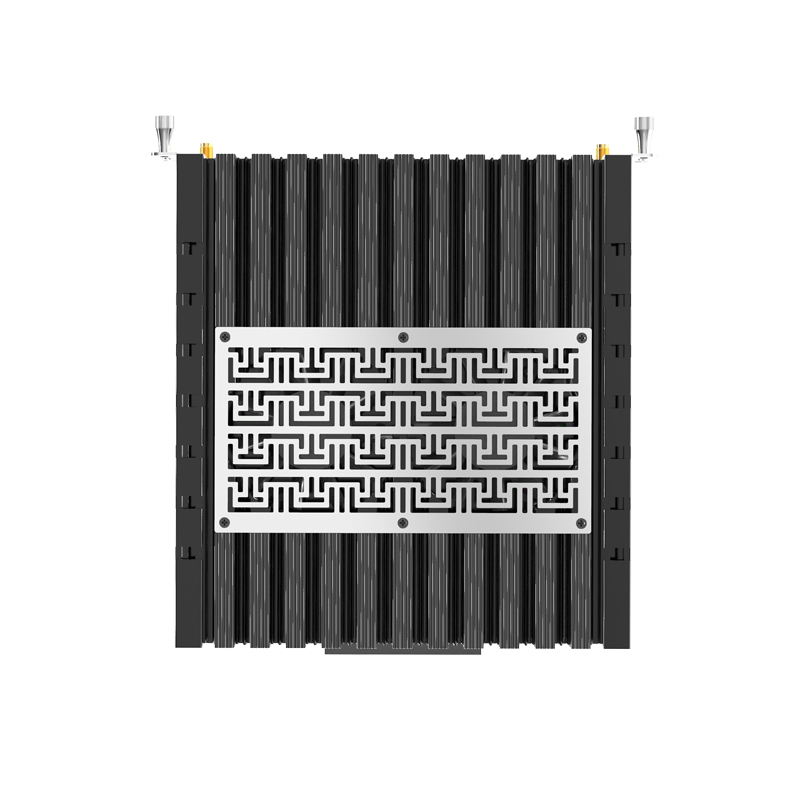

Cooling architecture: copper tube direct contact + fin array heat dissipation module, with intelligent PWM fan, CPU temperature fluctuation ≤5℃ under 40℃ environment;
Environmental adaptability: supports -10℃~50℃ wide temperature operation, humidity 5%-95% non-condensing, passed ISO 16750 vehicle-grade vibration test;
Hardware redundancy: key interfaces support hot plug (such as USB 3.2 Gen2×4, 2.5G network port), built-in Watchdog hardware monitoring, automatic restart time of downtime <15 seconds.
3. Interface scalability and protocol support

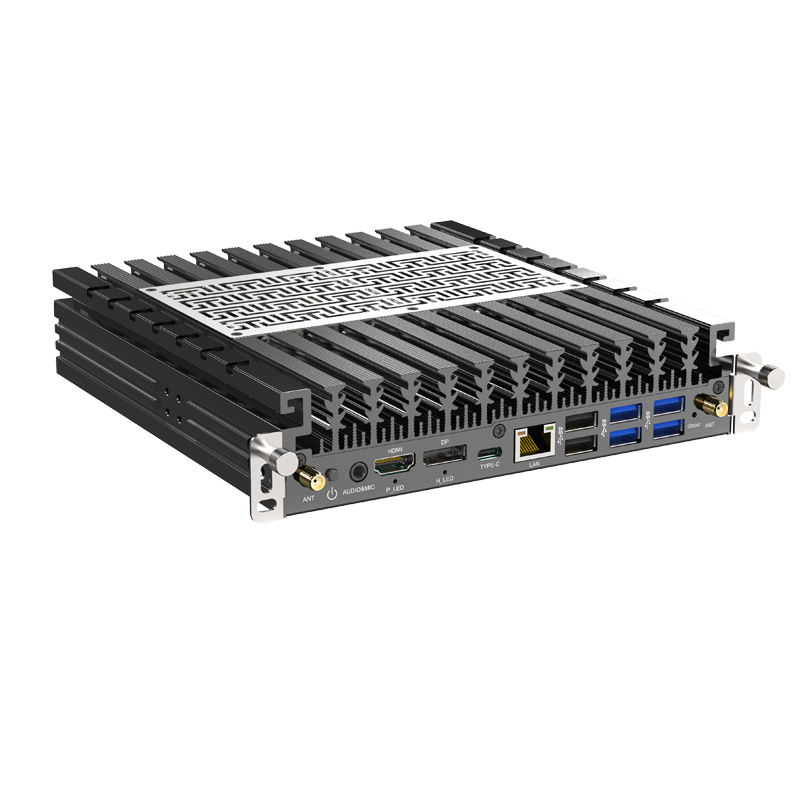

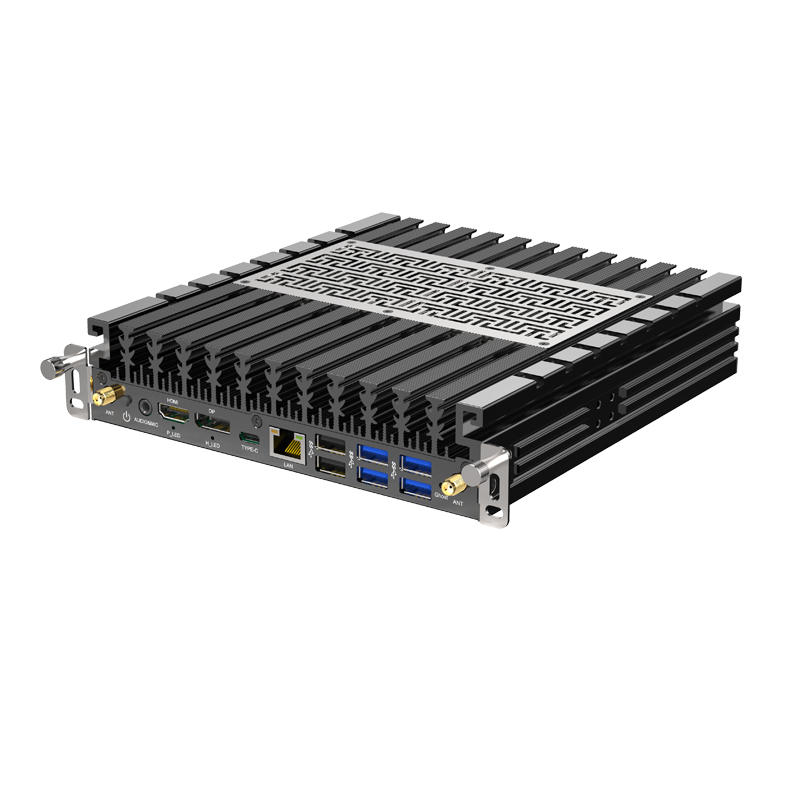

Video interface: front HDMI+DP, rear VGA+HDMI 2.1, support eARC audio return;
Data interaction: standard 4×USB 3.2 Gen2, 2×COM port (RS232/485 optional), optional PCIe x4 expansion slot;
Network configuration: integrated 2.5Gbps wired network port + Wi-Fi 6E (AX210 module), support IEEE 802.11k/v/r seamless roaming.
4. System compatibility and management solutions
Dual system support: natively compatible with Windows 10 IoT/11, Linux Ubuntu 22.04, and can switch to Android 12 system through BIOS;
Remote management: Support Intel vPro/AMD PRO technology to achieve KVM over IP, remote firmware upgrade and asset monitoring;
Security mechanism: Equipped with TPM 2.0 chip, supports UEFI secure boot, full disk encryption (BitLocker/SED) and firmware-level virus protection.
5. Industry application technology scenarios
Education interactive terminal:
Support 20-point infrared touch + whiteboard software API docking, courseware annotation delay <15ms, adapted to smart classroom multi-screen linkage scenarios.
Medical image processing:
Through DICOM grayscale calibration, support dual 4K medical display output, GPU acceleration to achieve real-time reconstruction of CT/MRI images.
Industrial automation control:
Compatible with OPC UA protocol, supports Modbus/TCP, CANopen industrial bus, MTBF (mean time between failures)> 50,000 hours.
6. Standardization certification and compliance
Hardware certification: FCC Class A, CE EMC, RoHS 3.0, UL 62368-1;
Industry adaptation: Passed NEMA 4X protection certification (optional), meeting special environmental requirements such as food processing and medical disinfection.
This architecture achieves hardware decoupling through standardized interfaces, allowing display devices and computing modules to iterate independently, reducing maintenance costs by 30% compared to traditional embedded solutions, while supporting 7×24 hours of continuous operation, suitable for commercial and industrial scenarios that require high availability.
| Processor | System Chipset | intel® H510 Express |
| CPU Model | I3 10100<Primary Frequency 3.6G>4 Core 8 Threads I5 10400<Primary Frequency 2.9G>6 Core 12 Threads I5 11400<Primary Frequency 2.6G>6 Core 12 Threads I7 10700<Primary Frequency 2.9G>8 Core 16 Threads I7 11700<Primary Frequency 2.5G>8 Core 16 Threads |
|
| Memory | Technology | 1 x SODIMMs DDR4 |
| Memory | DDR4-4G;DDR4-8G;DDR4-16G; | |
| Display | Front End Output | DP-Max.3840 x 2160@60Hz HDMI-Max.3840 x 2160@30Hz |
| JAE End | HDMI-Max.3840 x 2160@60Hz | |
| Processor graphics card | Model | CPU integrated graphics |
| Hard Disk | SSD | m.2 2280 1TB |
| WIFI | Interface | M.2 PCIe 2230 |
| Support | 2.4+5g dual frequency) | |

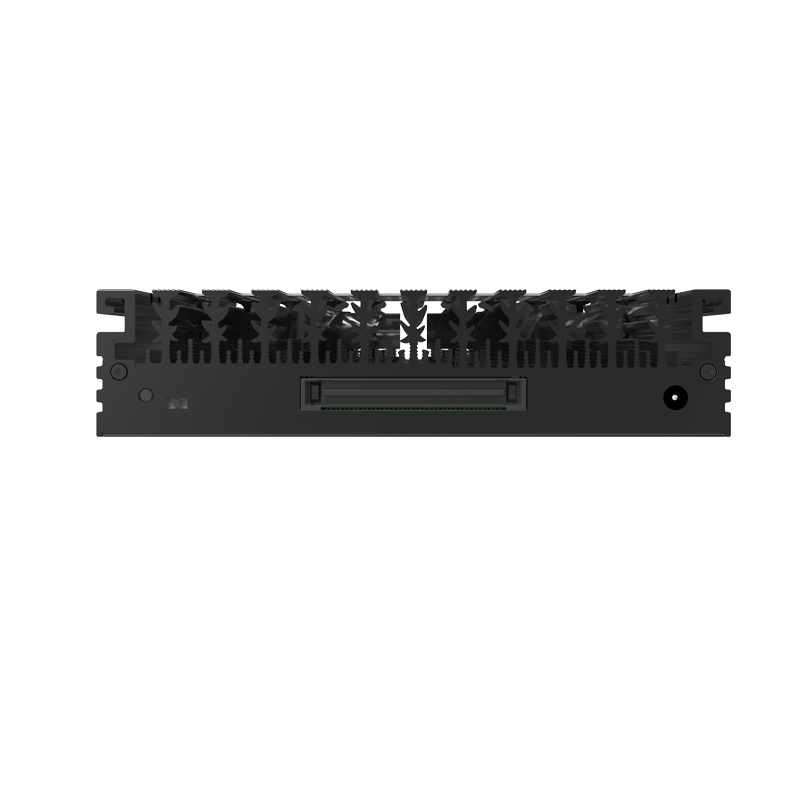

| I/O Interface | JAE Connector | 1(JAE TX25 80-PIN) |
| LAN | 1x10/100/1000Mbps(RJ45) | |
| USB | 4*USB3.0 & 2*USB2.0 | |
| Type-c | 1x Type-c 3.0 | |
| Audio frequency | LINE OUT*1 MIC IN*1 |
