400425-142 400425-117
4 year ago
Product Description:
ASCO type 14mm hole diameter, 40.3mm height, 44.5mm width.Replaced for SCG353A047, SCG353A050, SCG353A051 Dust Collector Fliter System Pulse Jet Valve. MXX size with spade plug connection, Insulation Class F; Temperature Class T; DC 24V.
1. Product Name: ASCO Replacement Solenoid Coil
2. Fitted Valve: ASCO Pulse Jet Valve, such like SCG353A043, SCG353A044, SCG353A047, SCG353A050, SCG353A051.
3. Voltages: 24VDC, 48VDC, 24VAC, 48VAC, 110VAC, 115VAC, 220VAC, 230VAC (50/60Hz)
4. Power: 15W, 18W, 21W, 30W, 20VA, 28VA
5. Connector Type: DIN 43650 Form A
6. Insulation Class: H, F
7. Temperature Class: T, B, F

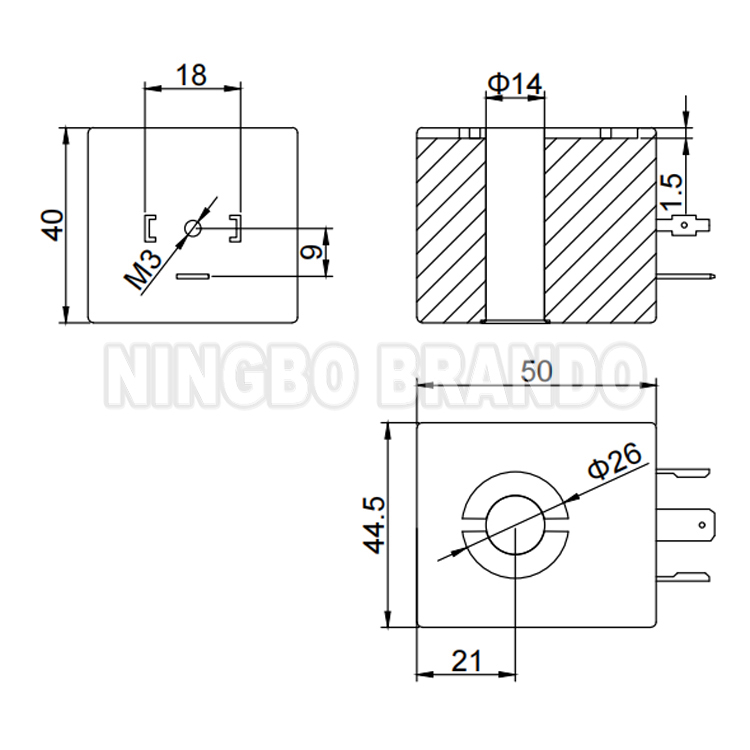

Main Dimension:
| Ordering No | BB14040007 |
| Hole Size | 14mm |
| Height | 40mm |
| Width | 44.5mm |
| Connector | DIN 43650 Form A |
| Insulation Class | F, H |
| Voltages | AC230V, AC115V, AC48V, AC24V, DC24V |
| Powers | 9.5W, 10.5W, 11.2W |
| Application | ASCO Pulse Solenoid Valve |
|
BRANDO Model
|
BAPC214041405
|
|
Plunger Tube Material
|
Stainless Steel
|
|
Seal Material
|
NBR
|
|
Fitted Pulse Valve Model
|
SCG353A047
SCG353A050 SCG353A051
|
Related Products:
 |
 |
 |
| Pulse Valve Armature | Pulse Valve Diaphragm | Pulse Valve Coil |
More Details:

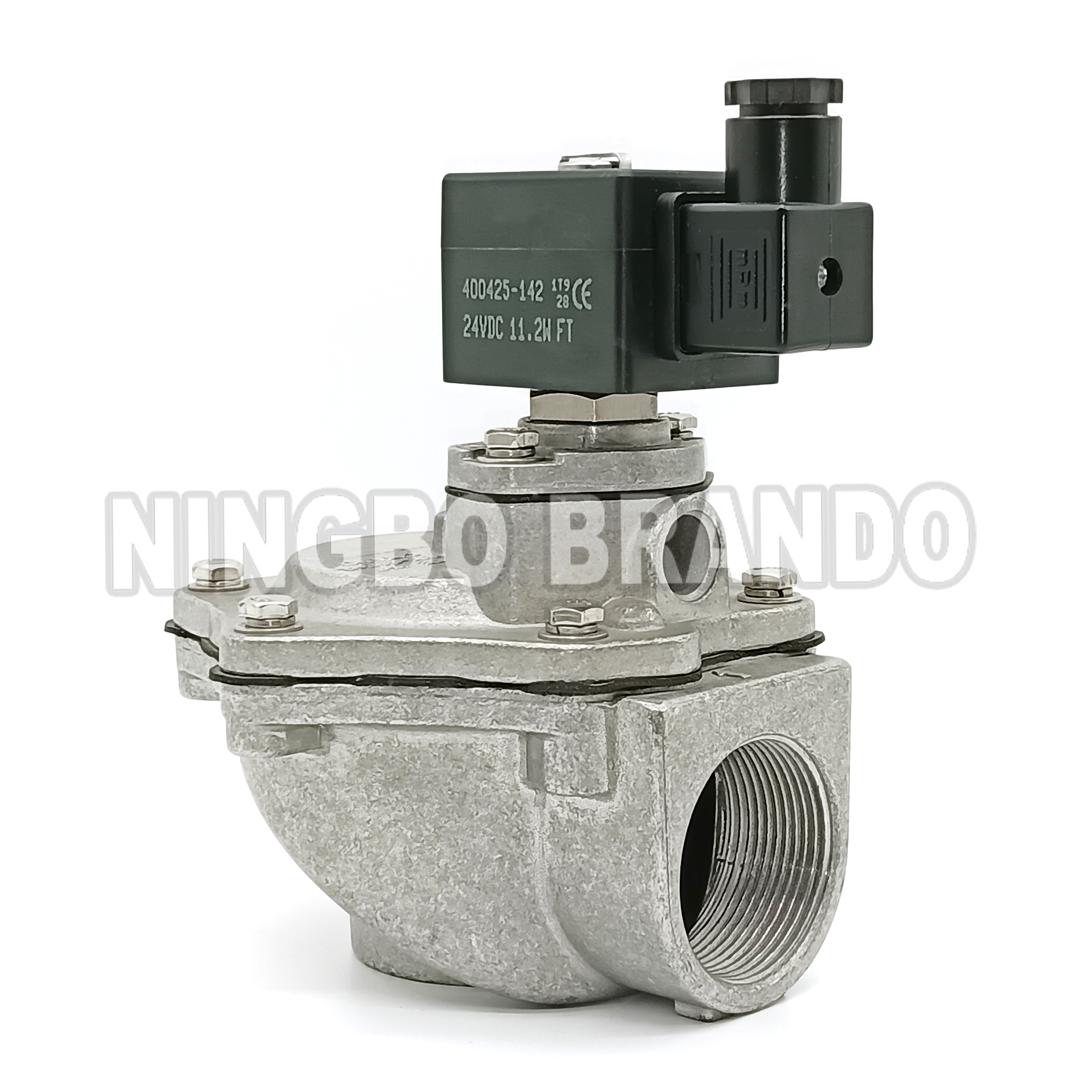

Detailed Images of ASCO Replacement Solenoid Coils:
Stocks of ASCO Type Solenoid Coil:
Factory production video of Solenoid Coil:
Packing & Shipping:
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
