Product details

Danfoss Type Solenoid Coil 018F6282 230V 018F6252 240V

This solenoid coil is used for danfoss refrigeration solenoid valve. Ordering Code: 018F6257, 018F6259, 018F6261, 018F6251, 018F6252, 018F6253, 018F6265, 018F6260, 018F6264, 018F6280, 018F6282; Coil Type: BF024AS, BF048AS, BF115AS, BF230AS, BF240AS, BF380AS, BF024BS, BF115BS, BF220BS, BF110CS, BF230CS; Voltage: 24VAC, 110VAC, 220VAC; Power: 21VA, 10W, 18W; Connector: Cable; Protection Class: IP67; Insulation Class: H.

Ordering Code of Solenoid Valve Coil:

Coil type	Supply voltage	Power	Frequency (Hz)	Ambient temperature	Ordering Code
Coil type	Supply voltage	Power	Frequency (Hz)	Ambient temperature	BE-coils with terminal box	BF-coils with cable
BE024AS	24V AC	10W 21VA	50	80	018F6707	018F6257
BE048AS	48V AC				018F6709	018F6259
BE115AS	115V AC				018F6711	018F6261
BE230AS	220V-230V AC				018F6701	018F6261
BE240AS	240V AC				018F6702	018F6252
BE380AS	380V-400V AC				018F6703	018F6253
BE024BS	24V AC		60		018F6715	018F6265
BE115BS	115V AC				018F6710	018F6260
BE220BS	220V AC				018F6714	018F6264
BE110CS	110V AC		50/60	50	018F6730	018F6280
BE230CS	230V AC		50/60		018F6732	018F6282
BE012DS	12V DC	18W	DC		018F6756
BE024DS	24V DC	18W	DC		018F6757

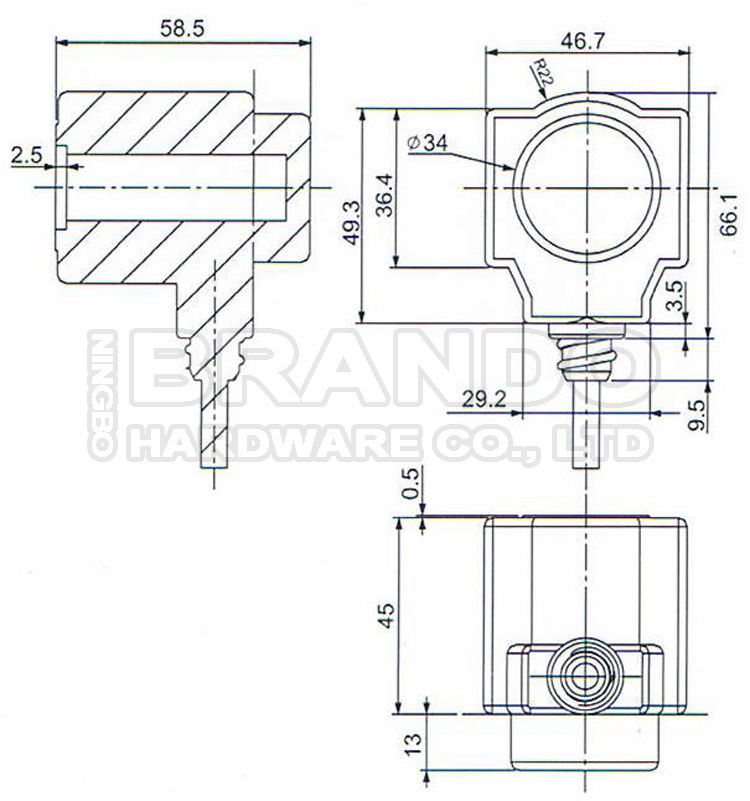

Dimension & Data of BF Coil & Armature:

BRANDO Model	BB15058555
Coil Type	BF
Voltage	24VAC, 110VAC, 220VAC (50/60Hz)
Power	21VA, 10W, 18W
Connector	Cable
Protection Class	IP67
Insulation Class	Class H

BRANDO Model	BAPC215047522
2 Way or 3 Way	2 Way
NC or NO	NC
Plunger Tube Material	Stainless Steel
Moving Core Material	430FR
Shading Ring Material	Copper
Seal Material	PTFE
Seat Type	Thread
