Product details

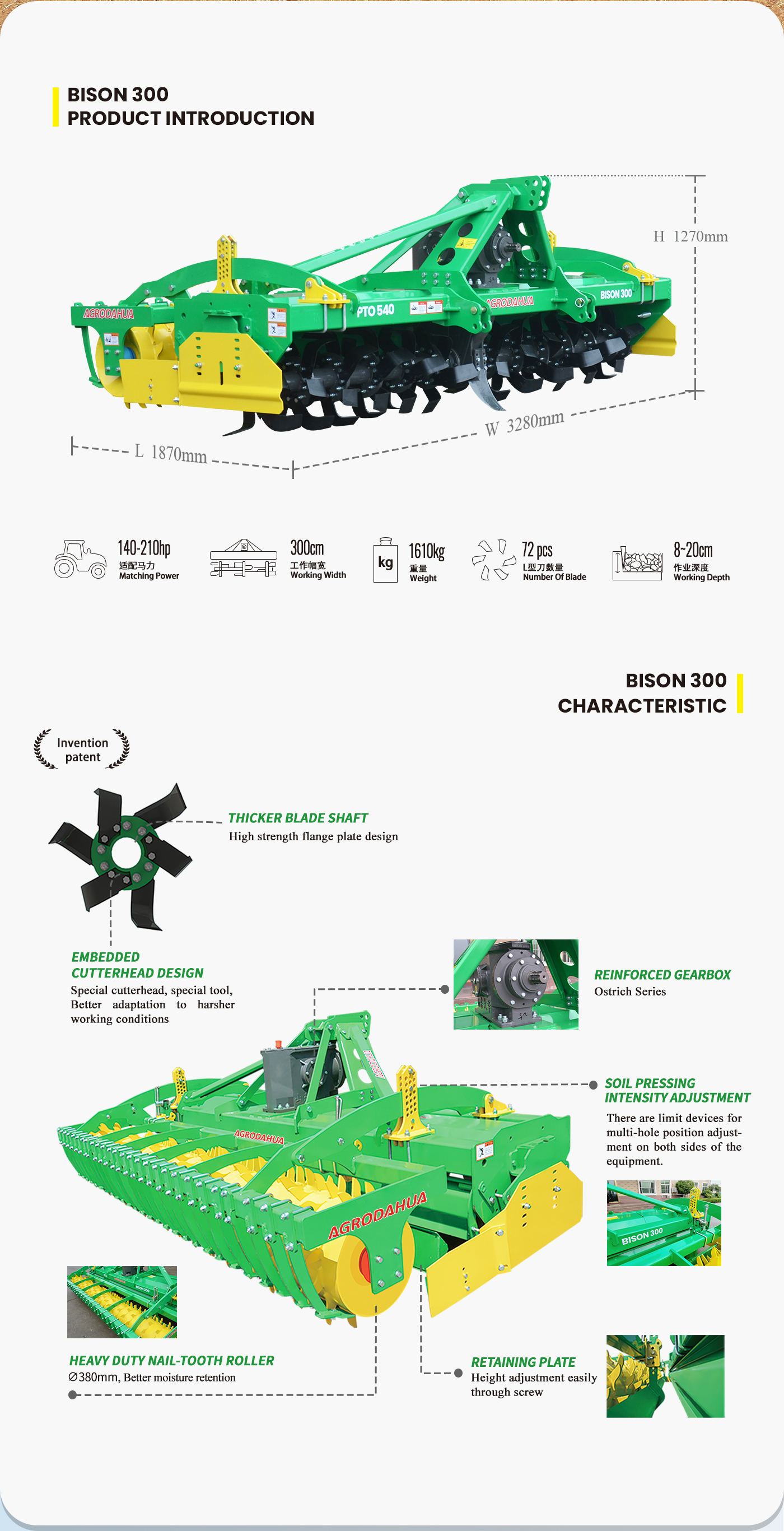

Bison 300

The Bison 300 Super Rotate Harrow is matched with a 140-210 horsepower tractor, with a working width of 300cm and a total weight of 1610 kilograms.

It is equipped with 72 reclamation knives and is suitable for farm reclamation, land cultivation and tidying, and seedbed tidying operations.

It has strong soil crushing ability and can make the soil finely divided in one operation.

The soil and fertilizer are evenly mixed, and the ground is flat, meeting the requirements of dry land sowing or paddy field planting.

It is conducive to achieving agricultural time, improving efficiency, and fully utilizing the power of the tractor. The working depth can reach 8-25cm.

characteristic:

1. The AGRODAHUA Super Rotate Harrow Bison 300 model adopts a large diameter 380mm heavy-duty nail toothed compression roller.

2. The AGRODAHUA Super Rotate Harrow Bison 300 model adopts Ostrich Series gearbox series.

3. The AGRODAHUA Super Rotate Harrow Bison 300 model uses a retaining plate that can be easily adjusted in height through a screw.

4. The AGRODAHUA Super Rotate Harrow Bison 300 model uses a compression roller position that can be adjusted through a porous position.

5. The AGRODAHUA Super Rotate Harrow Bison 300 model adopts a thickened cutter shaft and high-strength flange design, with an embedded cutter head for better tool stability and adaptability to harsher working conditions.

In addition, the Super Rotate Harrow Bison series also includes 250, 280, 330, 360, 380, 400, and 420 models,

which are suitable for small tractors, garden farmland, small farm operations such as land reclamation, land consolidation, and rotary tillage.

You can choose the Super Rotate Harrow Bison 250, Bison 280, Bison 300, and Bison 330 models,

which are matched with 130-220 horsepower tractors and have a plowing range of 250cm-330cm.

For large-scale farms with thousands or tens of thousands of hectares,

you can choose the Super Rotate Harrow Bison 380, Bison 400, and Bison 420 models,

which are matched with 180-300 horsepower tractors and have a plowing range of 380cm-450cm,

to meet your perfect land preparation needs

型号 MODEL	外形尺寸 TOTAL (mm)			重量 WEIGHT	刀盘 FLANGE	刀 BLADE	工作幅宽 Tilling width	配套动力TRACTOR
	宽 Width	长 Length	高 Height	kg	个 pcs	把 pcs	mm	HP

BISON 200	2280	1870	1270	1200	8	60	2000	110~140
BISON 230	2580			1320	10	60	2300	120~160
BISON 250	2780			1420	10	60	2500	130~180
BISON 280	3080			1520	12	72	2800	130~200
BISON 300	3280			1700	14	84	3000	140~210
BISON 330	3580			1780	14	84	3300	160~220
BISON 360	3880			1860	14	84	3600	180~240
BISON 380	4080			1980	16	96	4800	200~260
BISON 400	4280			2060	16	96	4000	220~280
BISON 420	4480			2180	18	108	4200	240~300
