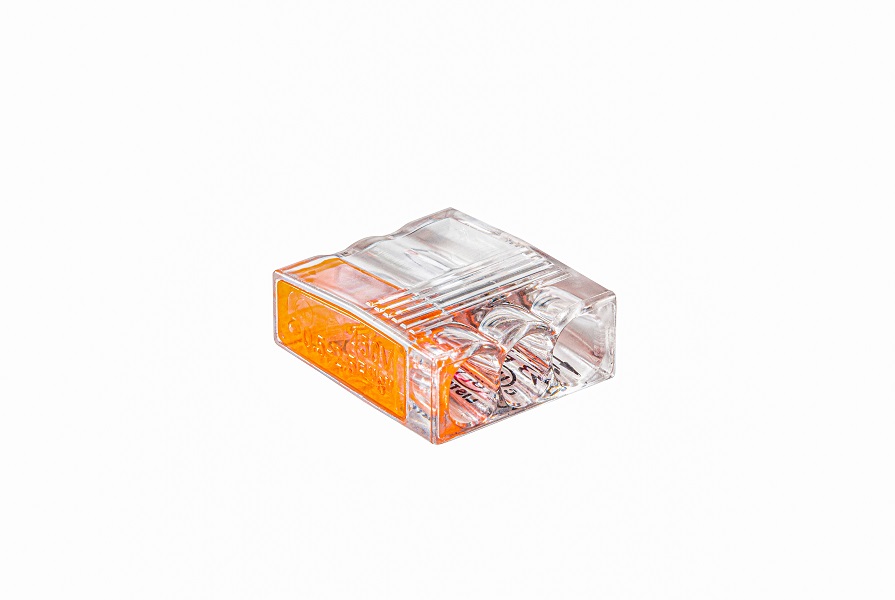

push wire connectors and terminal blocks
2 year ago






Materials:
Housing: polycarbonate & polypropylene(v2)
clamping unit: copper & stainless steel
cover color: grey
Packing info:
600 pcs per bag, 10 bags per carton
Specifications:

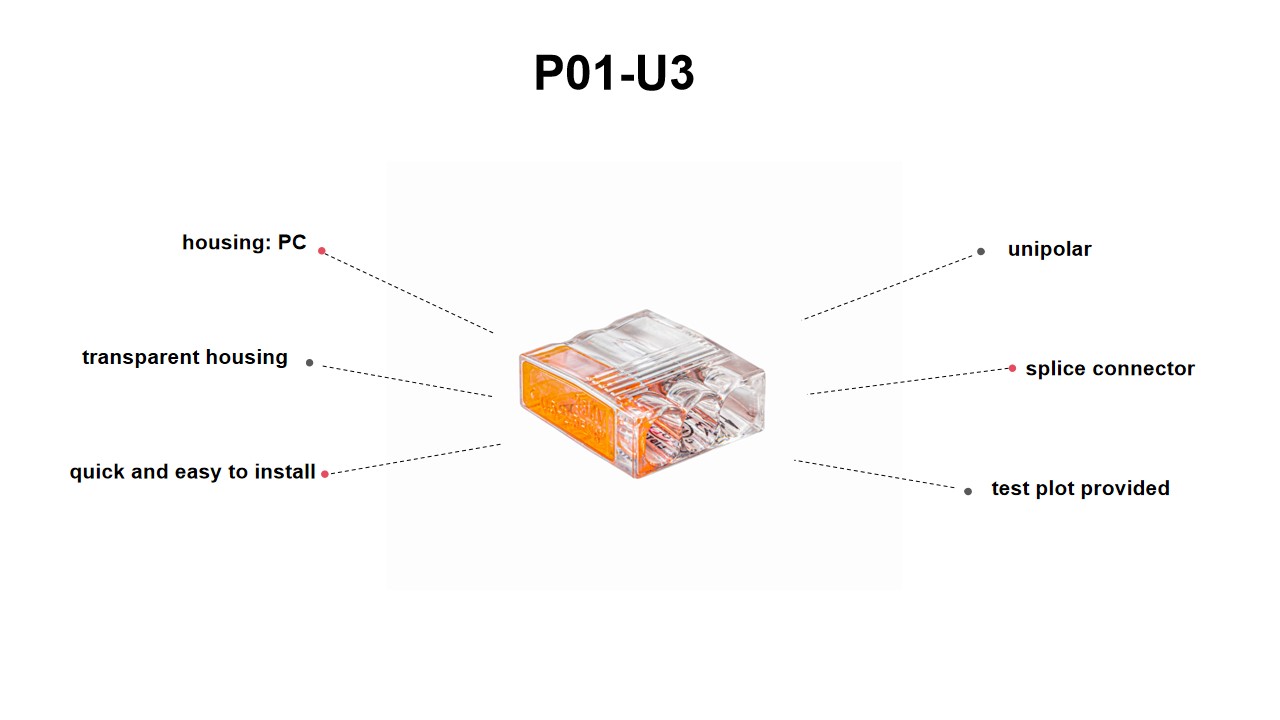

| Item No. | P01-U3 | ||
| Electrical Data | |||
| UL | |||
| Rated Voltage (V) | 600 | ||
| Rated Current (A) | - | ||
| Ambient Temperature | Polycarbonate | 105℃ | |
| Connection Data | |||
| UL | |||
| Cross Section | Solid conductor | AWG16-20 | |
|
 Stranded conductor
 (tin plated)
 |
AWG16-20 | ||
| Strip length (mm) | 11 | ||
| Means of connection | push in | ||
| Rewirable | √ | ||
| Number of terminals | single | ||
| Number of connection points | 3 | ||
| Materials | |||
| Insulation Materials | Designation | Polycarbonate | |
| Flammability class | UL 94V-2 | ||
| Packing Quantity (pcs/carton) | |||
| 6000 | |||

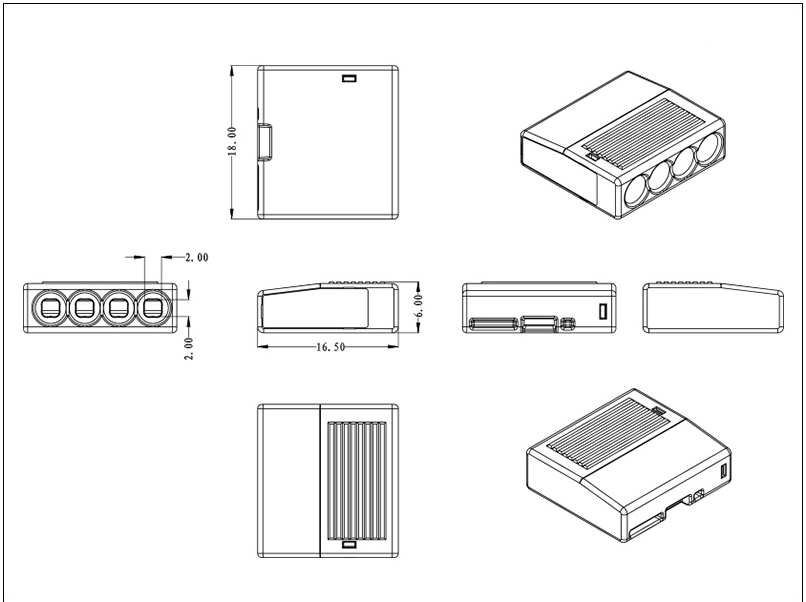

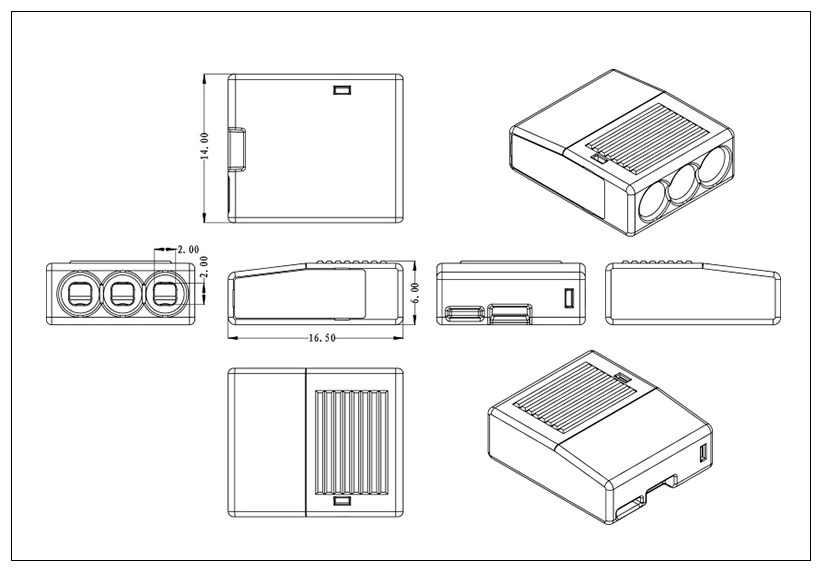

Drawing:
