PCB push wire connectors for Lighting Industry

2 year ago

47 0 

Jiangmen Krealux Electrical Appliances Co.,Ltd.

6 year

Product details

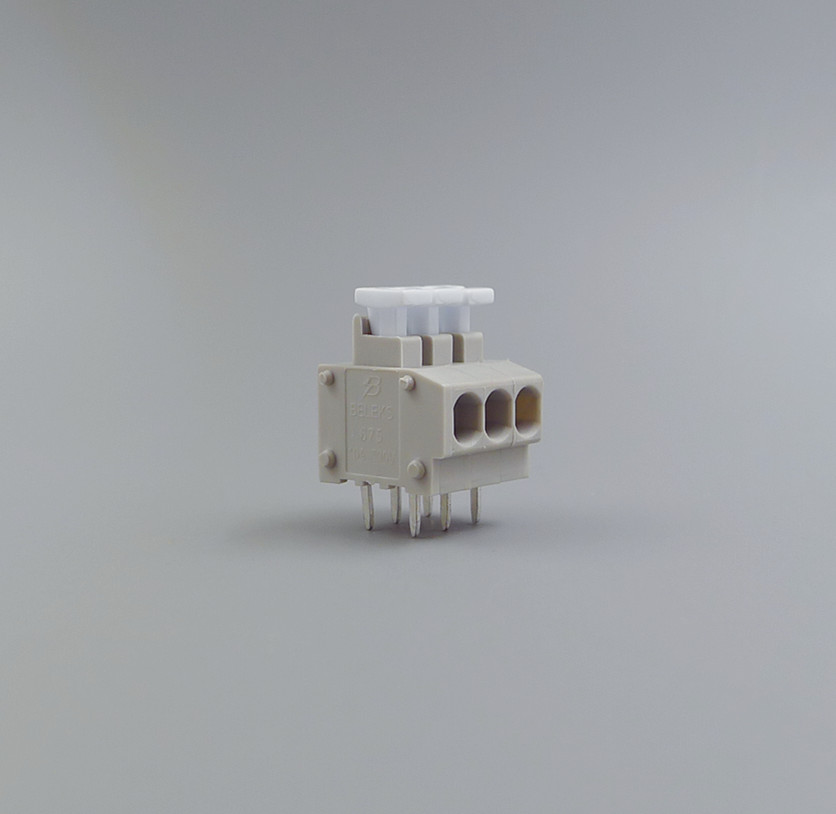

Introducing BELEKS' 675 series mini type PCB push wire connectors, featuring a robust PA66 housing for superior durability and reliability. These compact PCB wire connectors are designed for quick and easy installation, offering a secure push-in connection that simplifies wiring processes. Ideal for space-constrained applications, the 675 series boasts a miniature form factor without compromising on performance. Suitable for a wide range of electronic devices, these push wire connectors are the perfect solution for efficient and reliable PCB connections.
675-1XX

Beleks Commercial Fanuc Board Connector Center Distance of PCB Pins Is 3.81mm (single plug hole, no connectors) 675-103

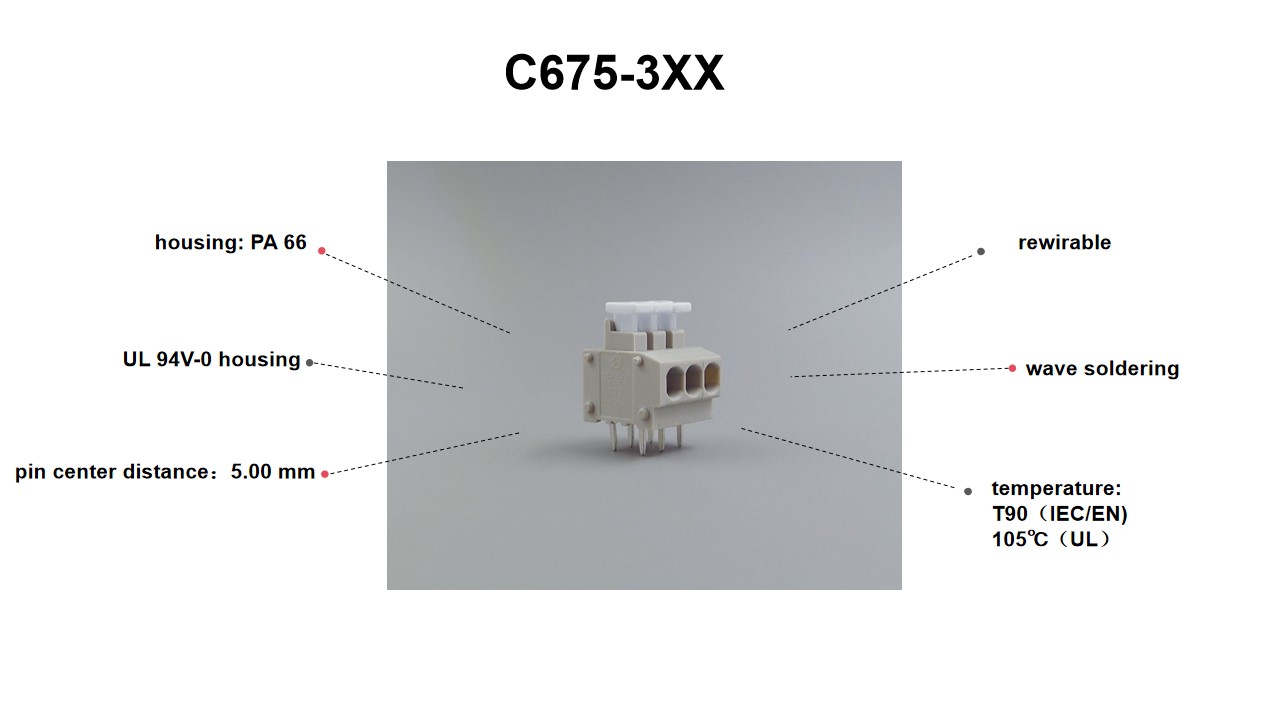

Connector specification:

size of connector:16.00mm×12.60mm×18.60mm

pitch: 3.81mm

Annual Production:

40, 000, 000PCS/Year

Product Parameters

Item No.		675-1XX
Electrical Data
		IEC/EN
Rated Voltage (V)		250
Rated Current (A)		10
Ambient Temperature	Polyamide 66	T90

Connection Data
		IEC/EN
Cross Section	Solid conductor	0.5-1.5mm²
Strip length (mm)		10
Means of connection		push in
Rewirable		√
Number of terminals		multiway
Number of connection points		1-12
Means of Fixing
soldering
Materials
Insulation Materials	Designation	Polyamide 66
	Flammability class	UL 94V-0

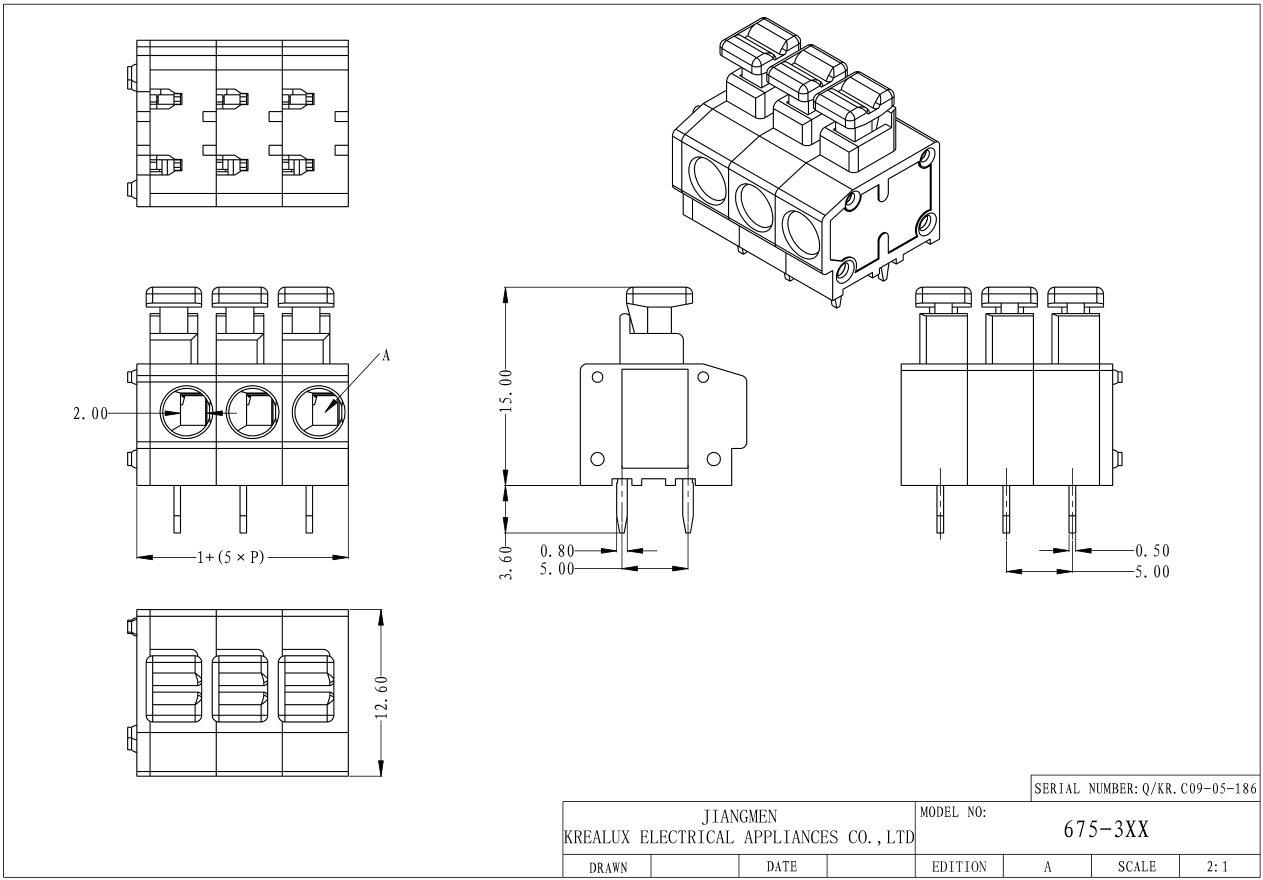

Drawing PCB push wire connectors
