3 Way Quick Exhaust Brass Solenoid Valve
4 year ago
1/8'' 3 Way Quick Exhaust Solenoid Valve 8320G013

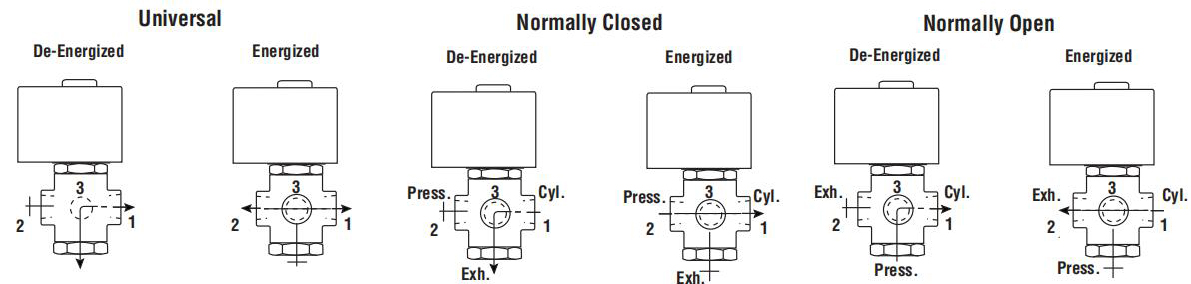

These quick exhaust solenoid valves have three pipe connections and two orifices. When one orifice is open, the other is closed and vice versa. They are commonly used to alternately apply pressure to an exhaust pressure from a valve actuator or a single acting cylinder. These valves can be normally closed, normally open or universal.

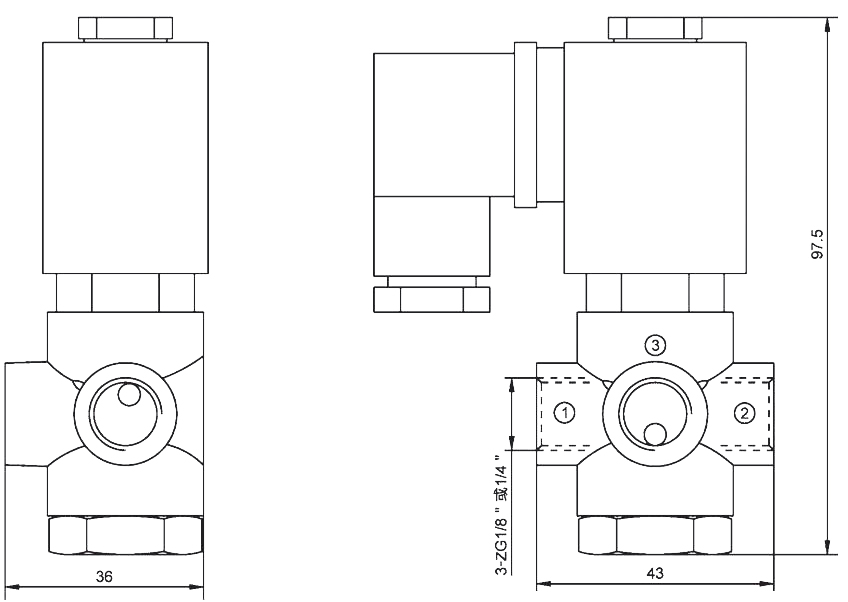

Overall Dimension of 3 Way Brass Solenoid Valve:
Technical Data of 3 Way Brass Solenoid Valve:
|
Model
|
Function
|
Orifice Size
|
Port Size
|
CV
|
Working Pressure (bar)
|
Medium Temperature
|
|
|
AC
|
DC
|
||||||
|
VX31
|
3 Way, Normally Closed
|
1.5
|
1/8'', 1/4''
(G, NPT)
|
0.07
|
13
|
11
|
NBR: -5~+85℃,
EPDM: -5~+150℃,
FKM: -10~+150℃
|
|
2.0
|
0.14
|
11
|
9
|
||||
|
2.5
|
0.21
|
9
|
7
|
||||
|
3.0
|
0.25
|
6
|
4
|
||||
|
4.0
|
0.35
|
3.5
|
2
|
||||
|
VX32
|
3 Way, Normally Open
|
1.5
|
0.07
|
13
|
11
|
||
|
2.0
|
0.14
|
11
|
9
|
||||
|
2.5
|
0.21
|
9
|
7
|
||||
|
3.0
|
0.25
|
6
|
4
|
||||
|
4.0
|
0.35
|
3.5
|
2
|
||||
|
VX33
|
3 Way, Universal Operation
|
1.5
|
0.07
|
13
|
11
|
||
|
2.0
|
0.14
|
11
|
9
|
||||
|
2.5
|
0.21
|
9
|
7
|
||||
|
3.0
|
0.25
|
6
|
4
|
||||
|
400
|
0.35
|
3.5
|
2
|
||||
Brando Factory Brass Solenoid Valve Production Video:
More Solenoid Valves for you to choose:
1. According to Body Material: Brass Solenoid Valve, Stainless Steel Solenoid Valve, Plastic Solenoid Valve
2. According to Valve Operation: Direct Acting Solenoid Valve, Semi Direct Acting Solenoid Valve, Pilot Operated Diaphragm Valve, Pilot Operated Piston Valve.
