2'' Jump Jet Fountain Waterproof IP68 Solenoid Valve

Product Features:

1. Function: 2 Way, Normally Closed

2. Medium: Water

3. Acting Type: Diaphragm Pilot Operated

4. Operate Pressure: 0.03 to 1.6 MPa

5. Seal Material: NBR for -5∽80℃, Viton for -5∽150℃;

6. Port Size: 1 1/2'', 2''; G, NPT are available.

7. Solenoid Coil: 12VDC, 24VDC, 24VAC, 120VAC, 240VAC, 110VAC, 220VAC; IP68, ED100%, Waterproof.

8. Application Examples: Dancing Fountain, Air Blast Water Fountain, Jump Jet Founatain, Music Swing Fountain, Water Curtain Fountain, etc.

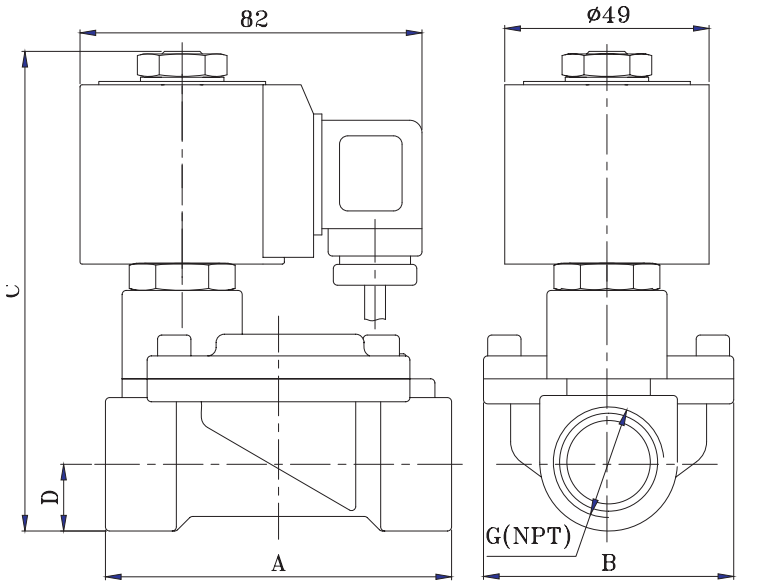

Main Dimension of Fountain Solenoid Valve:

Model	BDF340	BDF350
G/NPT	1 1/2''	2''
A	130	156
B	96	122
C	147	161
D	28	34

Technical Data of Fountain Solenoid Valve:

Model	BDF340	BDF350
Port Size (inch)	1 1/2''	2''
Orifice Size (mm)	40	50
CV	29	48
Working Pressure Range	0.03MPa to 1.6MPa
Diaphragm Material	NBR, VITON, EPDM
Body Material	Stainless Steel, Brass
Function	2 Way, Normally Closed
Operation	Diaphragm Pilot Operated

Brando Solenoid Valve Production Video:

More Fountain Solenoid Valve for you to choose:

1. According to Body Material: Brass Solenoid Valve, Stainless Steel Solenoid Valve, Plastic Solenoid Valve
2. According to Valve Operation: Direct Acting Solenoid Valve, Semi Direct Acting Solenoid Valve, Pilot Operated Diaphragm Valve, Pilot Operated Piston Valve.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
