Product details

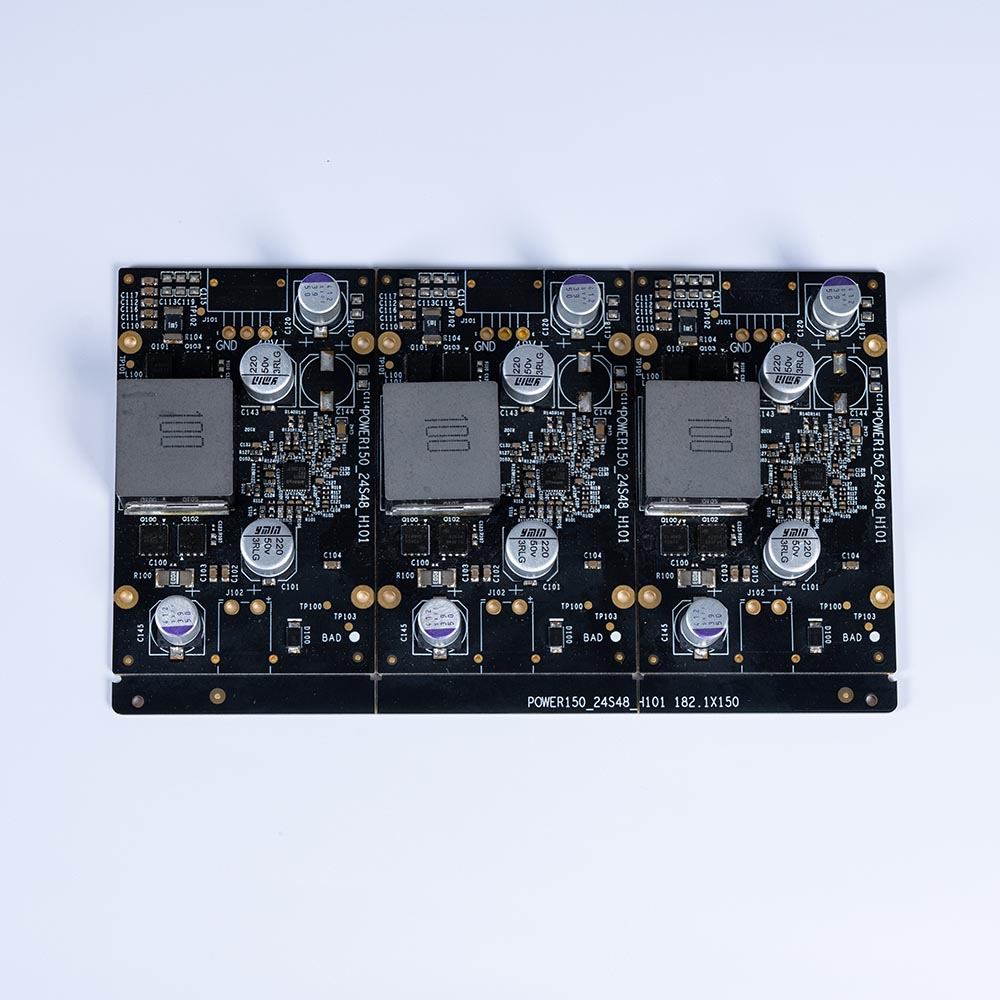

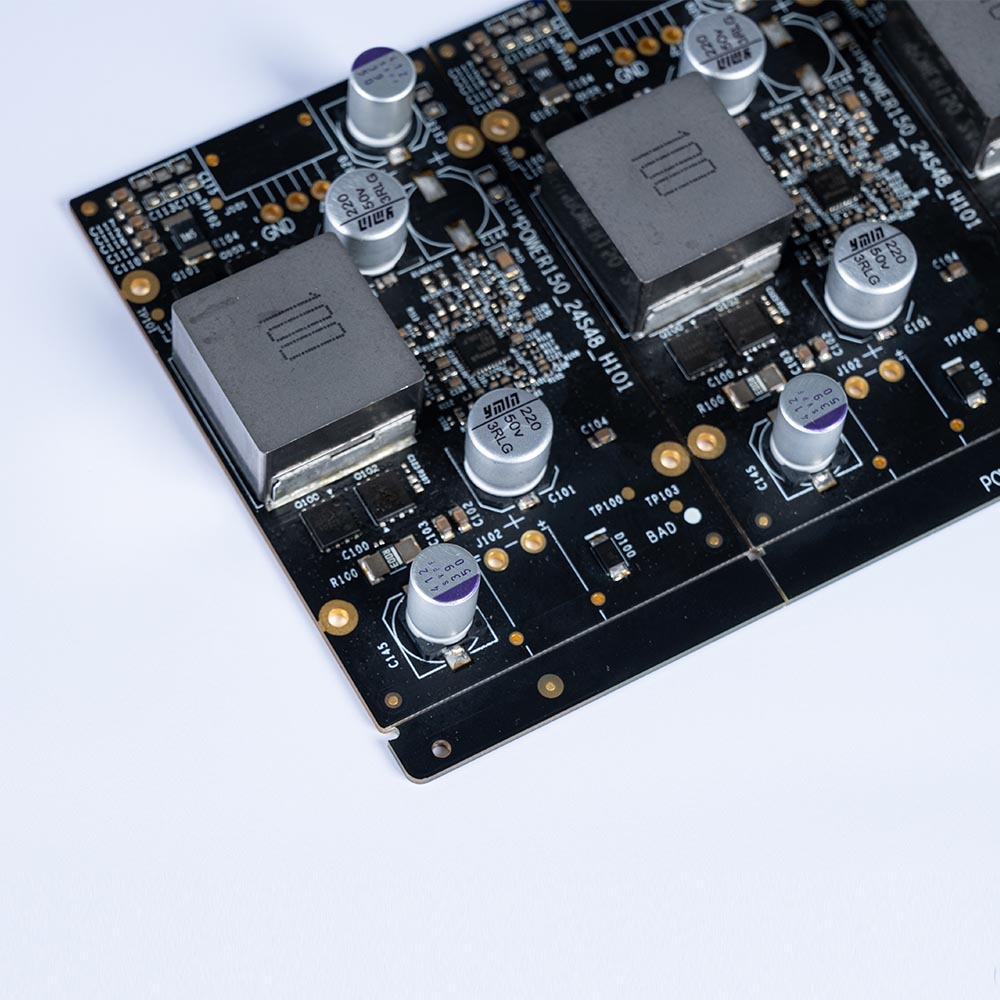

Multilayer Print Circuit Board PCB circuit card Assembley

Model Number:SMT &PCBA One Stop Service

Type:communication pcba

Place of Origin:Guangdong, China

Brand Name:WTT/Jinglin/WISDOM

Copper Thickness:1 oz

Supplier Type:OEM

Product name:SMT&PCBA OEM Service

Layer count:1 to 28 layers

Material type:FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers

Surface finishing:HASL / HASL lead free, Immersion Silver/Gold, OSP, Gold plating

Solder mask:Green/Yellow/Black/White/Red/Blue

Profiling:Punching, Routing, V-CUT, Beveling

Service:One Stop OEM services provided

Certificate ISO9001,ISO 14001

Price:Factory direct price Competitive and transparent

Application:Communications, automobile, consumer electronics

PCB&PCBA Capacity:

1.Material:FR4,( 64322788, 64122791,High Tg FR4, General Tg FR4, Middle Tg FR4), Lead-Free Solder Sheet, Halogen Free FR4, Ceramic Filling Material, PI

Material, BT Material, PPO, PPE etc.

2.Board thickness Mass production:394mil(10mm) Samples: 17.5mm.

3.Surface finish:HASL, Immersion Gold, Immersion Tin, OSP, ENIG + OSP, Immersion Silver, ENEPIG, Gold Finger.

4.PCB Max panel size:1150mm × 560mm

5.Layer:Mass production: 2~58 layers / Pilot run: 64 layers, Flexible PCB: 1-12 Layers.

6.Min hole size:Mechanical drill: 8mil(0.2mm) Laser drill: 3mil(0.075mm)

7.PCBA QC:X-ray, AOI Test, Functional Test

8.Special Process:Buried Hole, Blind Hole, Embedded Resistance, Embedded Capacity, Hybrid, Partial hybrid, Partial high density, Back drilling, and Resistance control.

9.Our service:PCB, PCBA, PCB Clone, Housing, PCB Assembly, Component sourcing, PCB manufacturing from 1 to 64 layers.

10.Sanforized:Buried via, Blind via, Mixed Pressure, Embedded Resistance, Embedded Capacitance, Local Mixed Pressure, Local High Density, Back drill, impedance control.

11.SMT Capacity:7Million Points/Day

12.DIP Capacity:0.35Million Points/Day
