BDA Solenoid Coil For ODE Solenoid Valve
4 year ago
ODE Type Solenoid Coil BDA 24VDC 110VAC 220VAC
This BDA solenoid coil is popularly used for ODE solenoid valves. Solenoid Coil Standard Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 120VAC, 220VAC, 230VAC. Solenoid Coil Standard Power: 8W, 11W, 14.5VA, 15VA, 16VA, 17VA. The solenoid coil is integral in the operation of a solenoid valve. It is what converts the electric current into a magnetic field which in turn allows the operation of the solenoid valve.

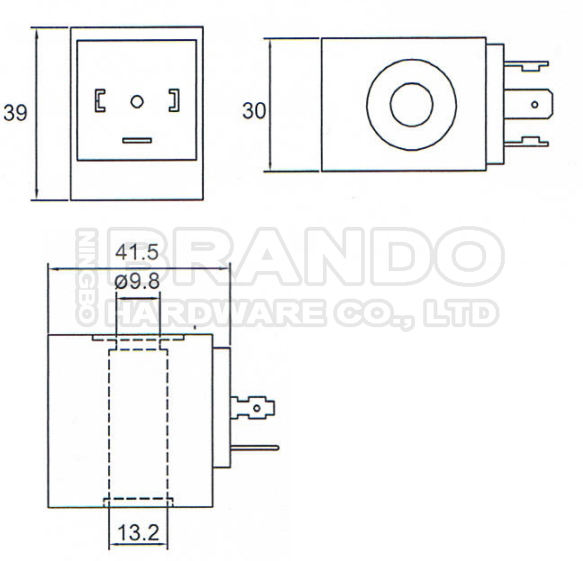

Dimension & Data of BDA Solenoid Coil, Armature:
|
BRANDO Model
|
BB13239027
|
|
Voltage
|
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
|
|
Power
|
8W, 11W, 14.5VA, 15VA, 16VA, 17VA
|
|
Other voltage and power can be customized
|
|
|
Insulation Class
|
F, H
|
|
Connector
|
DIN43650A
|
|

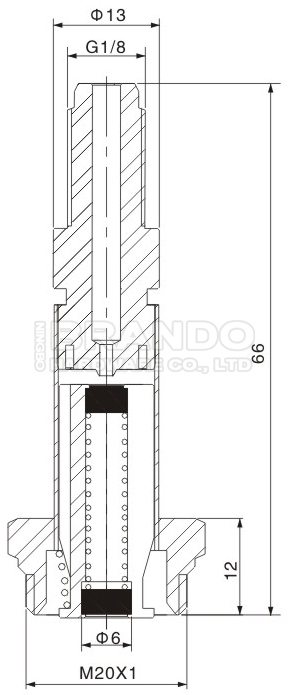

BRANDO Model
|
BAPC313054054
|
|
Function
|
3 Way Normally Closed |
|
Plunger Tube Material
|
Stainless Steel
|
|
Seal Material
|
NBR, EPDM, FKM
|
|
Connection Type
|
Thread
|
Reference Number of BDA Solenoid Coil:
|
Code
|
POWER(VA)
|
AC Voltage
(Volt)
|
Frequency
(Hz)
|
ED
(%)
|
Ambient
Temperature
|
|
|
Irush
|
holding
|
|||||
|
BDA08012AS
|
14.5
|
25
|
12V AC
|
50
|
100
|
-10℃ to +40℃
|
|
BDA08024DS
|
14.5
|
25
|
24V AC
|
50/60
|
100
|
-10℃ to +40℃
|
|
BDA08110DS
|
14.5
|
25
|
110V AC
|
50/60
|
100
|
-10℃ to +40℃
|
|
BDA08223DS
|
14.5
|
25
|
220V AC 230V AC
|
50/60
|
100
|
-10℃ to +40℃
|
|
BDA08380DS
|
14.5
|
25
|
380V AC
|
50/60
|
100
|
-10℃ to +40℃
|
|
BDV08024DY
|
17
|
25
|
24V AC
|
50/60
|
100
|
-20℃ to +60℃
|
|
BDV08110AY
|
15
|
25
|
110V AC
120V AC
|
50
60
|
100
|
-20℃ to +60℃
|
|
BDV08230AY
|
16
|
25
|
230V AC
240V AC
|
50
60
|
100
|
-10℃ to +40℃
|
|
BSA08223DS
|
14.5
|
25
|
220/230V AC
|
50/60
|
100
|
-10℃ to +40℃
|
|
BVA08223DS
|
14.5
|
25
|
220/230V AC
|
50/60
|
100
|
-10℃ to +40℃
|
|
Code
|
Power (W)
|
DC Voltage (Volt)
|
ED (%)
|
Ambient
Temperature
|
|
BDA08012CS
|
8
|
12V DC
|
100
|
-10℃ to +40℃
|
|
BDA08024CS
|
8
|
24V DC
|
100
|
-10℃ to +40℃
|
|
BDV08024CY
|
11
|
24V DC
|
100
|
-20℃ to +60℃
|
