Common-mode inductance

9 month ago

26 0 

Xuzhou Jiuli Electronics Co., Ltd

10 month

Product details

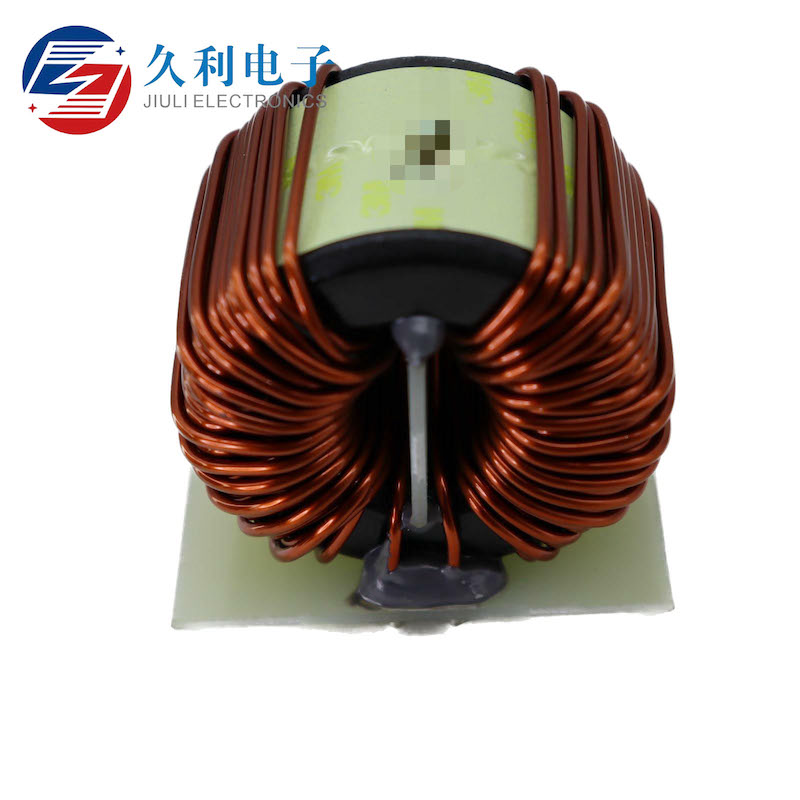

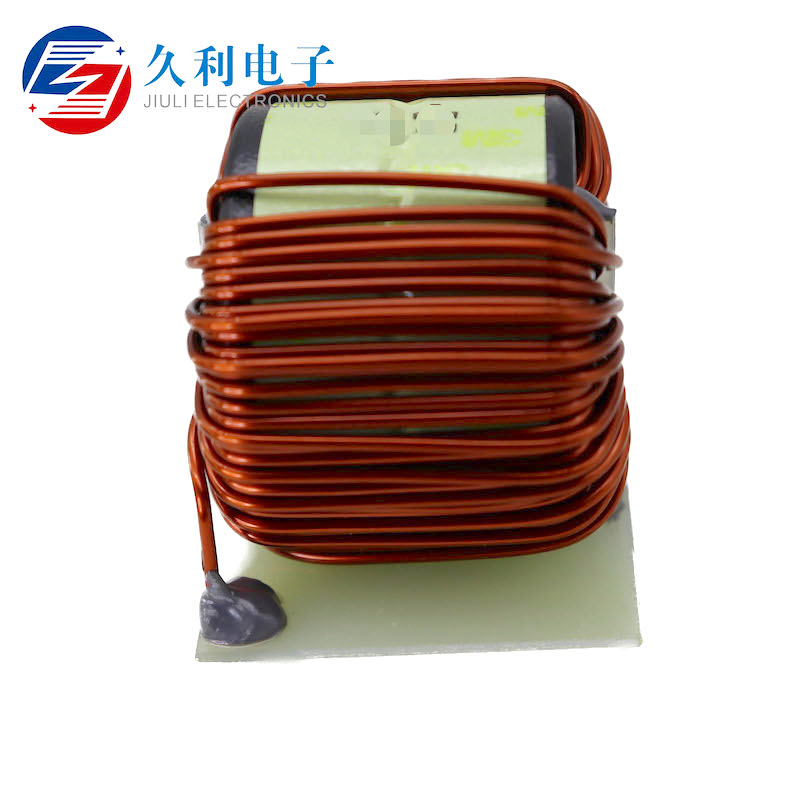

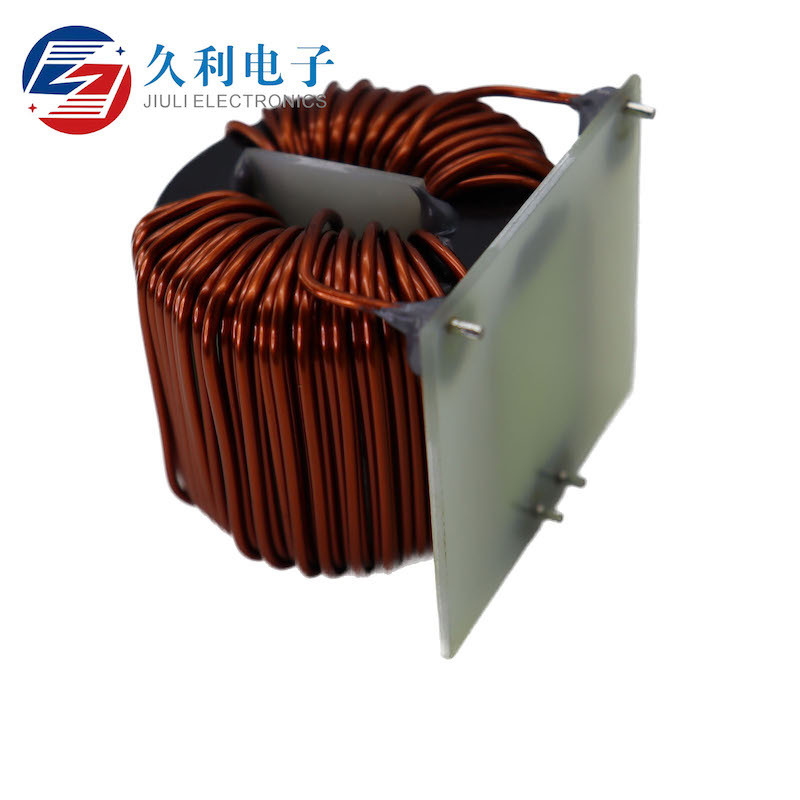

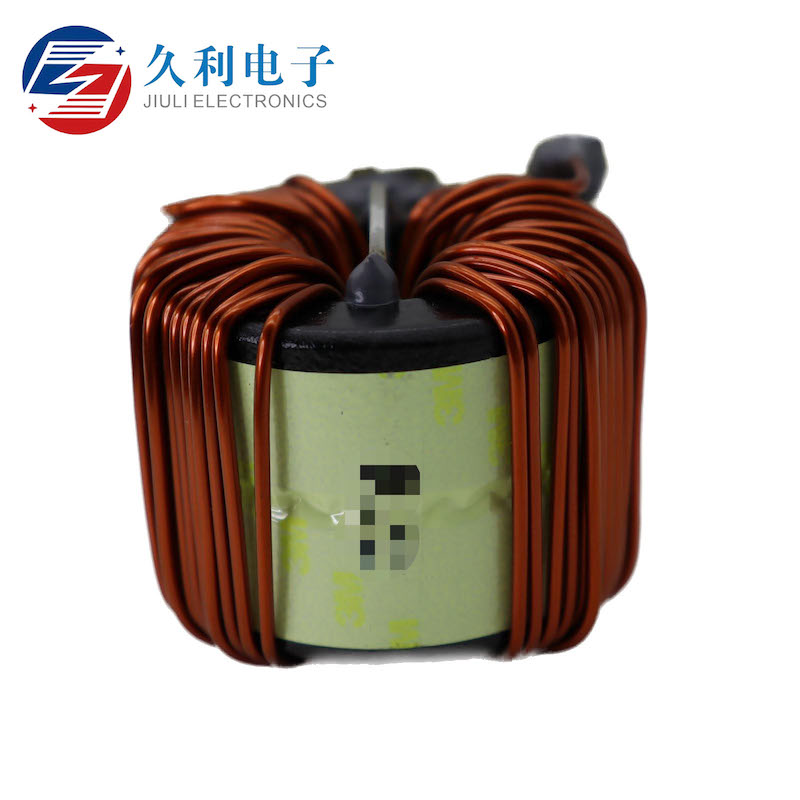

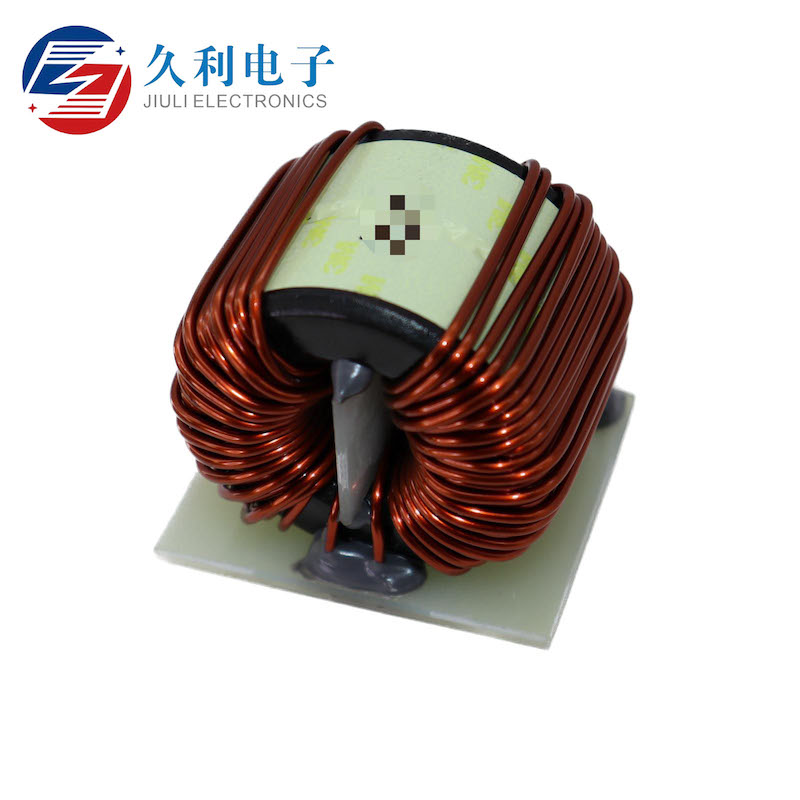

Common-Mode Choke for Power Electronic

Application of common-mode inductors

Common-mode inductors are widely used to improve the EMC of circuits, including power lines, data communications, and motor drives. In power lines such as AC/DC converters and switching power supplies, common-mode inductors can suppress common-mode interference caused by grid fluctuations or switching noise. In data transmission lines such as USB, Ethernet, and HDMI, common-mode inductors can be used to reduce electromagnetic interference and ensure the stability and reliability of data transmission.

How to choose a common-mode inductor?

When choosing a common-mode inductor, we need to consider multiple factors, including inductance value, core material, number of winding turns, and wire diameter. The design of the common-mode inductor needs to ensure that the core will not be saturated under normal working conditions, that it has a sufficiently large impedance to high-frequency interference signals, and that it has a minimum impedance to the signal current at the operating frequency. In addition, the temperature coefficient of the inductor should be small, the distributed capacitance should be small, the DC resistance should be as small as possible, the inductive inductance should be as large as possible, and the inductance value should be stable.

Our main products are Electronic Transformer、Differential Mode Inductor、I-type Inductor、Common Mode Inductor and so on.

Please contact us if necessary. Look forward to your sincere cooperation.
