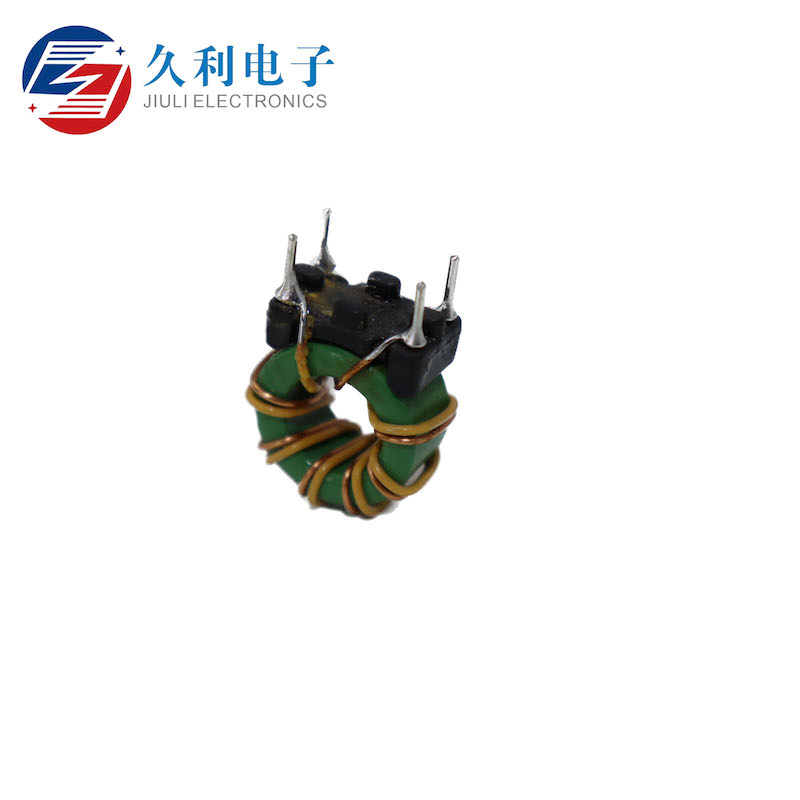

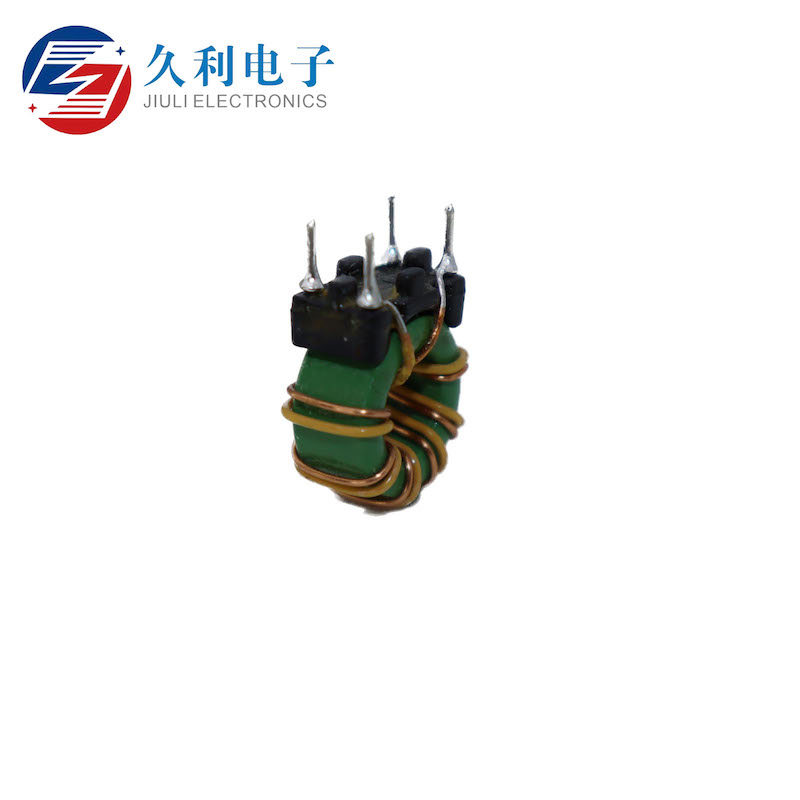

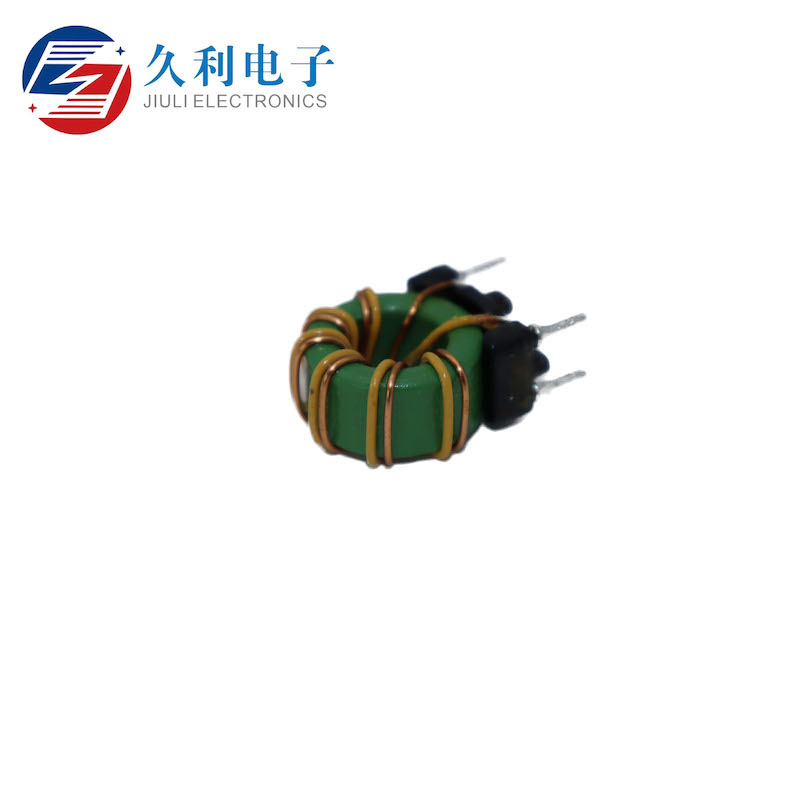

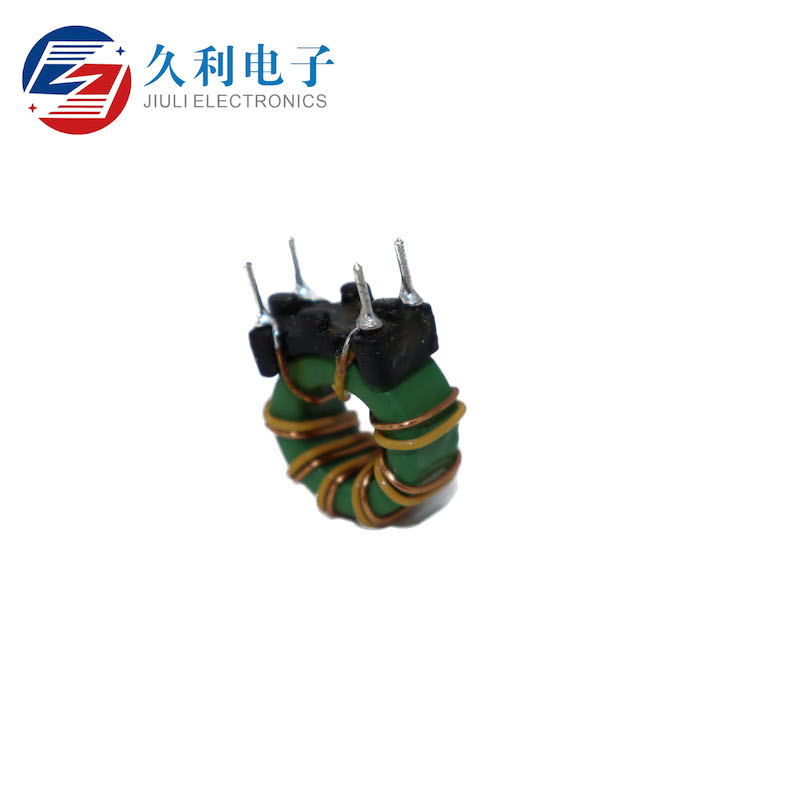

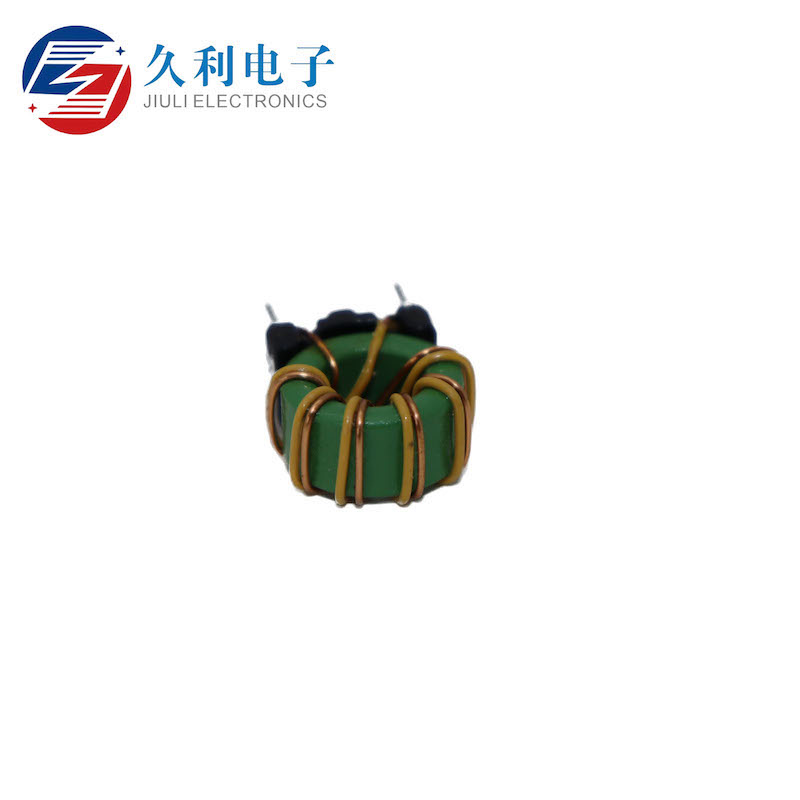

Introduction to common-mode inductors

Common-mode inductors, also called common-mode chokes, are common-mode interference suppression devices with ferrite or amorphous cores. It consists of two coils of the same size and number of turns symmetrically wound on the core, forming a four-port device. An ideal common-mode inductor only suppresses common-mode interference, and has no attenuation or suppression effect on differential-mode signals.

In fact, due to the incomplete symmetry of the coil winding, differential-mode leakage inductance will be generated, so that the common-mode inductor can have a certain suppression effect on differential-mode signals.

Since common-mode chokes can achieve very large common-mode inductance values on very small cores, they are widely used in EMI filters. They play a very important role in suppressing conducted EMI noise. Common-mode inductors are widely used in common-mode interference suppression of switching power supply input L and N lines and high-speed differential signals.

Our main products are Differential Mode Inductor、I-type Inductor、Common Mode Inductor and so on.

Please contact us if necessary. Look forward to your sincere cooperation.

Product Details:
