BAPC309031025

 Product Description:

This solenoid valve armature plunger is fitted for DAIRYMASTER P206 solenoid coil, which is used in DAIRYMASTER electronic pulsator. The armature assembly is the very important component of solenoid valve. When the working current passing through the coil, a magnetic field is generated around the coil. The electromagnetic force drives the moving iron core to overcome the resistance of the spring to move upward, and it is absorbed with the static iron core. When the coil is powered off, the electromagnetic force disappears, and the moving iron core is reset downward under the action of the spring force.

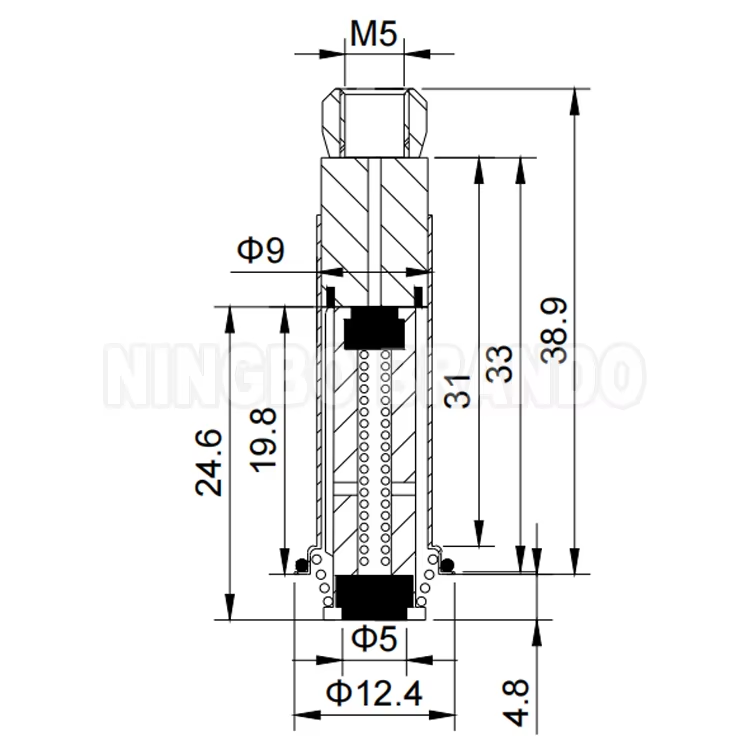

  Main Dimension:

BRANDO Model	BAPC309031025
Function	3 Way Normally Closed
Plunger Tube Material	Stainless Steel
Seal Material	NBR
Connection	Flange with Oring Groove

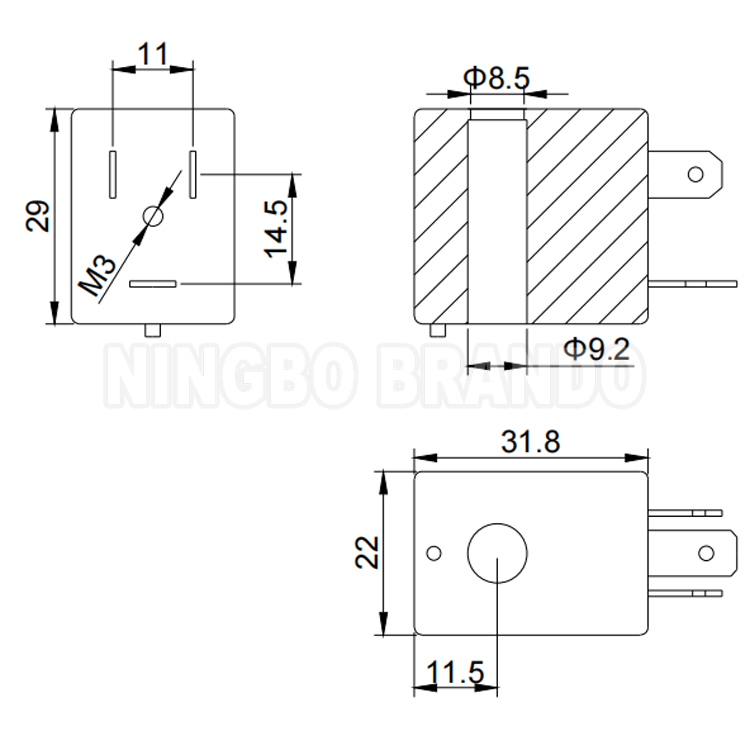

BRANDO Model	BB09029048
Voltage	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Power	2W, 3W, 6W, 7W, 7.5W,  2.5VA, 5VA, 7VA, 8VA
Other voltage and power can be customized
Connector	DIN43650B
