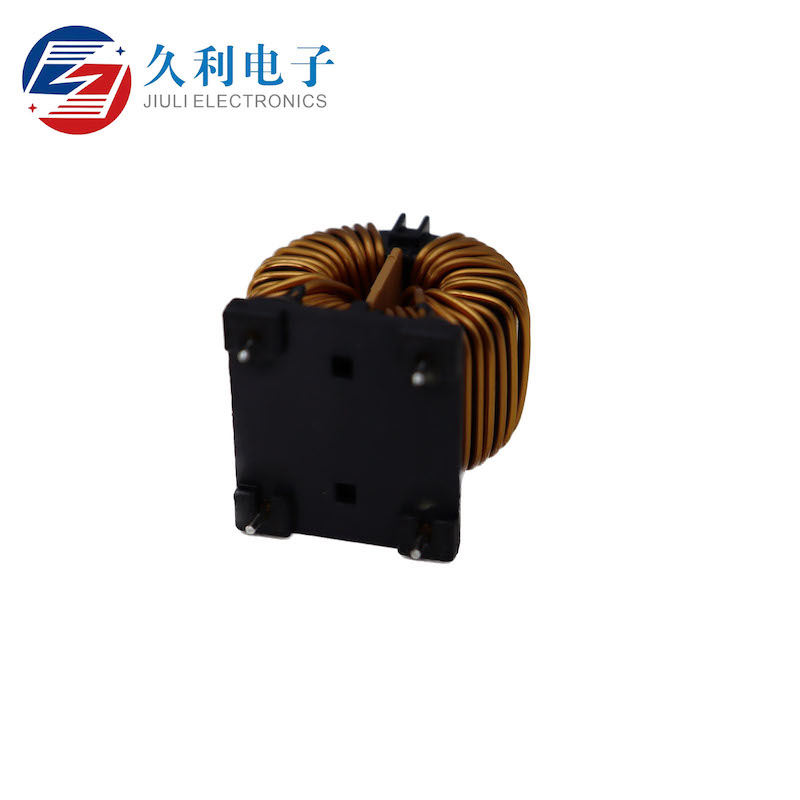

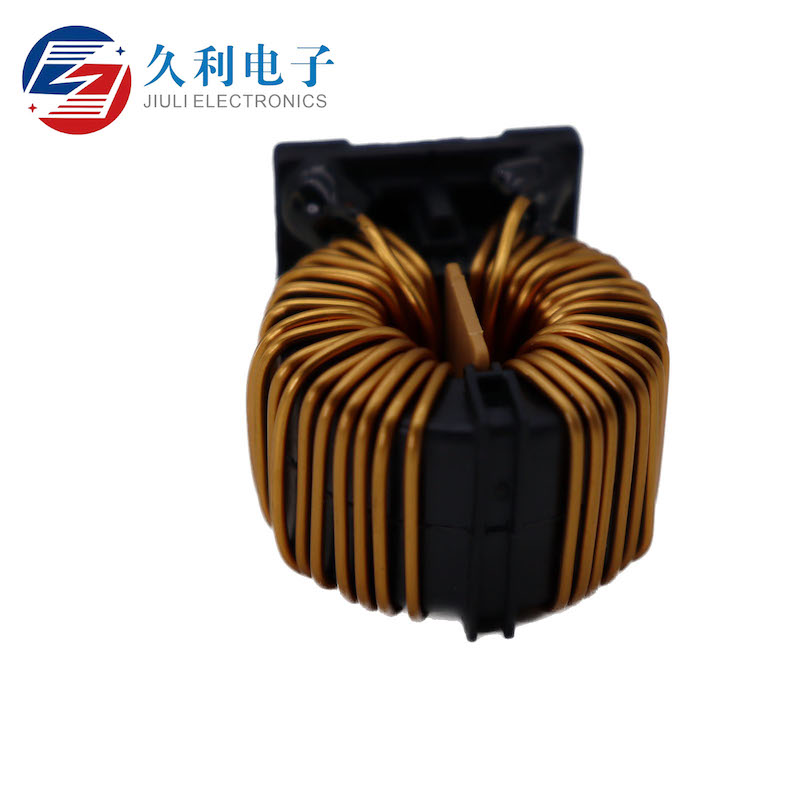

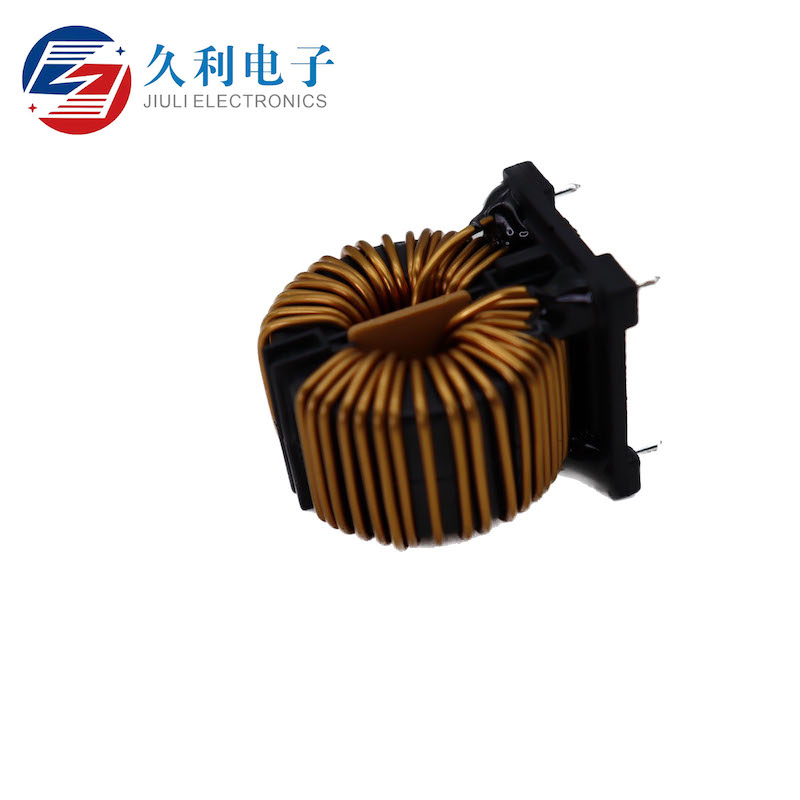

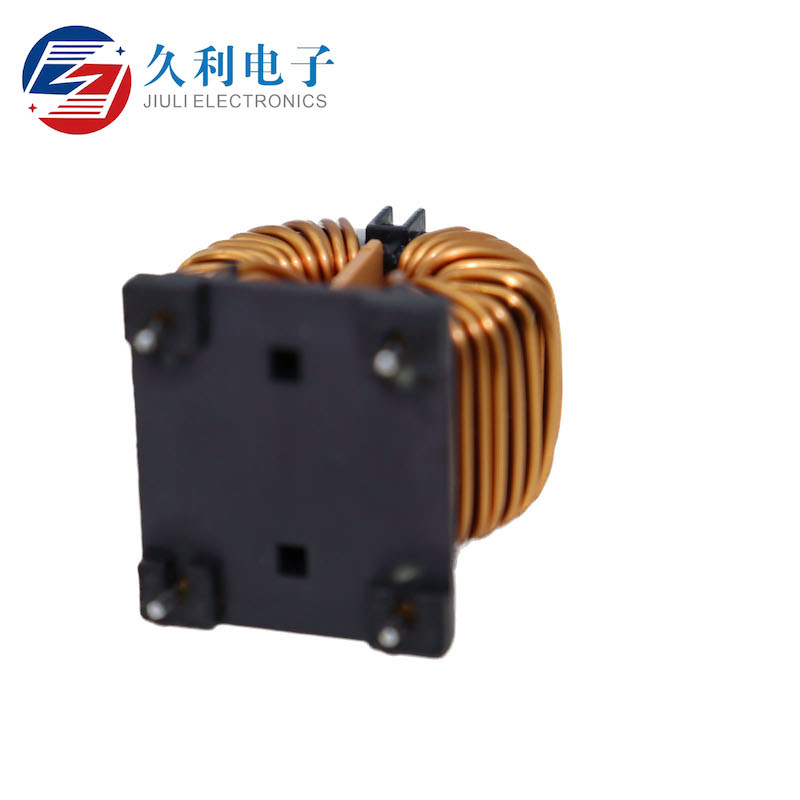

Common-mode inductance

11 month ago

31 0 

12 month

Product details

An special inductive component

A common mode inductor is an inductive component that plays an important role in circuit design and electronic equipment manufacturing, and is usually used to suppress common mode interference in circuits. Common mode interference refers to the interference signal that affects two signals in the circuit at the same time, and this interference usually comes from the external environment or other circuits.

In order to eliminate the low common mode and RF noise of the power line, the common mode choke coil is connected in series with the live (L) and neutral (N) lines in the filter circuit. The input lines of some power supplies are designed around a magnetic core, which can be regarded as a basic common mode choke. It has a ring and square shape, similar to a transformer, and some bare coils can be seen.

The noise between the L/N line and the ground line E is called common-state noise, while the noise between the L and N lines is called normal noise. The fundamental purpose of EMI filters is to eliminate and block these two types of noise.

Our main products are Electronic Transformer、I-type Inductor、Common Mode Inductor and so on.

Please contact us if necessary. Look forward to your sincere cooperation.
