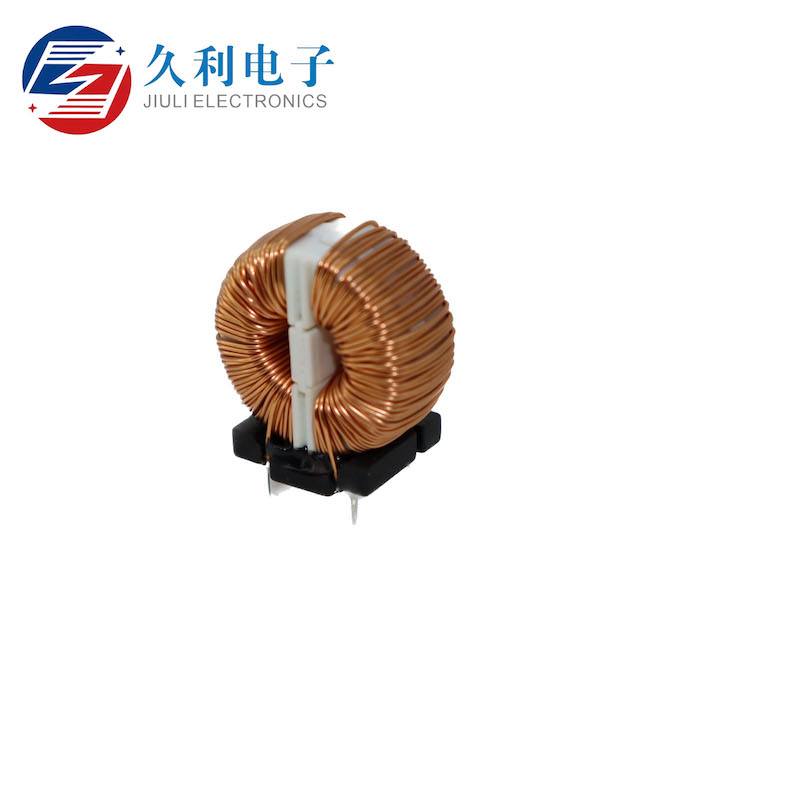

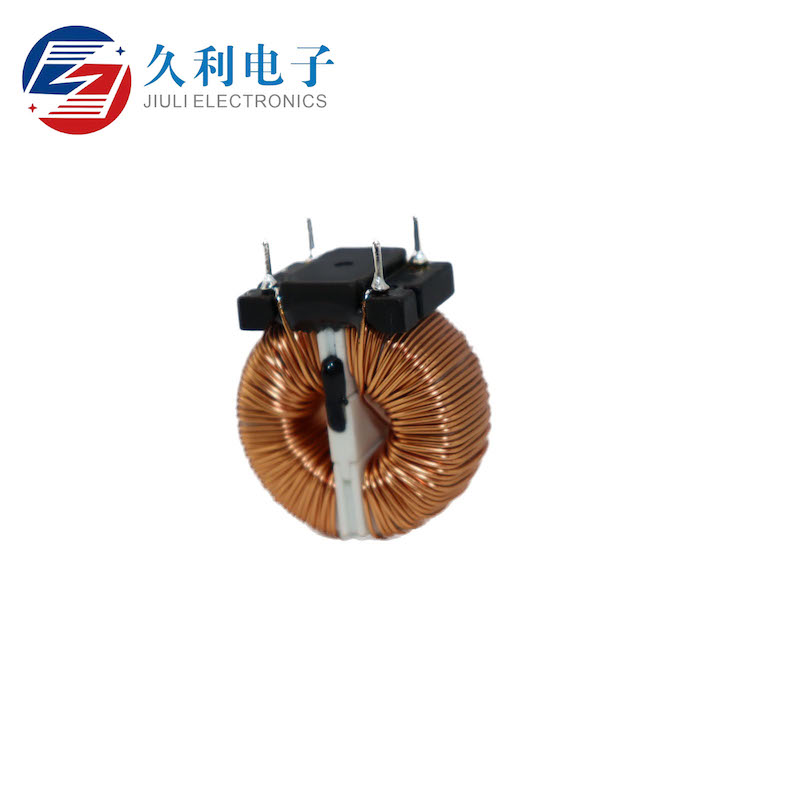

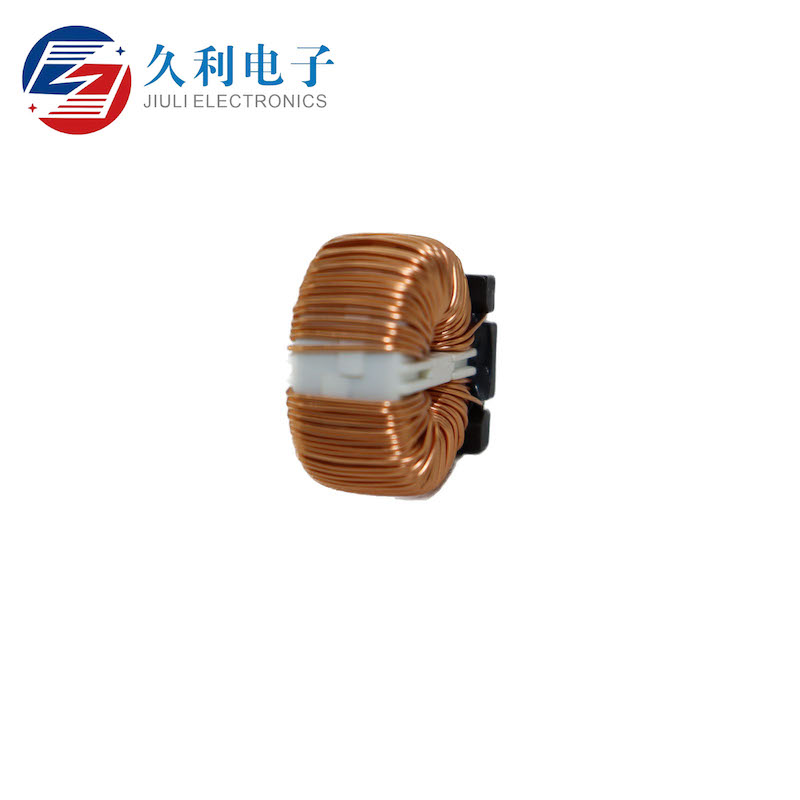

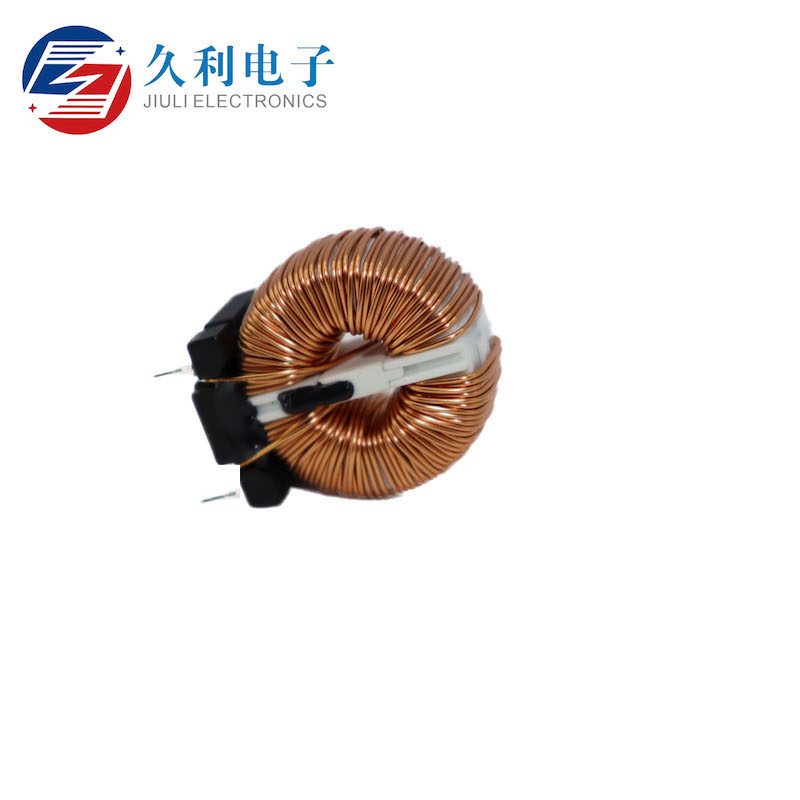

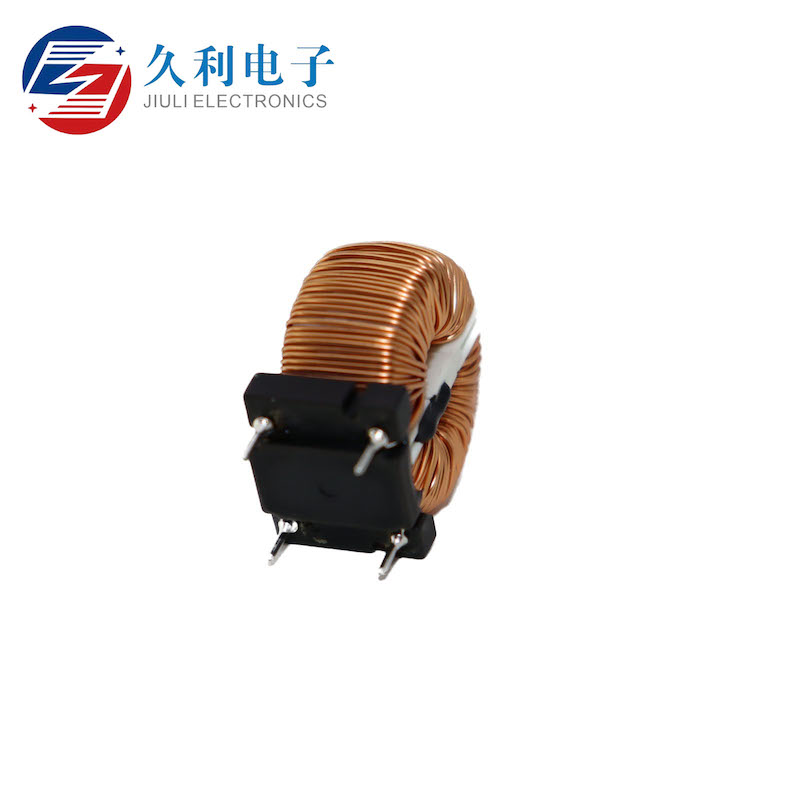

Common-mode inductance

9 month ago

25 0 

10 month

Product details

Application fields of good filter inductance

New design filter inductance is suitable for energy storage and filtering inductors in switching power supply, because of its high BS value and low loss.Compared with iron powder core and ferrite with the same volume and magnetic permeability, it has higher energy storage capacity. More widely used in AC inductors, output inductors, rotary transformers, pulse transformers, power factor positive circuits.

Characteristics of high performance filter inductance

●High permeability

●Low loss

●Magnetostriction coefficient is close to zero

●Curie temperature is high

The working principle of common mode inductors

According to the right hand helix theorem, when the differential mode current flows through the common mode inductor, two magnetic fields cancel each other out. When the common mode current flows through the common mode coil, two mutually reinforcing magnetic fields are generated, which increases the impedance of the entire coil and attenuates the common mode current.

WHY CHOOSE US:

Xuzhou Jiuli Electronics Co., Ltd. was founded on April 30, 2005, is a long-term engaged in inductors, transformers, linear electronic components manufacturing, sales of large enterprises, headquartered in Suining County Qiuji town Wanglin village, the company has about 300 employees in the production of electronic components has a very deep background and rich experience.

Our main products are Electronic Transformer、High-frequency Transformer、Switching Power Supply Transformer、Common Mode Inductor and so on.Please contact us if necessary. Look forward to your sincere cooperation.
