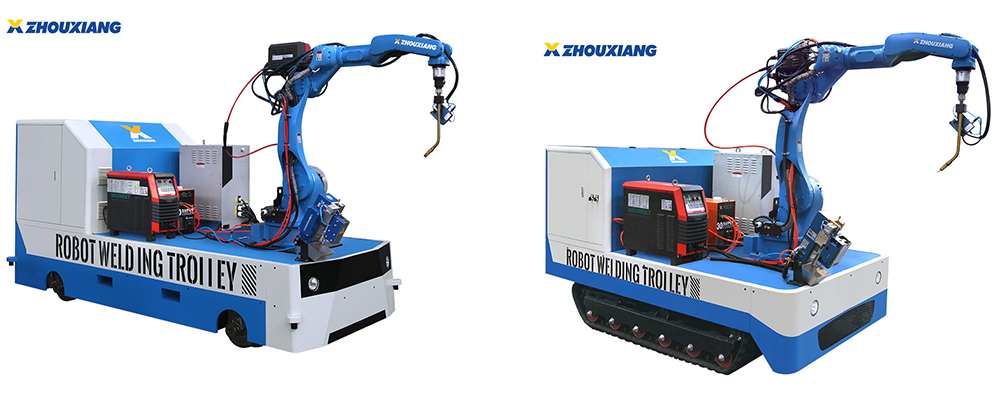

1128AGV mobile intelligent welding robot

10 month ago

5 0 

Wuxi Zhouxiang Complete Set of Welding Equipment Co., Ltd.

4 year

Product details

Products Description

Performance characteristics Structure: Tracked AGV carts usually use chains or tracks as transmission devices, while wheeled AGV carts use wheels as moving parts. Applicable environment: Tracked AGV carts are suitable for various ground conditions, including uneven ground, muddy ground, etc. They can work in harsh environments such as factory workshops, warehouses, etc. Wheeled AGV carts are more suitable for driving on flat ground, such as offices, hospitals, etc.O Flexibility: Tracked AGVs have less flexibility and a larger turning radius, making them unsuitable for working in narrow spaces. Wheeled AGVs are more flexible and can move freely in narrow passages and spaces. Speed and efficiency: Generally speaking, wheeled AGVs are faster and more efficient. Tracked AGVs speed are slower but can carry heavier cargo.

Parameter

Total power	50KVA
Working power supply	3X380V 50Hz 3-phase 5-wire system 3P,380V,50Hz
Working power supply mode	Coll cable power supply
Machine weight	2500Kg
Dimension	3000mmX1500mmX2400mm
Robot model	CRP2010A
Welding power source	NBC500RP Plus Aotal NBC500RP Plus
Visual point cloud accuracy	0.1mm
Vision software	TracerStudio
Moving drive	Steering wheel type
Operation type	Remote control
Moving speed	2.2km/h
Environment temperature	0℃-+45℃
Relative humidity	≤90%RH(non-condensing)

Why Choose Us

Wuxi Zhouxiang Complete Set of Welding Equipment Co.,Ltd,founded in 1991,located in Wuxi city, about 100km from Shanghai.We have fixed assets of 150 million yuan,cover an area of 160,000 m2, staff 500 people,including more than 100 engineering and technical personnel.Our company was certified to ISO9001 Quality System Certification firstly in the industry and many products were certified to China Compulsory Certification(CCC).Our products sell well at home and abroad,including Europe,America,Southeast Asia,Middle East and other countries. Zhouxiang products mainly include cnc cutting machine,H beam production line,box beam production line, welding manipulator, welding rotator, welding positioner, milling machine, shot blasting machine, plate rolling machine, profile bending machine and fiber laser cutting machine etc.We have high sincerity to do business with customers all over the world and establish good friendships.
