BB09030027
4 year ago
CNOMO 30mm Solenoid Valve Coil 24VDC 110VAC 220VAC
This solenoid coil is same with AMISCO EVI 30/9, which is popularly used in CNOMO 30mm pneumatic solenoid valves. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC. Power: 2W, 3W, 6W, 7W, 7.5W, 2.5VA, 5VA, 7VA, 8VA. CNOMO direct solenoid valves are poppet valves 3 ways, ready to be assembled on the 06-05-80 CNOMO standard base. Available in the normally closed and normally opened version with or without manual operator. As standard, manual operator works with push and push+turn function in order to satisfy all needs.

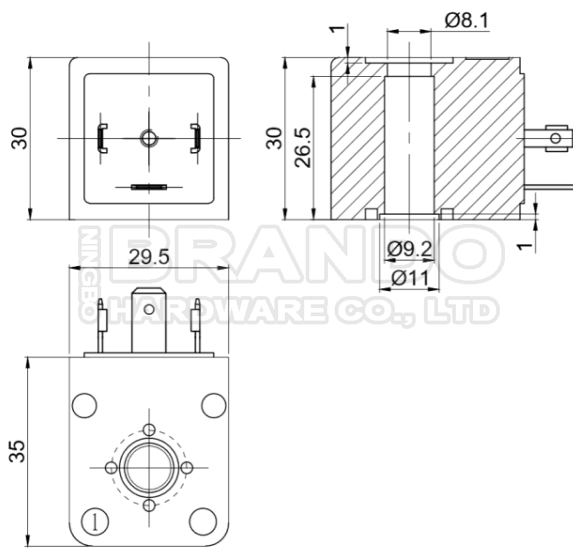

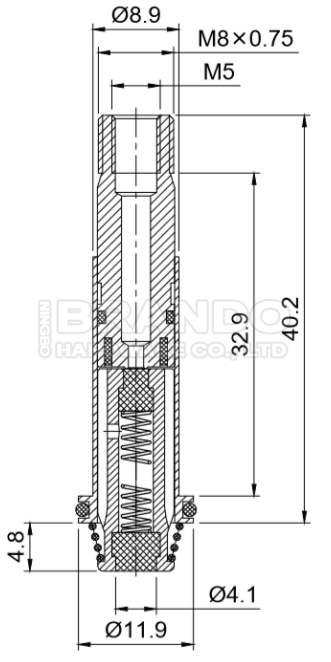

Dimension and Data of CNOMO Solenoid Valve Coil, Armature:
|
BRANDO Model
|
BB09030027
|
|
Voltage
|
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
|
|
Power
|
2W, 3W, 6W, 7W, 7.5W,
2.5VA, 5VA, 7VA, 8VA
|
|
Other voltage and power can be customized
|
|
|
Connector
|
DIN43650A
|
|
Insulation Class
|
F, H
|
|
BRANDO Model
|
BAPC308932018
|
|
Function
|
3 Way Normally Closed
|
|
Plunger Tube Material
|
Brass
|
|
Seal Material
|
NBR, EPDM, FKM
|
|
Connection Type
|
Flange With O-ring Groove
|
BRANDO Solenoid Valve Coils Production Video:
More Pneumatic Products for you to choose:
 |
 |
 |
 |
|
Pneumatic Solenoid Valve |
Air Pilot Pneumatic Valve | Push Pull Air Valve | Hand Level Air Valve |
 |
 |
 |
 |
| Pneumatic Food Pedal Valve | Pneumatic Hose Fitting | Filter Regulator Lubricator | Pneumatic Cylinder |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
