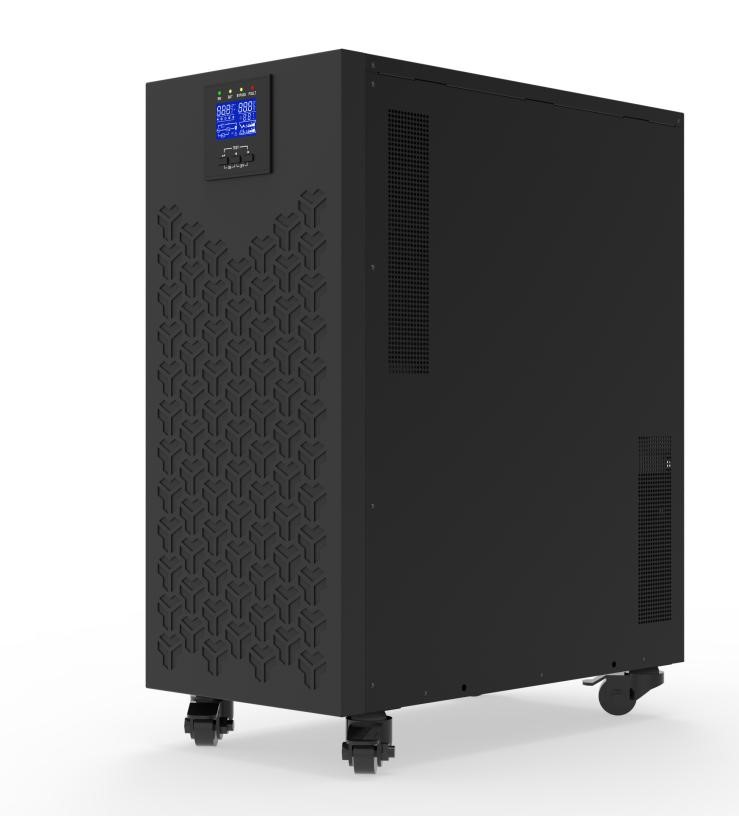

HP31 series Tower Online UPS 10-20kVA

HP31 Series High Frequency Online UPS

10/15/20kVA    3Phases Input/1Phase Output

The HP31 Series High Frequency Online UPS (10/15/20kVA, 3-Phase Input/1-Phase Output) is essential for data centers and offices. It provides uninterrupted power for servers and network equipment, protecting against outages with True Online Double Conversion technology. In office settings, it safeguards workstations while offering real-time monitoring through an LCD/LED display. With advanced PFC technology, it enhances energy efficiency and minimizes failure risks. Additionally, its generator connection capability provides flexibility during outages, making the HP31 Series a vital asset for critical power needs.

◆Application

IDC(Internet Data Center), network, servers and workstations, control system, communication system, office , PC etc

●True Online Double Conversion technology

●Wide input voltage range

●DSP based technology

●Advanced PFC technology,input PF>99%

●Lighting and surge protection

●LCD/LED display

●Support generator connection

●Support 3/1 and 1/1 configuration

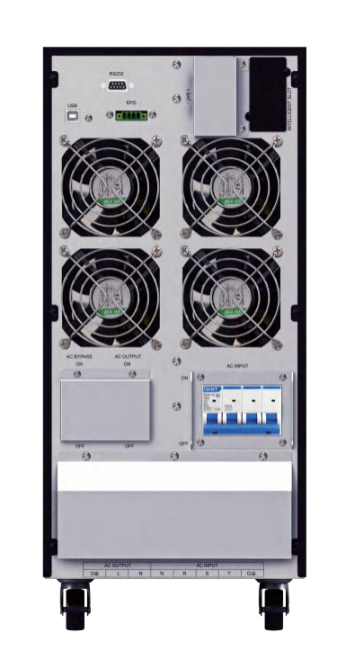

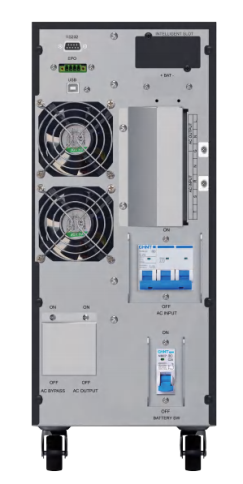

◆Rear Panel

1.RS232 port

2.EPO /ROO (Remote On Off) port

3.USB port

4.Intelligent slot for SNMP/MODBUS/dry contact card etc.

5.Battery connector

6.Input and output terminal block

7.AC input switch

8.Battery switch

9.AC output switch

10.Maintenance bypass switch

3/1 10K                         3/1 20KL

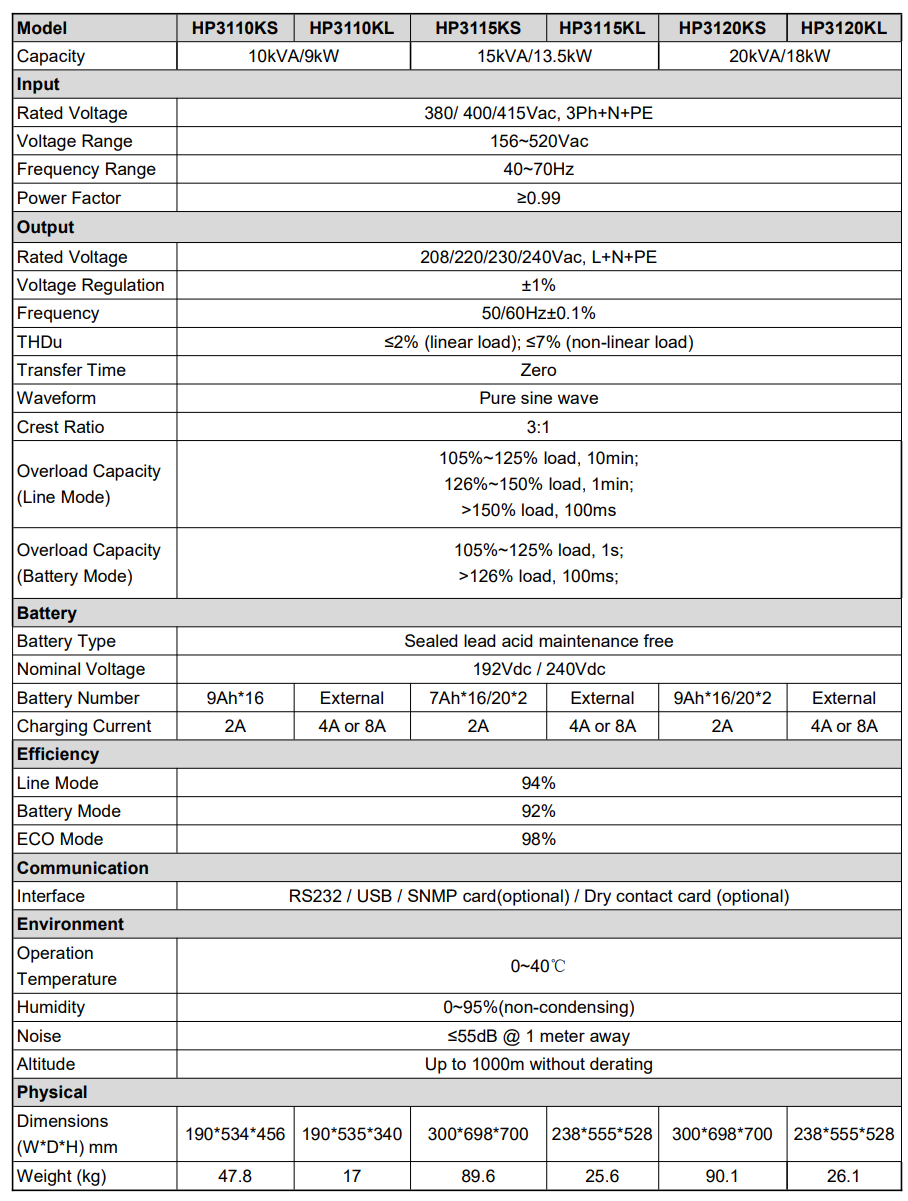

◆Specification

All specifications are subject to change without prior notice.
