HPL Series Hybrid Solar Charge Inverter 1012k

HPL Series Hybrid Solar Charge Inverter 10/12kW

The HPL 10/12kW Hybrid Solar Charge Inverter offers an amazing experience. Its high-efficiency MPPT and pure sine wave output ensure stable power. The sleek design and comprehensive features, like parallel operation and multiple communication ports, make installation and usage convenient. A reliable choice for clean energy solutions.

I. Product Features

1. High-Efficiency MPPT Technology: The advanced MPPT technology has an efficiency of up to 99.9%, enabling efficient utilization of solar energy.
2. High-Quality Power Output: It outputs high-quality pure sine wave AC power, ensuring stable and clean power supply for various electrical appliances.
3. Comprehensive Safety Protection: From hardware to software, it provides comprehensive security measures to protect the system and users.
4. Aesthetic Industrial Design: With an industrial design that features a modern aesthetic look, it can blend well with different environments.
5. High Charging Current: The charging current can reach up to 220A, facilitating quick charging of batteries.
6. Battery Management System: The exclusive Li-ion battery BMS dual activation system ensures the safe and efficient operation of the battery.
7. Parallel Operation Capability: It allows parallel operation of up to 6 units, increasing the overall power output and flexibility of the system.
8. High PV Input Current: The PV input current can be up to 22 + 22A, suitable for connecting multiple solar panels.
9. High Output Power: The maximum output power is 12kW, meeting the power needs of medium to large households or small commercial applications.

II. Operating Mode

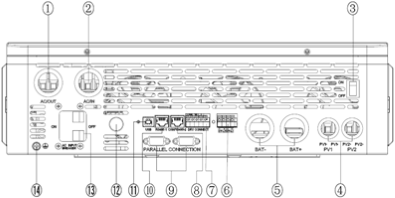

III. Rear Panel

1. AC Output Port: Used to connect the load and supply power.
2. AC Input Port: Connects to the utility grid or generator.
3. ON/OFF Rocker Switch: Controls the power on/off of the inverter.
4. Photovoltaic (PV) Parameters: Displays parameters related to the photovoltaic system.
5. Battery Parameters: Shows information about the battery, such as voltage and state of charge.
6. CT Current Sensing for Self-Consumption (Optional): Can be used to monitor self-consumption current (optional).
7. Dry Contact Port: Can be used for external control or signaling.
8. RS485 - 2/CAN Communication Port: For communication with other devices.
9. Parallel Communication Port (Parallel Module Only): Used for parallel connection communication (only for parallel modules).
10. RS485 - 1 Communication Port: Another communication interface.
11. USB Communication Port: Enables connection with a computer or other USB devices.
12. WiFi Port (Optional): For wireless communication (optional).
13. AC Input Breaker: Protects the AC input circuit.
14. Grounding Screw Hold: Used for grounding connection.

IV. Specification

General

• Parallel Mode: HPL48100 - 500P and HPL48120 - 500P support parallel operation of 1 - 6 units, while HPL48100 - 500 and HPL48120 - 500 do not support parallel operation.
• AC Mode: The rated input voltage is 120(L1/N, L2/N)/240Vac(L1/L2). The input phase voltage range is (85Vac - 140Vac)±2%. The frequency is 50Hz/60Hz (auto detection), and the frequency range is 47±0.3Hz - 55±0.3Hz (50Hz) and 57±0.3Hz - 65±0.3Hz (60Hz). Overload/short circuit protection is provided by a circuit breaker. The efficiency is >95%, and the conversion time (bypass and inverter) is 10ms (typical). AC reverse protection is available, and the maximum bypass phase overload current is 2pole, 63A/63A(L1/L2).

Inverter Mode

• Output Voltage Waveform: Pure sine wave.
• Rated Output Power (VA): For HPL48100 - 500P and HPL48100 - 500, the split-phase rated output power is 10000VA, and the single-phase rated output power is 7600VA (limited by the wiring terminals). For HPL48120 - 500P and HPL48120 - 500, the split-phase rated output power is 12000VA, and the single-phase rated output power is 7600VA (limited by the wiring terminals).
• Rated Output Power (W): Similar to the VA ratings, with the same limitations for single-phase output. The power factor is 1. The rated output voltage is 120Vac (L1/N, L2/N)/240Vac(L1/L2), and the output voltage error is ±5%. The output frequency range is 50Hz±0.3Hz/60Hz±0.3Hz. The maximum efficiency is >91%. Overload protection is provided with different timeouts depending on the load percentage. The peak power for split-phase is 15000VA for HPL48100 models and 18000VA for HPL48120 models, and the same for single-phase. The loaded motor capability is 5HP for HPL48100 models and 6HP for HPL48120 models. Output short circuit protection can protect after continuous short circuit for 1 second. The bypass circuit breaker phase specification is 2pole, 63A/63A(L1/L2).

Battery-related

• Rated Battery Input Voltage: 51.2V (minimum starting voltage 44V). The battery voltage range is 40.0Vdc - 58.6Vdc±0.6Vdc, and settings such as under-voltage alarm, shutdown voltage, over-voltage alarm, and over-voltage recovery can be configured on the LCD screen.
• Power Saving Mode Self-Consumption: When the load is ≤25W, the inverter enters power-saving mode.
• AC Charging: Supports AC charging for lead acid or lithium batteries. The maximum charge current (which can be set) is 120A, and the charge current error is ±5Adc. The charge voltage range is 40 - 58.6Vdc. Short circuit protection is provided by a circuit breaker and blown fuse, and the circuit breaker phase specifications are 2pole, 63A/63A(L1/L2).
• PV Charging: There are 2 MPPT groups. The maximum PV open circuit voltage is 500Vdc, and the PV operating voltage range is 90Vdc - 500Vdc.
