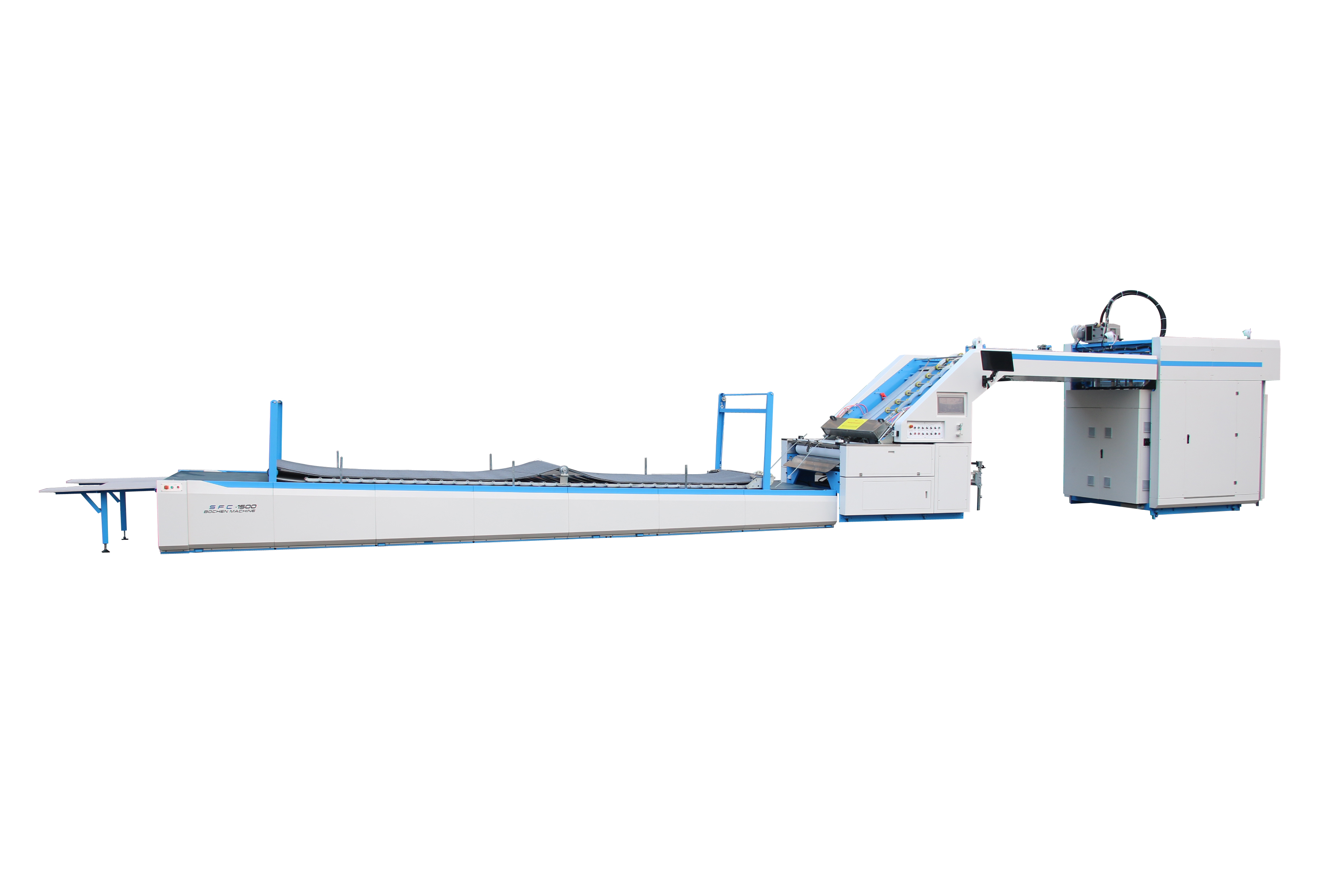

GFS fully automatic flute laminator

GFS Automatic High Speed Flute Laminating Machine

Performance characteristics:

1. Top sheet Overlap feeding+non -stop correction, high speed without losing accuracy. Speed can reach 180meters/min.

2. Bottom sheet belt system with high flow suction adsorption feeding. Use Japan Nitta belt. Lead edge system is option.

3. The front pressure roller is made of new polyfluoroethylene material, which is free to wash, and then reduce the labor strength of the operator.

4. The whole machine has no handle, electric adjustment, automatic detection thickness, reducing the strength of the single -order work, and increasing the effective working time.

5. Because the machine uses overlap feeding, no gap correction without stop, so the unit time output increased by 50%, which greatly reduced the power consumption of the unit time, and it was truly increasing production and energy saving.

6. Adopts top sheet aligner system to ensure high accuracy. Feeding mode can be chosen overlap sheet or separation sheet type.

7.  Digital design realizes automatic adjustment of glue volume. Automatic adjustment of the gap of the gluing roller (automatically according to the thickness of the bottom sheet).

8. The design of large stainless steel anilox roller (160mm in diameter) is stable and high-efficiency, coat evenly and save glue volume.

9. Automatic detection of top and bottom paper, automatic servo correction technology. Make the top paper automatically track and fit the bottom paper, and the accuracy is high.

10. The dual -use lifting platform, we can use the pre-stacker structure to push the pre -pile of paper into the platform. We can also push the stack of paper directly into the platform.

11. The multifunctional rack of the bottom paper are suitable for curved corrugated.

 12. Use a circulating glue system to reduce glue loss and stabilize glue adhesion effect.

13. One -click adjustment of the whole machine (just enter the paper size).

14. Order memory function, one -click to transfer the previous order, convenient and fast.

15. Video monitoring.

SPECIFICATION：
