RCA3-8V5 Solenoid Remote Pilot Valve Enclosure Box RCA 3-8V5 220VAC 110VAC 24VAC 24VDC

5 month ago

5 0 

11 year

Product details

3-8V5 Goyen Type 5 PCS Pilot Valves Enclosure

This is a 3-8V5 (RCA3-8V5) diecast aluminum enclosure with 5pcs RCA3D pilot valves inside. The reference number of this enclosure is RCA3-8V5000-330, RCA3-8V5000-336, RCA3-8V5000-331, RCA3-8V5000-332, 3-8V5000-330, 3-8V5000-336, 3-8V5000-331, 3-8V5000-332, etc. The coil voltage can be 220VAC, 110VAC, 24VAC or 24VDC. The enclosures for non-hazardous locations offer reliable protection for your pilot valves and remote actuators. The enclosures were specifically designed for convenient piloting of dust collector cleaning system pulse jet valves.

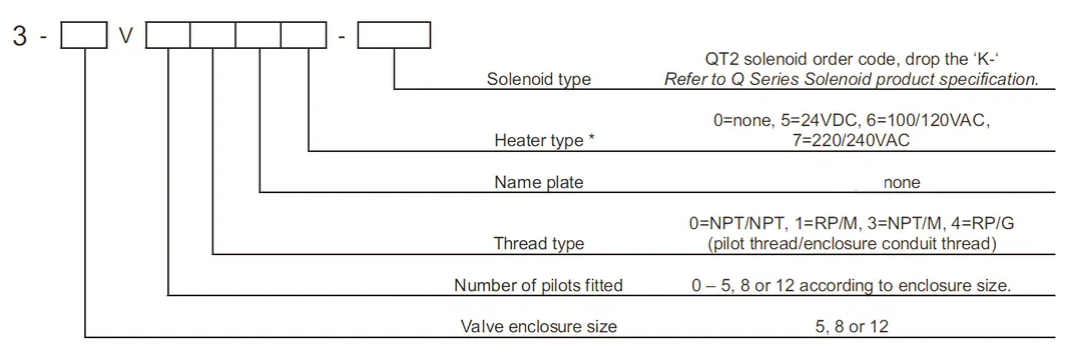

Ordering Code:

ordering code

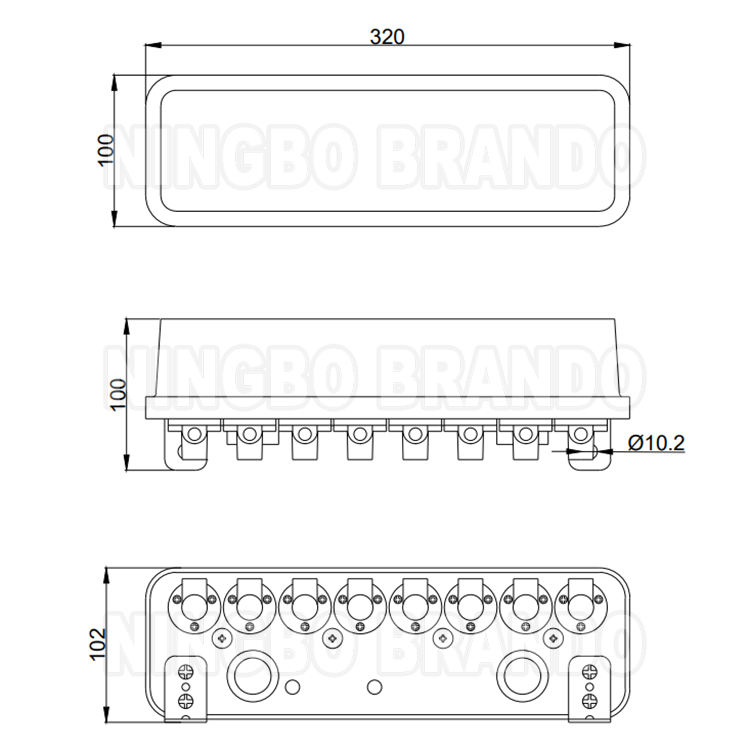

Main Dimension:

RCA3D Valve Options:

Model No	Port Size	Coil Type	Voltage	Power
RCA3D0-330 (Old RCA3D2-T-QT/1392B)	1/8'' NPT	QT2 (Screw / Spade)	200/240V 50/60Hz	17.4/22.6VA
RCA3D0-331 (Old RCA3D2-T-QT/1004B)			100/120V 50/60Hz	15.2/149.7VA
RCA3D0-332			24V 50/60Hz	23.1/17.2VA
RCA3D0-333			240V DC	24W
RCA3D0-334			110V DC	24W
RCA3D0-335			48V DC	20W
RCA3D0-336 (Old RCA3D2-T-QT/764B)			24V DC	20W
RCA3D0-337 (Old RCA3D2-T-QT/1295B)			12V DC	20W
RCA3D1-330 (Old RCA3D2-T-QT/880B)	1/8'' BSPP		200/240V 50/60Hz	17.4/22.6VA
RCA3D1-331 (Old RCA3D2-T-QT/869B)			100/120V 50/60Hz	15.2/149.7VA
RCA3D1-332 (Old RCA3D2-T-QT/1117B)			24V 50/60Hz	23.1/17.2VA
RCA3D1-333			240V DC	24W
RCA3D1-334			110V DC	24W
RCA3D1-335			48V DC	20W
RCA3D1-336 (Old RCA3D2-T-QT/1051B)			24V DC	20W
RCA3D1-337			12V DC	20W

Our Production:

pulse valve production

Related Products:


Solenoid Coil	Solenoid Armature	Pilot Valve	3-12V12 Enclosure

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
